| Place of Origin: | China |
| Brand Name: | Emerson |
| Certification: | UL |
| Model Number: | EK165 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per week |
| Connection: | Flare | Max Working Pressure: | 680PSIG |
|---|---|---|---|
| Oil: | CFC,HCFC,HFC | Application: | Refrigeration |
| Condition: | New | Name: | Liquid Line Filter Drier |
| High Light: | HFC Liquid Line Filter,680PSIG Liquid Line Filter,SAE Flare Liquid Line Drier |
||

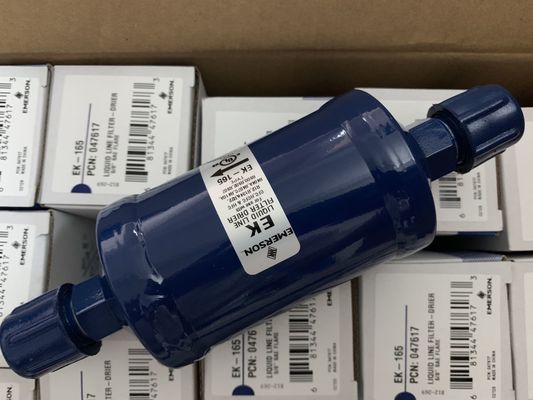

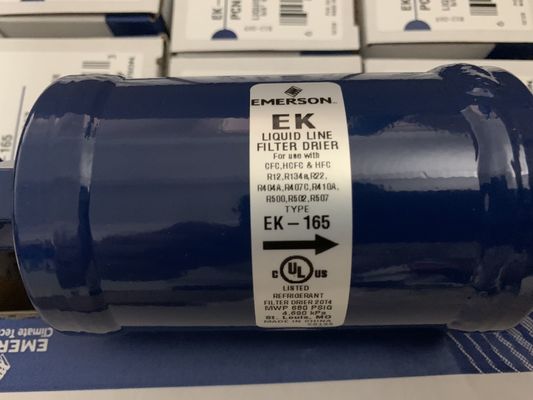

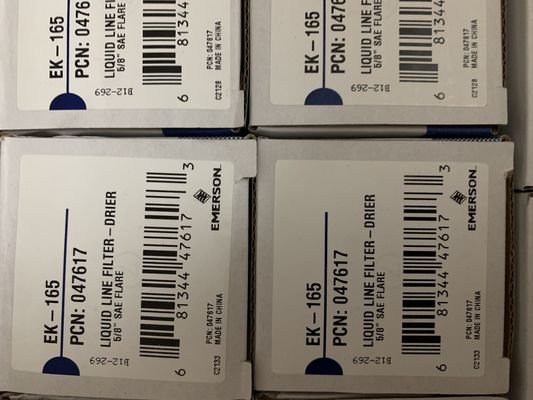

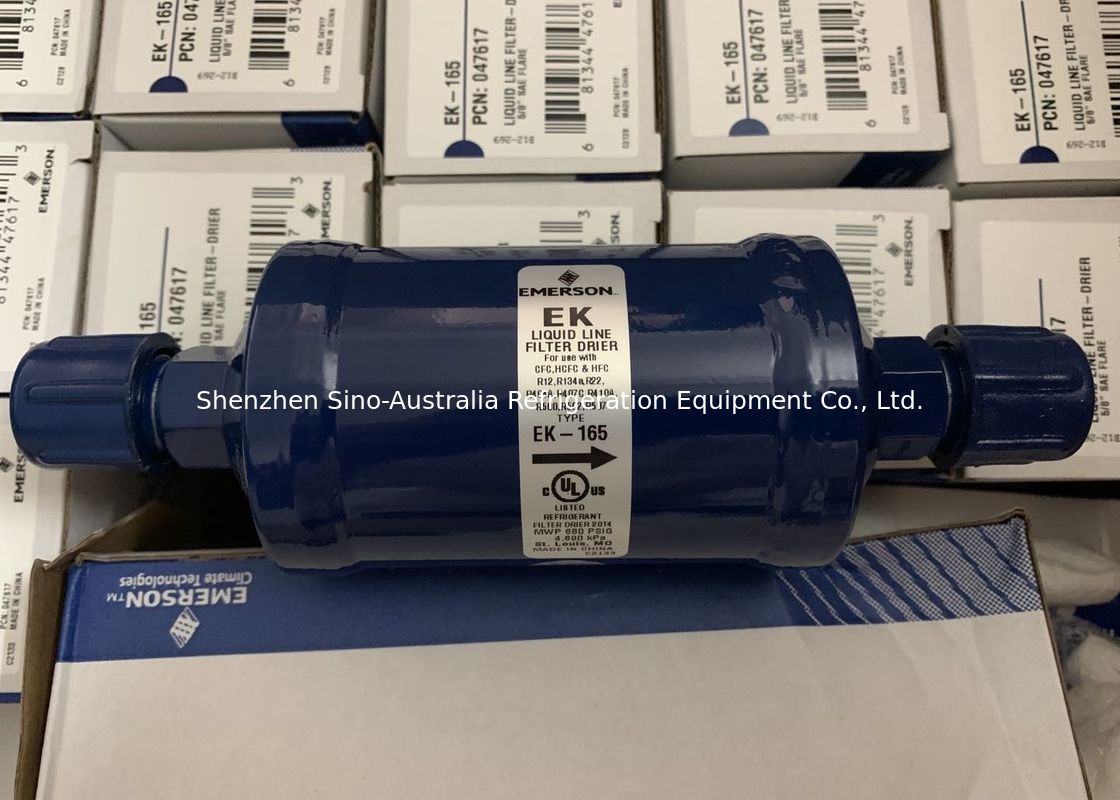

EK165 Emerson Liquid Line Filter Drier 5/8" SAE Flare
EK series liquid line filter drier with granular filter, suitable for HFC and HFC products.
1. High filtering accuracy
2. High water removal ability, effectively prevent Poe oil from deteriorating.
3. The outer coating is anti-corrosion epoxy powder spray paint
4. Steel Shell anti-vibration, anti-seismic effect is excellent
5. Filter element is 25% Activated alumina and 75% molecular sieve
6. The filtration accuracy is 20 microns
7. Operating pressure: 47 Bar
8. UL/CUL CERTIFICATION: Certification No. SA3124
Ordering for Alco/Emerson Liquid Line Filter Driers
| PCN | Model |
Connection Inlet / outlet |
Dimentiopn (mm) | Weight/ kg | ||||
| A | B | D | E | F | ||||
| 060012 | EK-032S | 1/4ODF | 98.6 | 79.5 | 9.7 | 65.0 | 41.4 | 0.2 |
| 047602 | EK-052S | 1/4ODF | 112.8 | 93.7 | 9.7 | 76.2 | 66.8 | 0.4 |
| 047606 | EK-082S | 1/4ODF | 133.3 | 114.3 | 9.7 | 96.8 | 66.8 | 0.6 |
| 060014 | EK-033S | 3/8ODF | 103.1 | 81.0 | 11.2 | 65.0 | 41.4 | 0.2 |
| 047604 | EK-053S | 3/8ODF | 114.3 | 92.2 | 11.2 | 76.2 | 66.8 | 0.6 |
| 047608 | EK-083S | 3/8ODF | 134.9 | 112.8 | 11.2 | 96.8 | 66.8 | 0.6 |
| 047614 | EK-163S | 3/8ODF | 158.8 | 138.2 | 11.2 | 120.7 | 66.8 | 0.6 |
| 048211 | EK-303S | 3/8ODF | 228.6 | 206.5 | 11.2 | 190.5 | 77.7 | 1.7 |
| 047610 | EK-084S | 1/2ODF | 136.7 | 111.3 | 12.7 | 96.8 | 66.8 | 0.6 |
| 047616 | EK-164S | 1/2ODF | 160.3 | 134.9 | 12.7 | 120.7 | 66.8 | 0.6 |
| 048213 | EK-304S | 1/2ODF | 231.9 | 206.5 | 12.7 | 190.5 | 77.7 | 1.7 |
| 047618 | EK-165S | 5/8ODF | 166.6 | 134.9 | 16.0 | 120.7 | 66.8 | 0.6 |
| 048215 | EK-305S | 5/8ODF | 236.5 | 204.7 | 16.0 | 190.5 | 77.7 | 1.7 |
| 048223 | EK-415S | 5/8ODF | 239.8 | 208.0 | 16.0 | 193.8 | 93.7 | 2.2 |
| 048216 | EK-306S | 3/4ODF | 246.1 | 214.4 | 16.0 | 190.5 | 77.7 | 1.7 |
| 047619 | EK-167S | 7/8ODF | 190.5 | 143.0 | 19.1 | 120.7 | 66.8 | 0.6 |
| 048217 | EK-307S | 7/8ODF | 251.0 | 212.9 | 19.1 | 190.5 | 77.7 | 1.7 |
| 048224 | EK-417S | 7/8ODF | 254.0 | 215.9 | 19.1 | 193.8 | 93.7 | 2.2 |
| 048228 | EK-757S | 7/8ODF | 392.2 | 354.1 | 19.1 | 331.7 | 93.7 | 3.4 |
| 048218 | EK-309S | 1-1/8ODF | 260.4 | 214.4 | 23.9 | 190.5 | 77.7 | 1.7 |
| 048225 | EK-419S | 1-1/8ODF | 277.9 | 215.9 | 19.1 | 193.8 | 93.7 | 2.2 |
| 048229 | EK-759S | 1-1/8ODF | 400.1 | 352.6 | 23.9 | 331.7 | 93.7 | 3.4 |
