Place of Origin: | China |
Brand Name: | Donghae |
Certification: | CE / UL |
Model Number: | VAS series |
Minimum Order Quantity: | 20pcs |
---|---|
Price: | negotiate |
Packaging Details: | cartons |
Delivery Time: | 4-6 weeks |
Payment Terms: | T/T |
Supply Ability: | 2000pcs per week |
Connection: | Solder | Series: | VAS Series |
---|---|---|---|
Application: | Refrigeration And Air-conditioning Systems | Condition: | New |
Name: | Vibration Eliminators | Material: | Stainless Steel |
High Light: | VAS Stainless Steel Vibration Eliminator,Donghae VAS Suction Vibration Eliminator,Donghae VAS Refrigeration System Components |
Vibration Eliminators For Refrigeration System,Condensing Unit,Refrigeration Unit,Cooling Equipments
Description:

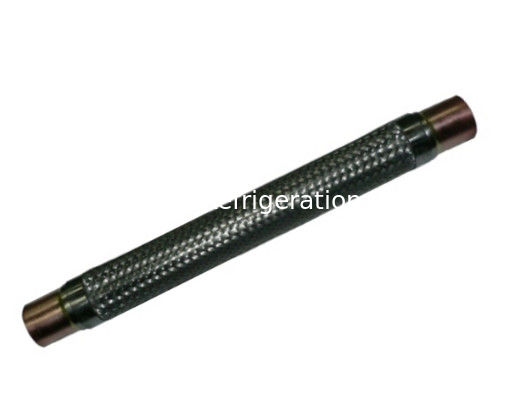

· Donghae Vibration Eliminators hose is a welded assembly of corrugated metal hose, metal connector, braided metallic wire sleeve, metal clamping ring and red copper tube.
· Donghae Vibration Eliminators hose is a vibration resistant connection piece to be used to prevent the piping from break caused by vibration.
· Donghae Vibration Eliminatorshose is used on the suction piping and exhaust piping of a compressor in the refrigeration, cold storage and air conditioning unit.
· Installation Mode: ODF connection soldering is used.
Specifications:
Type | Size | Outline Dimension | Max.Working Pressure (MPa) | Min.Bending Radius | |||
A L D | Static(Rj) Dynamic(Rd) | ||||||
VAS-038 | 3/8 | 16 | 210 | ![]() |
4.2 | 80 | 180 |
VAS-012 | 1/2 | 18 | 230 | ![]() |
4.2 | 95 | 215 |
VAS-058 | 5/8 | 20 | 250 | ![]() |
4.2 | 120 | 270 |
VAS-034- | 3/4 | 22 | 260 | ![]() |
4.2 | 145 | 325 |
VAS-078 | 7/8 | 28 | 300 | ![]() |
4.2 | 160 | 360 |
VAS-100 | 1 | 32 | 330 | ![]() |
4.2 | 175 | 400 |
VAS-118 | 1-1/8 | 32 | 330 | ![]() |
4.2 | 175 | 400 |
VAS-114 | 1-1/4 | 55 | 400 | ![]() |
3.5 | 225 | 510 |
VAS-138 | 1-3/8 | 35 | 400 | ![]() |
3.5 | 225 | 510 |
VAS-158 | 1-5/8 | 45 | 400 | ![]() |
2.5 | 280 | 640 |
VAS-218 | 2-1/8 | 65 | 520 | ![]() |
2.5 | 350 | 800 |
VAS-258 | 2-5/8 | 75 | 610 | ![]() |
2.0 | 390 | 845 |
VAS-318 | 3-1/8 | 80 | 680 | ![]() |
2.0 | 480 | 1000 |
Technical Parameters:
Applicable Refrigerants: HCFC/HFC
Applicable Medium Temperature: -40℃~+150℃
Maximum Working Pressure: refer to the table
Maximum Proof Pressure: refer to the table
Configuration:
1,Copper bush; 2,Stainsteel bush; 3,Wave hose; 4,Net hose; 5,Clamping ring
Should you have any question, feel free to contact.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
