| Place of Origin: | Mexico |
| Brand Name: | Alco/Emerson |
| Certification: | CE / UL |
| Model Number: | EK series |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per week |
| Connection: | Flare And Solder | Series: | EK Series |
|---|---|---|---|
| Oil: | POE | Application: | Refrigeration And Air-conditioning Systems |
| Condition: | New | Name: | Filter Driers |
| High Light: | Alco 164 Liquid Line Filter Drier,5/8ODF Liquid Line Filter Drier,Alco 083 danfoss eliminator filter drier |
||

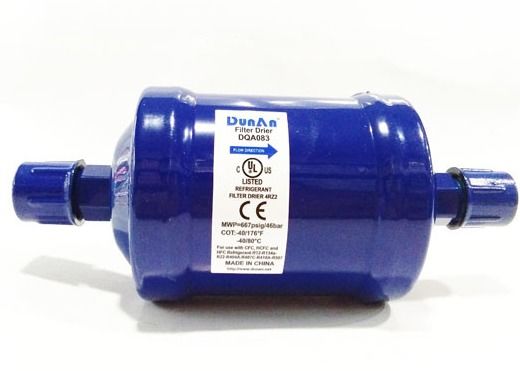

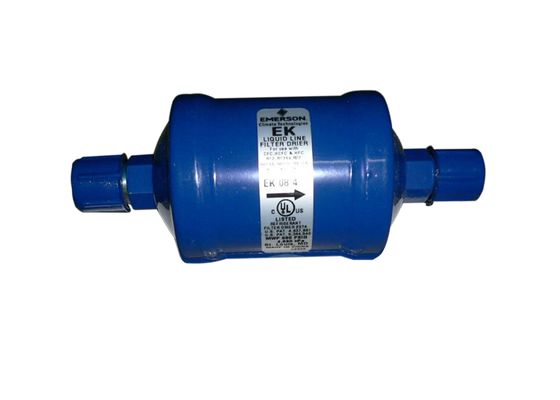

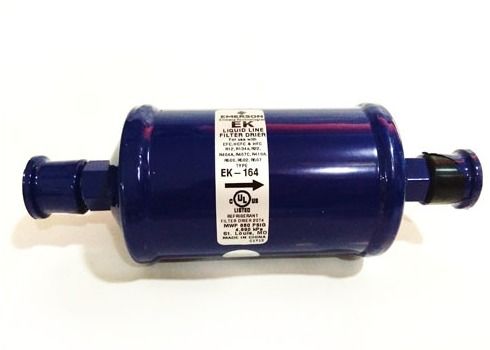

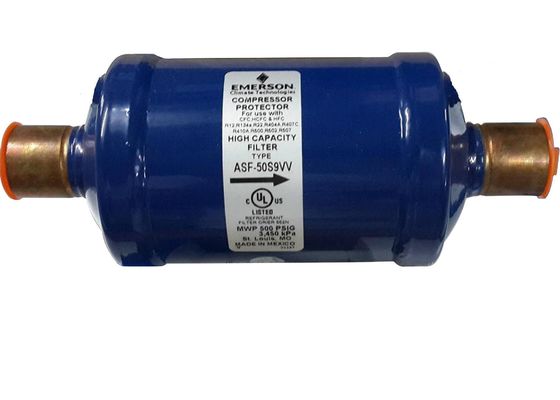

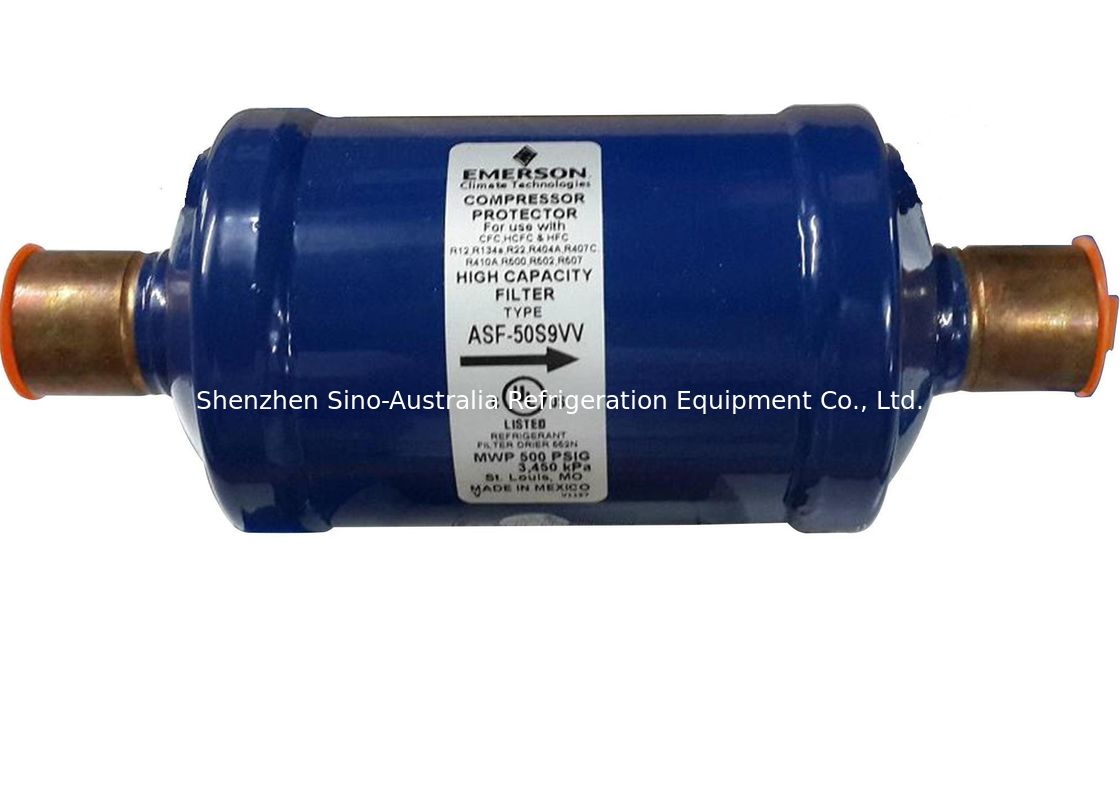

Alco 083,164,305,415 Eliminator Liquid Line Filter Drier For Refrigeration System Line,Freezer,Other Cooling Equipment
EKseries liquid tube filter with granular filter, suitable for HFC and HFC products.
1. High filtering accuracy
2. High water removal ability, effectively prevent Poe oil from deteriorating.
3. The outer coating is anti-corrosion epoxy powder spray paint
4. Steel Shell anti-vibration, anti-seismic effect is excellent
5. Filter element is 25% Activated alumina and 75% molecular sieve
6. The filtration accuracy is 20 microns
7. Operating pressure: 47 Bar
8. UL/CUL CERTIFICATION: Certification No. SA3124
Ordering for Alco/Emerson Liquid Line Filter Driers
| PCN | Model |
Connection Inlet / outlet |
Dimentiopn (mm) | Weight/ kg | ||||
| A | B | D | E | F | ||||
| 060012 | EK-032S | 1/4ODF | 98.6 | 79.5 | 9.7 | 65.0 | 41.4 | 0.2 |
| 047602 | EK-052S | 1/4ODF | 112.8 | 93.7 | 9.7 | 76.2 | 66.8 | 0.4 |
| 047606 | EK-082S | 1/4ODF | 133.3 | 114.3 | 9.7 | 96.8 | 66.8 | 0.6 |
| 060014 | EK-033S | 3/8ODF | 103.1 | 81.0 | 11.2 | 65.0 | 41.4 | 0.2 |
| 047604 | EK-053S | 3/8ODF | 114.3 | 92.2 | 11.2 | 76.2 | 66.8 | 0.6 |
| 047608 | EK-083S | 3/8ODF | 134.9 | 112.8 | 11.2 | 96.8 | 66.8 | 0.6 |
| 047614 | EK-163S | 3/8ODF | 158.8 | 138.2 | 11.2 | 120.7 | 66.8 | 0.6 |
| 048211 | EK-303S | 3/8ODF | 228.6 | 206.5 | 11.2 | 190.5 | 77.7 | 1.7 |
| 047610 | EK-084S | 1/2ODF | 136.7 | 111.3 | 12.7 | 96.8 | 66.8 | 0.6 |
| 047616 | EK-164S | 1/2ODF | 160.3 | 134.9 | 12.7 | 120.7 | 66.8 | 0.6 |
| 048213 | EK-304S | 1/2ODF | 231.9 | 206.5 | 12.7 | 190.5 | 77.7 | 1.7 |
| 047618 | EK-165S | 5/8ODF | 166.6 | 134.9 | 16.0 | 120.7 | 66.8 | 0.6 |
| 048215 | EK-305S | 5/8ODF | 236.5 | 204.7 | 16.0 | 190.5 | 77.7 | 1.7 |
| 048223 | EK-415S | 5/8ODF | 239.8 | 208.0 | 16.0 | 193.8 | 93.7 | 2.2 |
| 048216 | EK-306S | 3/4ODF | 246.1 | 214.4 | 16.0 | 190.5 | 77.7 | 1.7 |
| 047619 | EK-167S | 7/8ODF | 190.5 | 143.0 | 19.1 | 120.7 | 66.8 | 0.6 |
| 048217 | EK-307S | 7/8ODF | 251.0 | 212.9 | 19.1 | 190.5 | 77.7 | 1.7 |
| 048224 | EK-417S | 7/8ODF | 254.0 | 215.9 | 19.1 | 193.8 | 93.7 | 2.2 |
| 048228 | EK-757S | 7/8ODF | 392.2 | 354.1 | 19.1 | 331.7 | 93.7 | 3.4 |
| 048218 | EK-309S | 1-1/8ODF | 260.4 | 214.4 | 23.9 | 190.5 | 77.7 | 1.7 |
| 048225 | EK-419S | 1-1/8ODF | 277.9 | 215.9 | 19.1 | 193.8 | 93.7 | 2.2 |
| 048229 | EK-759S | 1-1/8ODF | 400.1 | 352.6 | 23.9 | 331.7 | 93.7 | 3.4 |
