| Place of Origin: | China |
| Brand Name: | CNAU |
| Certification: | CE / UL |
| Model Number: | CA series |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per week |
| Connection: | Welding | Series: | CA |
|---|---|---|---|
| Materials: | Copper | Application: | Refrigeration And Air-conditioning Systems |
| Condition: | New | Name: | Air-cooled Condenser |
| Highlight: | CA Air Colded Condensers,Copper Welding air conditioner condenser,Freezer Room Air Colded Condensers |
||

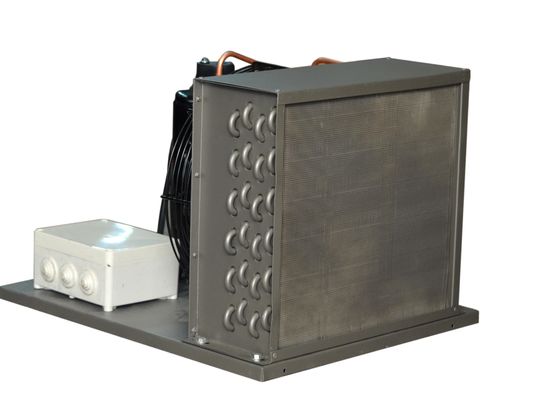

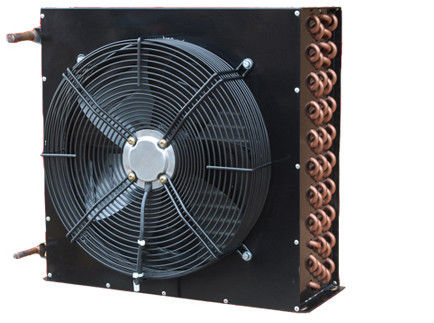

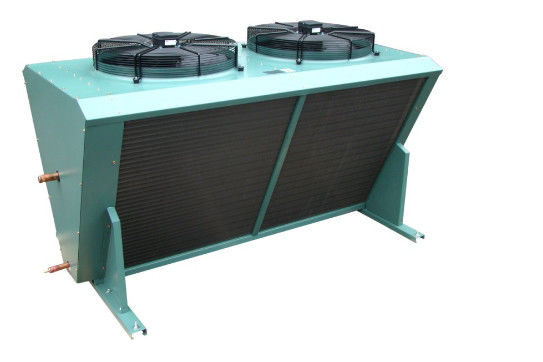

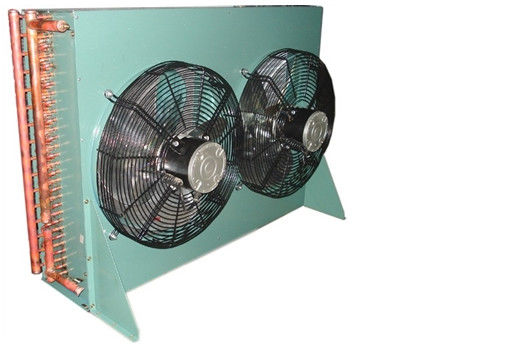

Air-Cooled Condensers For Refrigeration Units, Condensing Units And Cooling Equipment, Chiller And Freezer Room
Features
1. Adopt high-efficiency heat exchange coil.
2. The Shell is treated with spray paint, anticorrosive and durable
3. With Axial Fan, large air volume, low noise, power saving
Specifications
| Model | Main parameters | Inlet diameter | Outlet diameter | Fan quantity | Copper pipe | |
| Rating | External surface | |||||
| Diameter | ||||||
| W | ㎡ | φmm | φmm | NXφ | N*W | |
| CA-1.0/3.4 | 988 | 3.4 | 10 | 10 | 1x200 | 3x4 |
| CA-1.2/4.0 | 1160 | 4 | 10 | 10 | 1x200 | 3x4.5 |
| CA-0.3/4.4 | 1279 | 4.4 | 10 | 10 | 1x250 | 3x5 |
| CA-1.5/5.2 | 1512 | 5.2 | 10 | 10 | 1x300 | 3x6 |
| CA-2.0/7 | 2035 | 7 | 12 | 12 | 1x300 | 4x6 |
| CA-2.4/8.4 | 2436 | 8.4 | 12 | 12 | 1x300 | 3x6 |
| CA-3.1/10.6 | 3074 | 10.6 | 12 | 12 | 1x300 | 4x6 |
| CA-2.9/10 | 2900 | 10 | 16 | 12 | 1x350 | 3x8 |
| CA-3.5/12 | 3480 | 12 | 16 | 12 | 1x350 | 3x8 |
| CA-4.4/15 | 4350 | 15 | 16 | 12 | 1x350 | 3x9 |
| CA-5.2/18 | 5220 | 18 | 16 | 12 | 1x400 | 3x10 |
| CA-6.4/22A | 6380 | 22 | 16 | 12 | 1x400 | 4x10 |
| CA-7.8/27 | 7830 | 27 | 19 | 16 | 1x400 | 6x9 |
| CA-6.4/22B | 6380 | 22 | 16 | 12 | 2x350 | 3x8 |
| CA-8.1/28 | 8120 | 28 | 19 | 16 | 2x350 | 3x10 |
| CA-9.6/33 | 9570 | 33 | 19 | 16 | 2x400 | 4x10 |
| CA-12.2/42 | 12180 | 42 | 19 | 16 | 2x400 | 4x10 |
| CA-15/52 | 15080 | 52 | 19 | 16 | 2x400 | 4x12 |
| CA-17/60 | 17400 | 60 | 19 | 16 | 2x450 | 4x12 |
| CA-20/70 | 20300 | 70 | 19 | 16 | 2x450 | 4x14 |
| CA-23/80 | 23200 | 80 | 19 | 19 | 2x500 | 4x16 |
| CA-29100 | 29000 | 100 | 19 | 19 | 2x500 | 4x17 |
| CA-32/110 | 31900 | 110 | 19 | 19 | 2x550 | 4x18 |
| CA-35/120 | 34800 | 120 | 19 | 19 | 2x550 | 4x20 |
| CA-39/135 | 39150 | 135 | 19 | 19 | 2x550 | 5x18 |
| CA-45/155 | 44950 | 155 | 19 | 22 | 2x600 | 5x20 |
| CA-49/170 | 49300 | 170 | 19 | 22 | 2x600 | 5x22 |
