| Place of Origin: | Swiss / China |
| Brand Name: | Refco / Chinese brand |
| Certification: | CE / UL |
| Model Number: | High and low pressure |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per week |
| Connection: | Flare And Solder | Series: | High And Low Pressure |
|---|---|---|---|
| Oil: | POE | Application: | Air-conditioning And Refrigeration |
| Condition: | New | Name: | Oil-Filled (Vacuum) Pressure |
| High Light: | 2.5inch Oil Filled Pressure Gauge,R4O4a oil filled pressure gauge,Class 1.6 oil filled pressure gauge |
||

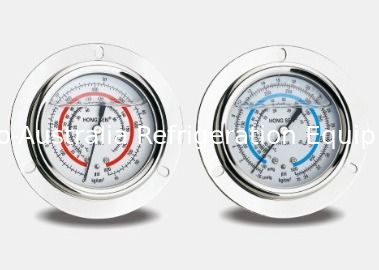

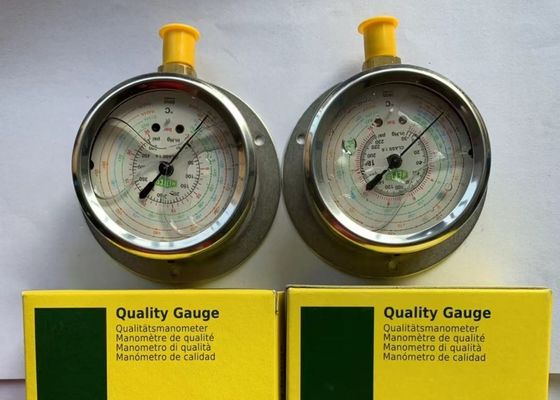

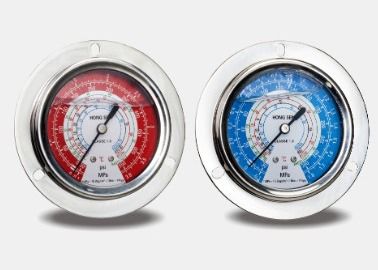

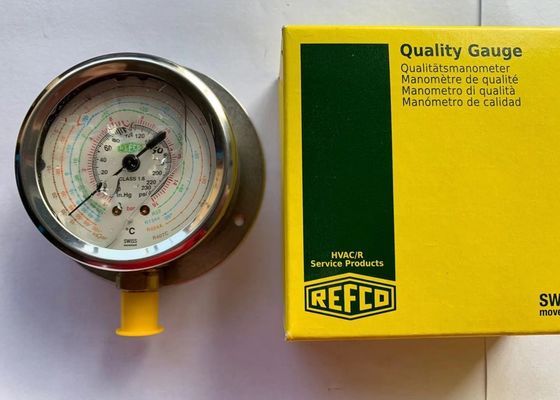

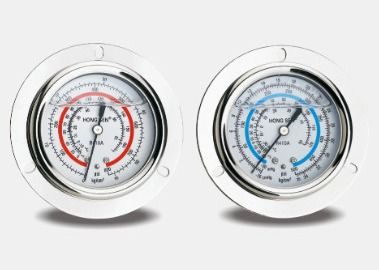

R4O4a Oil-Filled (Vacuum) Pressure Gauge For Refrigeration Unit, Condensing Unit, Air Conditioning And Cooling Equipment
Description:
·The oil-filled pressure gauge is used on freezer, cold store and air-conditioning unit.
·The oil-filled pressure gauge is convenient in application as it features one gauge for multiple refrigerants.
·The oil-filled pressure gauge has full stainless steel casing and wider beryllium bonze spring tube.
·The oil-filled pressure gauge is an axial pressure gauge with edges for flange joint.
Technical Parameters:
| Applicable Refrigerant | HCFC and HFC |
| Applicable Medium Temperature | -5℃~+120℃(-40℃~+120℃) |
| Connection Size | 1/4SAE |
| Structure | Axial concentrically-embedded |
| Casing Nominal Diameter | 2.5 in(Φ63.5) |
| Accuracy Class | Class 1.6 |
Specification:
| Series No. | Description | Model | Applicable Medium | Range of Measurement | Weight(g) |
| 33H | Oil-filled Vacuum Pressure Gauge | ZY63-H | R22,HFC-134a,R404a,R407c | -0.1~3.8MPa(-30minHg~550Psi) | 230g |
| 33L | ZY63-L | -0.1~3.8MPa(-30minHg~550Psi) | 225g | ||
| 35H | Oil-filled Pressure Gauge | Y63-H | R22,R502 | 0~38Kg/cm2(0~500Psi) | 230g |
| 35L | Oil-filled Vacuum Pressure Gauge | ZY63-L | -76cmHg~17.5Kg/cm2(-30inHg~250Psi) | 225g | |
| 61H | Oil-filled Vacuum Pressure Gauge | ZY63-H | R22,HFC-134a,R404a,R407c | 0.1~3.8MPa | 230g |
| 61L | ZY63-L | 0.1~1.8MPa | 225g | ||
| 62H | Oil-filled Pressure Gauge | Y63-H | R22,R502 | 0~35Kg/cm2(0~500Psi) | 230g |
| 62L | Oil-filled Vacuum Pressure Gauge | ZY63-L | -76cmHg~8Kg/cm2(-30inHg~120Psi) | 225g | |
| 109H | Oil-filled Vacuum Pressure Gauge | ZY63-H | R410a | -0.1~5.5MPa(-30inHg~800Psi) | 230 |
| 109L | ZY63-L | -0.1~3.5MPa(-30inHg~500Psi) | 225g |
Should you have any question, feel free to contact.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
