| Place of Origin: | China |
| Brand Name: | COLDMACH |
| Certification: | CE |
| Model Number: | CM-DAM020QYT |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden case |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per weeks |
| Type: | Air Cooled Condensing Unit | Temp Range: | Medium-High Temp |
|---|---|---|---|
| Cooling: | Air-Cooled | Application: | Chiller And Freezer Cold Room |
| Power: | 220V/50Hz,380V/50Hz/60Hz | Condition: | Brand New |
| Function: | Refrigeration | Name: | Coldroom Condensing Unit |

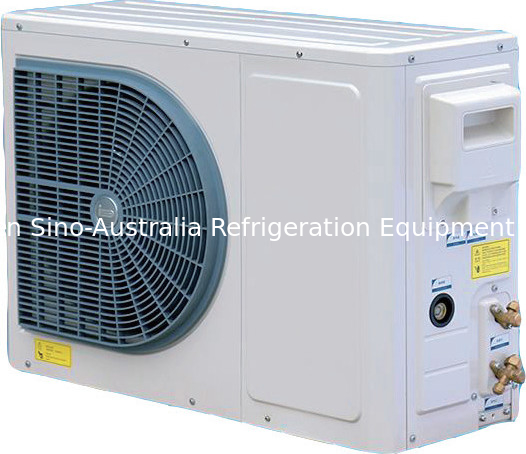

Coidmach Intelligent Split Of Air Cooled Condensing Unit
Coldmach casing condensing unit based on traditionalunits, implanted modern automatic control technology, complicatedcontrol system with frozen within the unit, high efficiency and energy saving, installation and maintenance is veryronvenient, these units are specially designed for cold rooms , which can be widely used in food cold storage and industryenvironmental laboratory, electronics manufacturing inspection industry, chemical industry etc, which have specialrequirements for temperature, is another key product for Coldmach to keep leading in refrigeration industry.
Coidmach Intelligent Split Of Air Cooled Condensing Unit Product Features
| Model:CM-DAM020QYT | |||
| Power Supply | 380V/3N/50Hz | ||
| Condensing Unit | Cold Room Temperature°C | 10 | 1817 |
| -18 | 2105 | ||
| -20 | 2597 | ||
| 0 | 3826 | ||
| 8 | 4890 | ||
| Norminal Power(W) | Power | 1692 | |
| Compressor | Type | Hermetic Scroll | |
| Fan Motor | OTY | 1 | |
| Power(W) | 60 | ||
| Pipe Connection(in) | Gas Line | 1/2” | |
| Liquid Line | 3/8” | ||
| Dimensions(mm) | 952×438×823 | ||
| Weight(kg | 80 | ||
