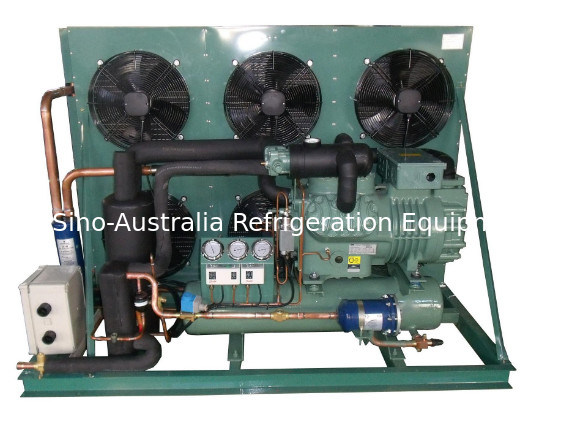

20HP Octagonal Air Cooled Refrigeration Unit 4NES-20Y Cold Storage Condenser

20HP Octagonal Air Cooled Refrigeration Unit 4NES-20Y Cold Storage Condenser

 20HP Octagonal Air Cooled Refrigeration Unit 4NES-20Y Cold Storage Condenser
video
 20HP Octagonal Air Cooled Refrigeration Unit 4NES-20Y Cold Storage Condenser
Product Details:
Place of Origin: China
Brand Name: Semi-hermetic
Certification: CE
Model Number: 4NES-20Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: wooden case
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Compressor: Semi-hermetic Reciprocating Cooling Type: Air Cooled Or Water Cooled
Temperature: High,Medium And Low Temperature Function: Refrigeration
Power: 380V/50/60Hz Condition: Brand New
Name: Refrigeration Unit Refrigerant: R404a,R134a,R407,R22
High Light:

4NES-20Y Cold Storage Condenser

,

20HP Octagonal Air Cooled Refrigeration Unit

,

20HP Cold Storage Condenser

Brand Octagonal Semi-Hermetic Air-Cooled Refrigeration Units,4NES-20Y Air Cold Condensing Unit For Cold Storage


 Octagonal series compressor, small installation space, universal, the lowest energy consumption and very smooth operation. Buzel semi-hermetic refrigeration compressor the same type of compressor can use R22, R404a, R502 refrigerant; large size suction nozzle; pressure oil lubrication. System, the use of two-way gear oil pump. COMPRESSOR OPTIONS: installed liquid supercooler, exhaust temperature protection sensor, crankcase heater, oil pressure protection switch.



Semi-hermetic refrigeration compressor can be used in a variety of operating conditions, very efficient and reliable, compact design, light weight, low cost. The compressor can be cooled by the Varicool suction as the booster stage and CIC DESIGN



Features:

1. low noise air cooled units energy regulation and start off unloading; built in check valves and safety valves; light weight, low vibration, low noise, small footprint.



2. low noise air-cooled unit motor protection device phase sequence, missing and start-up Delay Protection;



3. low noise air-cooled unit exhaust temperature, oil flow oil pressure protection for R22, R134a, R404a, R507 refrigerant;



4. low noise Air Cooling Unit each unit factory standard with computer controller, automatically adjust the running time of the compressor, extend the life of the compressor;



5. low noise air cooling unit is mainly used in places where the temperature requirement is-5 °c ~-20 °C, such as: food processing and storage, fruit and vegetable processing and fresh keeping, chemical industry, pharmaceutical industry, process ice water, air conditioning, etc. .



6. low noise air cooling units are widely used in fresh storage, cold storage, controlled atmosphere storage, low temperature workshop, process ice water and other places.



Specifications:

Based on -15℃ evaporating temperature and 18℃  suction temperature and 0℃ K subcooling for the liquid refrigerant.
Application Model Horse Power Applicable coldroom
High temp 2HES-2Y 2HP Chiller room
High temp 2GES-2Y 2HP Chiller room
High temp 2FES-3Y 3HP Chiller room
High temp 2EES-3Y 3HP Chiller room
High temp 2DES-3Y 3HP Chiller room
High temp 2CES-4Y 4HP Chiller room
High temp 4FES-5Y 5HP Chiller room
High temp 4EES-6Y 6HP Chiller room
High temp 4DES-7Y 7HP Chiller room
High temp 4CES-9Y 9HP Chiller room
High temp 4VES-10Y 10HP Chiller room
High temp 4TES-12Y 12HP Chiller room
High temp 4PES-15Y 15HP Chiller room
High temp 4NES-20Y 20HP Chiller room
High temp 4HE-25Y 25HP Chiller room
High temp 4GE-30Y 30HP Chiller room
High temp 6HE-35Y 35HP Chiller room
Low temp 2FES-2Y 2HP Freezer room
Low temp 2EES-2Y 2HP Freezer room
Low temp 2DES-2Y 2HP Freezer room
Low temp 2CES-3Y 3HP Freezer room
Low temp 4FES-3Y 3HP Freezer room
Low temp 4EES-4Y 4HP Freezer room
Low temp 4DES-5Y 5HP Freezer room
Low temp 4CES-6Y 6HP Freezer room
Low temp 4TES-9Y 9HP Freezer room
Low temp 4PES-12Y 12HP Freezer room
Low temp 4NES-14Y 14HP Freezer room
Low temp 4HE-18Y 18HP Freezer room
Low temp 4GE-23Y 23HP Freezer room
Low temp 6HE-28Y 28HP Freezer room
Low temp 6GE-34Y 34HP Freezer room
Low temp 6FE-44Y 44HP Freezer room


Packing: each unit with a separate plywood wooden case.
