| Place of Origin: | Japan |
| Brand Name: | Saginomiya |
| Certification: | CE/ROHS |
| Model Number: | AWR-3210GLW |
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per weeks |
| Connection: | 1-1/4" | Material: | Copper |
|---|---|---|---|
| Condition: | Brand New | Application: | Refrigeration / Air-conditioning |
| Name: | Pressure Regulating Water Valve | Refrigerant: | R404a,R134a,R22 |
| High Light: | Copper Refrigeration Service Valves,AWR-3212GLW Refrigeration Service Valves,AWR-3212GLW Water Pressure Regulating Valve |
||

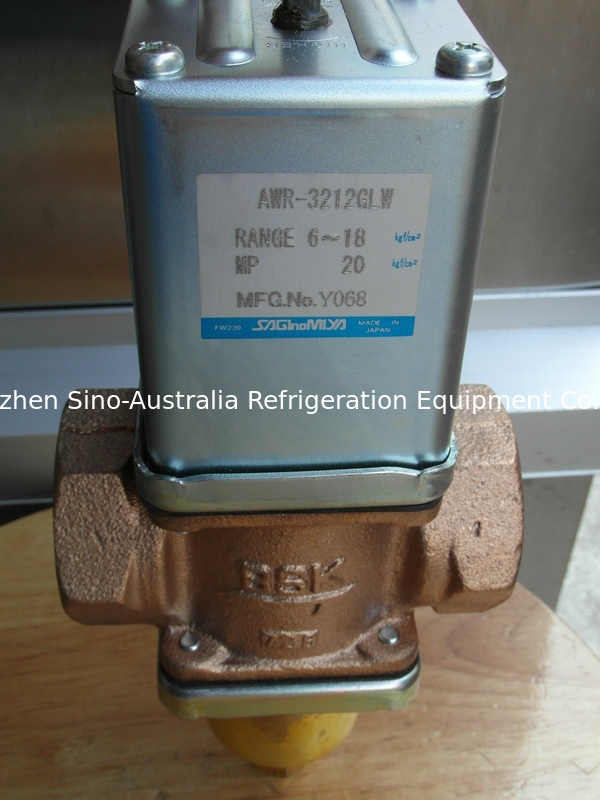

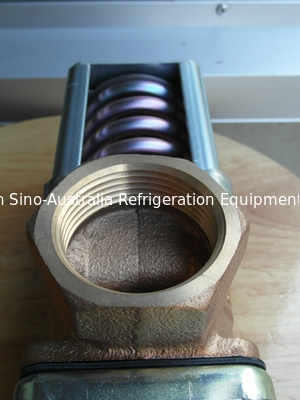

Saginomiya Pressure Regulating Valve Water Valve AWR-3212GLW 1-1/4" Connection
1. Saginomiya pressure water valve can detect the refrigerant pressure of the water-cooled condenser and control the cooling water quantity.
2. Seek the stable operation of the freezing device, save the cooling water.
3. Suitable for R22, R134a, R404A or the other refrigerants
Specifications
| Model | Material | Connection | Adjustment Range | Max working pressure (refrigerant) | Liquid Temp (℃) | Max working pressure (Cooling water) | Factory set | Weight (Kg) | |
| CWR- | 803GLWQ1 | Copper Alloy | 3/8" | 0.6~1.8(6.0~18.0) | 2 (20) | 60 | 1 (10) | 0.75(7.5) | 0.45 |
| AWR- | 1204BLW | 1/2" | 0.59~1.76 (6.0~18.0) | 1.96 (20) | 0.98(10) | 0.88(9) | 0.8 | ||
| 1203GLW | 3/8" | 0.74(7.5) | 0.66 | ||||||
| AWR- GWR- | 1504GLW | 1/2" | 0.8 | ||||||
| 2006GLW | 3/4" | 1 | |||||||
| 2510GLW | 1" | 1.8 | |||||||
| 3212GLW | 1-1/4" | 2.1 | |||||||
| 4014FLW | Cast Iron | 1-1/2" | 11.2 | ||||||
| 5020FLWR | 2" | R:0.59~1.18 (6.0~18.0) H:1.08~1.76 (11.0~18.0) | R:0.74 (7.5) H:1.23 (12.5) | 17.8 | |||||
| 5020FLWH | |||||||||
| 6524FLWR | 2-1/2" | 21.6 | |||||||
| 6524FLWH | |||||||||
| MWR- | 4014FLW | Copper Alloy | 1-1/2" | 0.59~1.18 (6.0~18.0) | 0.74 (7.5) | 11.2 | |||
| 5020FLWR | 2" | R:0.59~1.18 (6.0~18.0) H:1.08~1.76 (11.0~18.0) | R:0.74 (7.5) H:1.23 (12.5) | 17.8 | |||||
| 5020FLWH | |||||||||
| 6524FLWR | 2-1/2" | 21.6 | |||||||
| 6524FLWH | |||||||||
Should you have any question, feel free to contact.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
