|Place of Origin:||China|
|Brand Name:||Oasis brand|
|Model Number:||2-4 ℃|
|Minimum Order Quantity:||1 set|
|Delivery Time:||5-6 weeks|
|Supply Ability:||100 set per week|
|Material:||Stainless Steel / Colorbond||Steel Thickness:||0.6, 0.8mm,1.0mm Etc|
|Panel Thickness:||75mm, 100mm,150mm||Function:||Cooling Or Storage|
|Door Type:||Sliding And Hinged Door||Density:||42KG/M3|

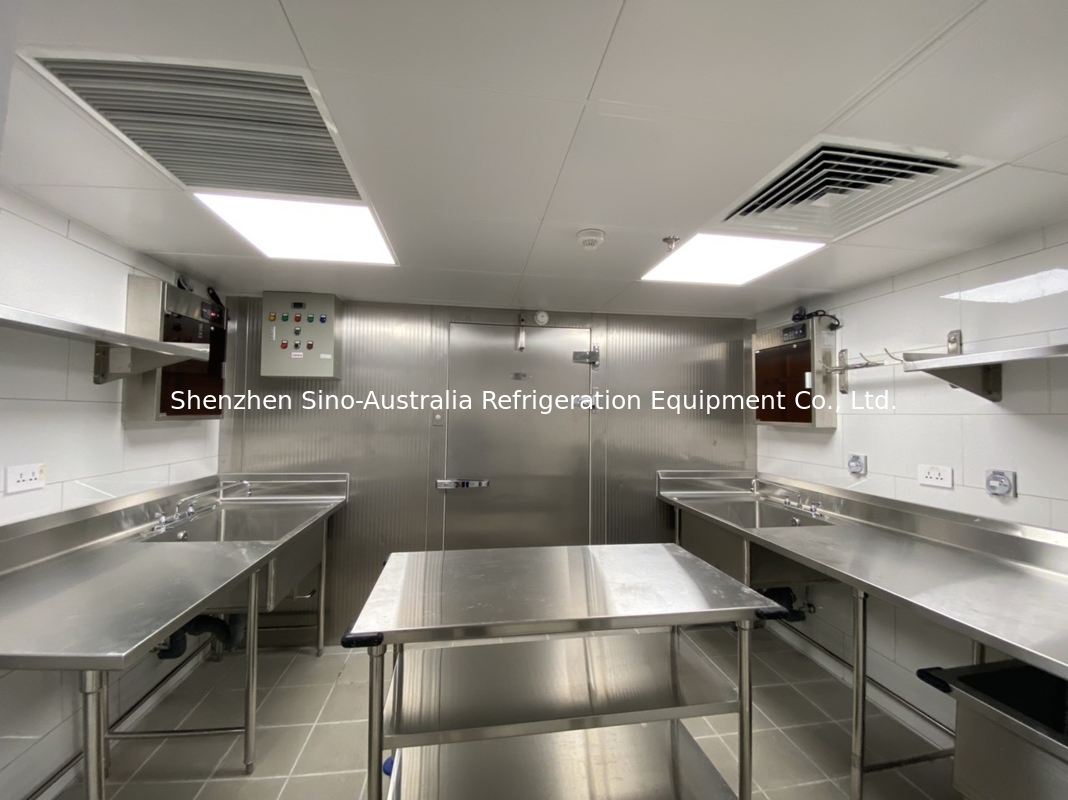

Prefabricated Walk In Chiller Rooms,
42KG/M3 Walk In Chiller Rooms,
Colorbond Walk In Coldroom
Prefabricated Walk In Meat / Seafood Chiller
Oasis Chiller and freezer roooms customized, made of different materials, can be used for food storage, cooling and processing.
We can design according to your request.
* Pre-fabricated wall floor and ceiling insulation panels.
Insulation panels spec:
1. Materials - Coldroom panels materials can be stainless steel,colorbond,aluminum,galvanized,salt steel etc.
|Detail Standard Face plate||According to GB/T23932-2009 double skin metal faced insulating panels for builing|
|According to JB/T6527-2006 The sandwich panels use for prefab cold room|
|Metal steel face plate (exterior +interior)||Metal steel plate thickness||PU Thickness (mm)|
|Colorbond steel + Colorbond steel||0.4-0.8||√||√||√||√||√||√|
|Salinized steel + Salinized steel||0.4-1.0||√||√||√||√||√||√|
|Stainless steel +Stainless steel||0.5-2.0||√||√||√||√||√||√|
|Aluminum steel + Aluminum steel||0.4-2.0||√||√||√||√||√||√|
|Colorbond steel + Stainless steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Salinized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Galvanized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Aluminum steel||Customized||√||√||√||√||√||√|
|Bare PU panel||√||√||√||√||√||√|
2. Coldroom structure: Walk in Cold room set combined piece by piece according to drawings. Each panel fabricated with camlock, with tongue-and - groove joint, easy to install by clients themself.
3. Panel Thickness : Panel thickness and working temperature based on ambient temperature 35℃
You can choose thickness according to temperature rrequest.
4. Corner type: Generally, right angle corner is common used for coldroom panels. But we can also design curved corner if needed.It is environmental protection, beautiful and easy to clean.
5. Floor type, This deep freezer cold room is walk in type floor. Moreover, we have recessed type for your choice. Recessed type can backfill concrete on floor panel, to enhance hardness to allow forklift drive inside.
6. Door type: This deep freezer cold room showed above have sliding door and hinged door for your referance. One door for one room or two doors as your choice.
7. Application: We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request.
Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer. You can take below as referance.
|Storage products||Storage temperature approach|
|Vegetables, Fruit storage, Dry food||-5~5degree centigrade|
|Drink, Beer storage, Beverage||2~8 degree centigrade|
|Meat, Fish, Seafood freeze storage||-18~--25 degree centigrade|
|Medicine storage||2~8 degree centigrade|
|Medicine freeze storage||-25 degree centigrade|
|Meat, Fish blast freezer||-35~-40 degree centigrade|
8. Refrigeration systems :
We supply all kinds of refrigeration system to match different temperature coldroom.
brand air-cooled / water-cooled system,
Emerson Copeland air-cooled / water-cooled system,
Tecumseh air-cooled / water-cooled system.
Our own brand Coldmach full set intelligent refrigeration system.
And we can customize refrigeration system
9. Cooperative partner:
The walk in cold rooms, freezer and chiller rooms and blast freezer rooms can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. We can supply certificate documents as follows:
- QS Industrial production license
- CE Certificate (Coldroom panel & door)
- B1 (GB/T 8624) Fire inspection report
- B2 (GB/T 8624) Fire inspection report
- SGS test report (single material)
- SGS test report (composite material)
11. Coldroom inquiry:
Let us know coldroom dimension, storage what kind of food, temperature, door type, panel materials, and refrigeration system type. Then we can make a firm offer ASAP.
Cold room size
(L x W x H)
|Food &Temperature||Door type||Cold room material||Refrigeration system type|
|2x2x2.6m||Fruit, +2C degree||Hinged door||0.6mm stainless steel||Air-cooled|
|4x3x2.7m||Frozen meat, -24C degree||Sliding door||0.6mm colorbond||Air-cooled|
|5x3x2.7m||Seafood, -24C degree||Sliding door||0.8mm aluminum||Water-cooled|
|5x6x2.8m||beverage, +2C degree||Hinged door||0.7mm galvanized sheet||Air-cooled|
Contact Person: Jason
