SS314 Walk In Cool Room 1160mm Width Flat Pack Cold Rooms

SS314 Walk In Cool Room 1160mm Width Flat Pack Cold Rooms

SS314 Walk In Cool Room 1160mm Width Flat Pack Cold Rooms
video
SS314 Walk In Cool Room 1160mm Width Flat Pack Cold Rooms
Product Details:
Place of Origin: China
Brand Name: Oasis brand
Certification: GB/T 19001-2006/ISO9001:2015
Model Number: High Temp/ Low Temp
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: carton
Delivery Time: 5-6 weeks
Payment Terms: T/T
Supply Ability: 100 set per week
Contact Now
Detailed Product Description
Material: Stainless Steel,colorbond,aluminum,checker Plate Steel Thickness: 0.6mm,0.8mm,1.0mm,1.5mm,2.0mm
Panel Thickness: 50mm,75mm,100mm,150mm,200mm Corner Type: Right Angle Or Curved Corner
Floor Type: Walk-in Or Recessed Dimension: Customized
Function: Insulation After-sales Service: Site Checking If Needed
Temperature: Customized Power: 220/380V
Density: 42KG/M3 Condition: Brand New
High Light:

SS314 Flat Pack Cold Rooms

,

1160mm Width Flat Pack Cold Rooms

,

1160mm Walk In Cool Room

Walk In Coldroom,304 / 314 Stailess Steel Material Freezer Cold Room,Refrigeration System Solution For Coldroom



The stainless steel plate can be defined as 0.5mm to 1.5mm as per customer's demand. All the plates are specially processed and will not forth and decorticate, and are applicable to biomedicine cold storage, food cold storage and tunnel quick freezer. Our main clients are hotel projects in Southeast Asia countries.



Features:



1. The panel density is 42KG. The size of each panel can be customized.

2. All panels fabricated camlocks with tongue-and-groove, easy to intall according to installtion drawing.

3. Curved corner inside cold room if needed. Can design cold room to hide floor and ceiling

4. All doors have fabricated heaters inside to avoid door frozen when working.

5. Doors fabricated rubbles all around to ensure sealing property.

6. All the doors are self-closing type.

7. Light weight, high strength, to meet the demand of outside loading.

8. Optional door parts : view window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc.

9. Temperature range is -45℃ to over 5 ℃



Description



1. Cold Room Materials - To meet customer's need, we have all kinds of  materials coldroom for your referance. Generally, stainless steel  and white color bond cold rooms are most popular. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.



Detail Standard Face plate According to GB/T23932-2009 double skin metal faced insulating panels for builing
According to JB/T6527-2006 The sandwich panels use for prefab cold room
Metal steel face plate (exterior +interior) Metal steel plate thickness PU Thickness (mm)
50 75 100 120 150 200
Colorbond steel + Colorbond steel 0.4-0.8
Salinized steel + Salinized steel 0.4-1.0
Stainless steel +Stainless steel 0.5-2.0
Aluminum steel + Aluminum steel 0.4-2.0
Colorbond steel + Stainless steel Customized
Colorbond steel + Salinized steel Customized
Colorbond steel + Galvanized steel Customized
Colorbond steel + Aluminum steel Customized
Bare PU panel
Customized Customized





2. Cold Room Structure - Combination cold rooms are combined piece by piece according to intallation drawing.It's very easy to install by yourself. Standard width is 1160mm, height can be from 2000mm to 8000mm, moreover, all sizes panels can be customized as your specical request. With the high density metal panel and camlock, can use under 150 kg tension.





SS314 Walk In Cool Room 1160mm Width Flat Pack Cold Rooms 0



3. Cool room panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃. Different thickness panel, the temperature using range is different.



Panel Thickness MM 50 75 100 125 150 200
Heat Conductivity W(M.K) 0.27 0.24 0.18 0.17 0.16 0.14
Working Temperature ≥5℃ ≥-5℃ ≥-25℃ ≥-30℃ ≥-35℃ ≥-45℃
Limiting Temperature ≥-5℃ ≥-10℃ ≥-30℃ ≥-35℃ ≥-40℃ ≥-50℃





4. Corner type - Of course, right angle corner is common that we can supply . If needed, we have curved corner design. This type is environmental protection, beautiful and easy to clean.



5. Floor type - The coldroom floor have two type according to request. The Walk-in type floor is installed on the ground directly, the panel interior steel request thicker than wall and ceiling, like 1.2mm thickness stainless steel checker. The recessed type, generally will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare PU panels, to enhance the hardness of the floor and allow forklift drive inside.

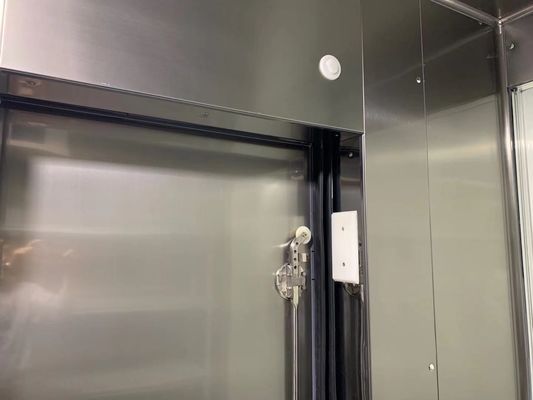

6. Doors - Gennerally, we will offer swing (hinged) or sliding door for coldrrom as your request. If you have special request, we can customize accordingly.



7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.



Storage product Tempreture range
Processing room 10℃
Fruit, vegetable, dry food 0C~-5
Medicine, cake, pastry, chemical material 0C~-5
Ice storage  -5~-10
Fish, meat frozen -18~-25
Deep freezer. -25C~-35

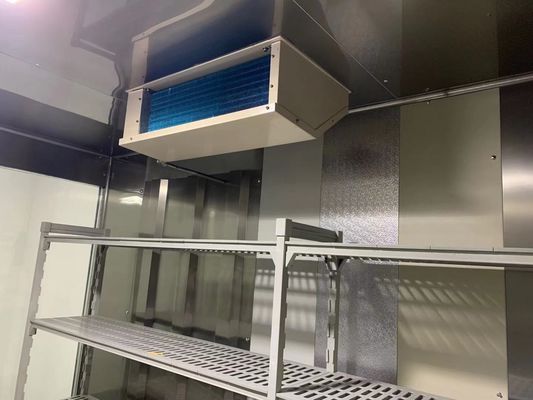

8. Refrigeration system - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.

SS314 Walk In Cool Room 1160mm Width Flat Pack Cold Rooms 1



9. Cooperative partners -The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.

SS314 Walk In Cool Room 1160mm Width Flat Pack Cold Rooms 2







10. Certificate - Our high quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.



11. Coldroom inquiry model- Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.



Cold room size (L x W x H) Food&Temperature Door type Cold room material Refrigeration system type
2x2x2.6m Fruit, +5C degree Hinged door 0.8mm stainless steel Air-cooled
4x3x2.6m Frozen meat, -20C degree Sliding door 0.6mm colorbond Air-cooled
4x2x2.6m Seafood, -25C degree Sliding door 0.6mm aluminum Water-cooled
5x3x2.6m beverage, +5C degree Hinged door 0.6mm galvanized sheet Air-cooled





Our strengths:



1. Focus on refrigeration system solution more than 18 years years.

2. Strong R&D department ensure reasonable design and excellent quality.

3. We have experienced engineers and technician team to help you install, and after-sale service.

4. 24 hours online service.

5. High efficiency team work full of love & reponsibility.



Should you have any question, feel free to contact. You are all welcome at any time.
