|Place of Origin:||China|
|Brand Name:||Oasis brand|
|Model Number:||High Temp/ Low Temp|
|Minimum Order Quantity:||1 set|
|Delivery Time:||5-6 weeks|
|Supply Ability:||100 set per week|
|Material:||Stainless Steel,colorbond,aluminum,checker Plate||Steel Thickness:||0.4mm, 0.6mm,0.8mm,1.0mm Etc|
|Panel Thickness:||75mm,100mm,150mm,200mm||Corner Type:||Right Angle Or Curved Corner|
|Floor Type:||Recessed Type Or Right Angle||Dimension:||Customized|
|Function:||Insulation And Refrigeration||After-sales Service:||Online Support,site Checking If Needed|
|Condition:||New||Temperature:||High, Medium And Low Temp.|

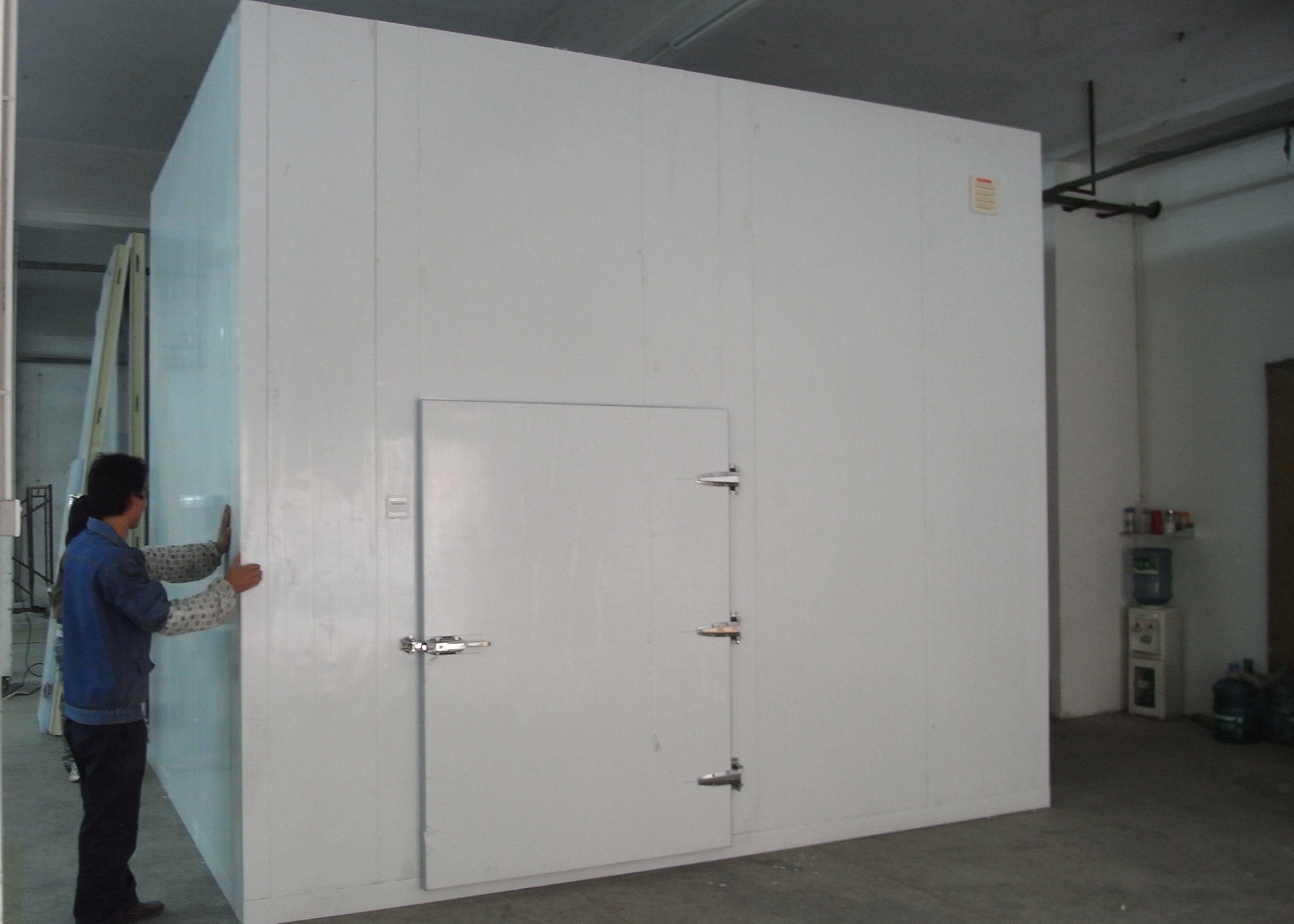

2M Height Recessed Walk In Coldroom,
ISO9001 Recessed Modular Cold Rooms,
ISO9001 Recessed Modular Cold Rooms
Cold Room Cooler Walk In Cold Room Stainless Steel Or White Colorbond Commercial Cold Room For Seafood,Meat,Cold Kitchen
Oasis brand kit set cold room solutions are distributed exclusively throughout the world. These premium modular, polyurethane insulation cool rooms provide a simple, quick and flexible cold chiller and freezer room refrigeration system solution, and can be customized to suit any modular size requirement. These cold stores are suitable for all kinds of industries, including meat chiller/freezer, veg. and fruit chiller, kitchen chiller and freezer, wine and beverage chiller etc.
1. All sizes can be customized.
2. Density is 42KG.
3. Temperature range can be from -45℃ to over 5 ℃.
4. All panels fabricated camlocks, with tongue and groove joint, easy to install according to drawings.
5. Rounded corner and right angle for your choice.
6. All doors have fabricated heaters.
7. Doors fabricated rubbles to ensure sealing property.
8. Light weight, high strength, to meet the demand of outside loading.
9 Door option fcomponents: view window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc.
10. Panels with core of PU, is prefabricated in the factory with two pre-coated steel sheets.
1. Cold Room Materials - To satisfy different customer, we have many materials cold rooms suitable for all kinds of industry, like stainless steel (304), white colorbond steel, galvanized steel, aluminum steel, SS checker plate, AL check plate, salt steel etc.
Generally, stainless steel and white colorbond materils are most popular. Salt steel is special type for coastal area, with anti-corruption design, also cheaper than stainless steel when the budget is not enough. Colorbond materials are common type, widely used and competitive.
|Detail Standard Face plate||According to GB/T23932-2009 double skin metal faced insulating panels for builing|
|According to JB/T6527-2006 The sandwich panels use for prefab cold room|
|Metal steel face plate (exterior +interior)||Metal steel plate thickness||PU Thickness (mm)|
|Colorbond steel + Colorbond steel||0.4-0.8||√||√||√||√||√||√|
|Salinized steel + Salinized steel||0.4-1.0||√||√||√||√||√||√|
|Stainless steel +Stainless steel||0.5-2.0||√||√||√||√||√||√|
|Aluminum steel + Aluminum steel||0.4-2.0||√||√||√||√||√||√|
|Colorbond steel + Stainless steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Salinized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Galvanized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Aluminum steel||Customized||√||√||√||√||√||√|
|Bare PU panel||√||√||√||√||√||√|
2. Cold Room Structure - Cold rooms are combined piece by piece according to intallation drawing. All panels fabricated camlocks, with tongue-and-groove joint, it's very easy to install according to drawing supplied.
Standard width is 1160mm, height can be from 2000mm to 8000mm, moreover, all sizes panels can be customized as your specical request. With the high density metal panel and camlock, can use under 150 kg tension.
3. Cool room panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃.
Different thickness panel, the temperature using range is different.
4. Corner type - Right angle corner is common and widely used. If needed, we have curved corner design. This type is environmental protection, beautiful and easy to clean, especially for 5-star hotel like Marriott,Hyatt,Hilton etc.
5. Floor type - Coldroom floor have two types according to site request. The Walk-in type floor is installed on the ground directly, the panel interior steel request thicker than wall and ceiling, like 1.2mm thickness stainless steel checker. The recessed type, generally will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare PU panels, to enhance the hardness of the floor and allow forklift drive inside.
6. Doors - Gennerally, we will offer swing (hinged) or sliding door for each cold room. Our standard size are 860x1900mm of swing door and 1000x1900mm of sliding door. If you have special request, we can customize accordingly.
7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.
|Storage product||Tempreture range|
|Fruit, vegetable, beverage||0C~-5℃|
|Medicine, cake, pastry, chemical material||0C~-5℃|
|Fish,Meat, seafood frozen,||-18~-25℃|
8. Refrigeration system supply - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.
9. Cooperative partners -The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Certificate - High quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.
11. Coldroom inquiry model- Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.
|Cold room size (L x W x H)||Food &Temperature||Door type||Cold room material||Refrigeration system type|
|3x3x2.6m||Fruit, +2C degree||Hinged door||0.8mm stainless steel||Air-cooled|
|3x4x2.7m||Frozen meat, -18C degree||Swing door||0.8mm colorbond||Air-cooled|
|4x4x2.7m||Seafood, -24C degree||Sliding door||0.6mm aluminum||Water-cooled|
|4x5x2.8m||beverage, +2C degree||Sliding door||0.8mm galvanized sheet||Water-cooled|
Should you have any question, feel free to contact. You are all welcome at any time.
Contact Person: Jason
