|Place of Origin:||China|
|Brand Name:||Oasis brand|
|Model Number:||High Temp/ Low Temp|
|Minimum Order Quantity:||1 set|
|Delivery Time:||5-6 weeks|
|Supply Ability:||100 set per week|
|Material:||Stainless Steel,colorbond,aluminum,checker Plate||Steel Thickness:||0.6mm,0.8mm,1.0mm,1.5mm,2.0mm|
|Panel Thickness:||50mm,75mm,100mm,150mm,200mm||Corner Type:||Right Angle Or Rounded Corner|
|Floor Type:||Walk-in Or Recessed Type||Dimension:||Customized|
|Function:||Insulation And Refrigeration||After-sales Service:||Online Support|
|Temperature:||High, Medium And Low Temp.||Power:||110V/220/380V|
|Density:||42KG/M3||Condition:||Oasis Brand New|
White Colorbond Restaurant Freezer Room,
8M Combined Walk In Coldroom,
8M Colorbond Restaurant Freezer Room
Waste Chiller Walk In Coldroom,Stainless Steel / White Colorbond Material Commercial Cold Room,Refrigeration Cold Room

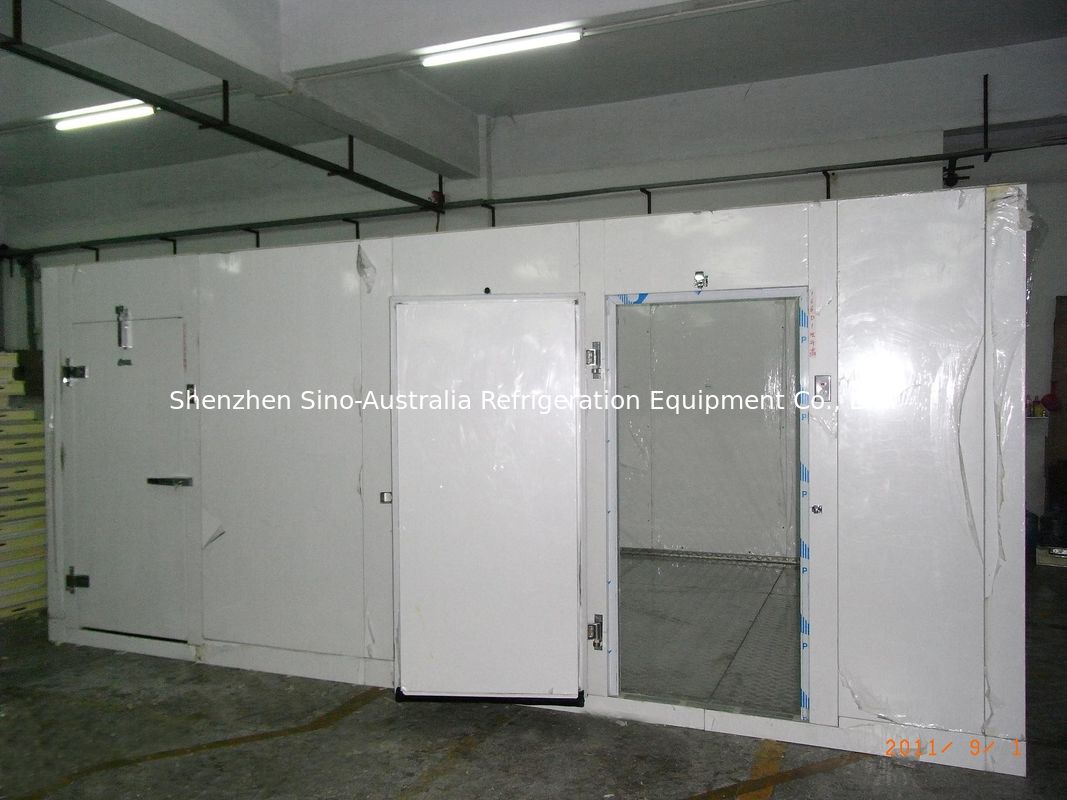

Oasis kit set cold room solutions are distributed exclusively throughout all over the world. These high quality modular, polyurethane insulation rooms provide a simple, quick and flexible cold and freezer room solution, and can be customized to suit any modular size requirement.
1. We can customize all kinds of cold rooms.
2. Panel density is 42KG.
3. The cold rooms suitable for for temperature -45℃ to over 5 ℃.
4. cold room panels fabricated camlocks, with tongue-and-groove,very easy to intall according to installtion drawing.
5. We can design rounded corner inside cold room if needed. Can design cold room to hide floor and ceiling
6. To avoid door frozen when working, all doors have fabricated heaters inside.
7. Doors fabricated rubbles all around to ensure sealing property.
8. Light weight, high strength, to meet the demand of outside loading.
9 Besides standard kits, having option fittings: view window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc.

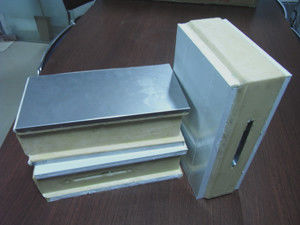

10. Coldroom panels with the core of PU, is prefabricated in the factory with two pre-coated steel sheets.
1. Cold Room Materials - We supply all kinds of materials coldroom for your referance. Generally, stainless steel and white color bond cold rooms are most popular. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.
|Detail Standard Face plate||According to GB/T23932-2009 double skin metal faced insulating panels for builing|
|According to JB/T6527-2006 The sandwich panels use for prefab cold room|
|Metal steel face plate (exterior +interior)||Metal steel plate thickness||PU Thickness (mm)|
|Colorbond steel + Colorbond steel||0.4-0.8||√||√||√||√||√||√|
|Salinized steel + Salinized steel||0.4-1.0||√||√||√||√||√||√|
|Stainless steel +Stainless steel||0.5-2.0||√||√||√||√||√||√|
|Aluminum steel + Aluminum steel||0.4-2.0||√||√||√||√||√||√|
|Colorbond steel + Stainless steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Salinized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Galvanized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Aluminum steel||Customized||√||√||√||√||√||√|
|Bare PU panel||√||√||√||√||√||√|

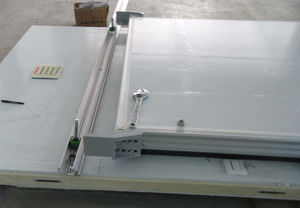

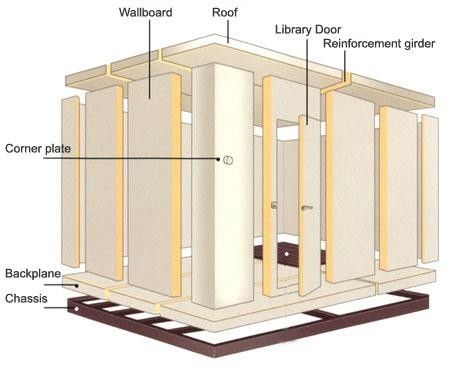

2. Cold Room Structure - Combination cold rooms are combined piece by piece according to intallation drawing.It's very easy to install by yourself. Standard width is 1160mm, height can be from 2000mm to 8000mm, moreover, all sizes panels can be customized as your specical request. With the high density metal panel and camlock, can use under 150 kg tension.
3. Cool room panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃. Different thickness panel, the temperature using range is different.
4. Corner type - Of course, right angle corner is common that we can supply . If needed, we have curved corner design. This type is environmental protection, beautiful and easy to clean.
5. Floor type - The coldroom floor have two type according to request. The Walk-in type floor is installed on the ground directly, the panel interior steel request thicker than wall and ceiling, like 1.2mm thickness stainless steel checker. The recessed type, generally will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare PU panels, to enhance the hardness of the floor and allow forklift drive inside.
6. Doors - Gennerally, we will offer swing (hinged) or sliding door for coldrrom as your request. If you have special request, we can customize accordingly.
7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.
|Storage products||Storage temperature approach|
|Vegetables, Fruit storage||-5~5degree centigrade|
|Drink, Beer storage||2~8 degree centigrade|
|Meat, Fish freeze storage||-18~--25 degree centigrade|
|Medicine storage||2~8 degree centigrade|
|Medicine freeze storage||-25 degree centigrade|
|Meat, Fish blast freezer||-35~-40 degree centigrade|
8. Refrigeration system supply - We can also supply refrigeration system to match different temperature coldroom. We have Bitzer, Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.
9. Cooperative partners -The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Certificate - High quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.
11. Coldroom inquiry model- Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.
|Cold room size (L x W x H)||Food &Temperature||Door type||Cold room material||Refrigeration system type|
|2x3x2.6m||Fruit, +2C degree||Hinged door||0.8mm stainless steel||Water-cooled|
|4x5x2.7m||Frozen meat, -18C degree||Sliding door||0.7mm colorbond||Air-cooled|
|5x8x2.7m||Seafood, -24C degree||Sliding door||0.8mm aluminum||Water-cooled|
|5x4x2.8m||beverage, +2C degree||Hinged door||1.0mm galvanized sheet||Air-cooled|
Should you have any question, feel free to contact. You are all welcome at any time.
