| Place of Origin: | Italy |
| Brand Name: | LU-VE Contardo |
| Certification: | CE / CCC |
| Model Number: | S2HC S3HC Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per weeks |
| Relative Humidity: | 80% | Refrigerant: | R404a,R134a,R507,R22 |
|---|---|---|---|
| Material: | Stainless Steel,White Coating | Temp: | High,Medium,Low Temp Range |
| Condition: | New | Power: | 220V/50Hz,380V/50Hz/60Hz |
| Application: | Cold Storage, Coolroom | Name: | Coldroom Evaporator |
| High Light: | Freezer Room Contardo Evaporators,LU VE Cold Room Contardo Evaporators,CE Approved Cold Room Evaporators |
||

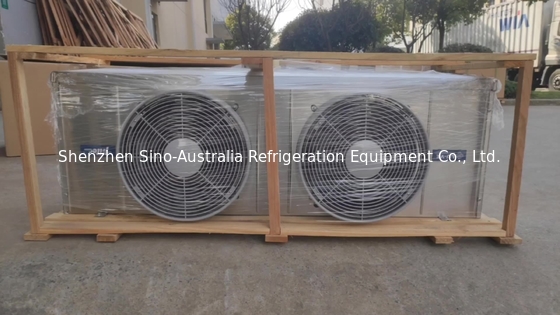

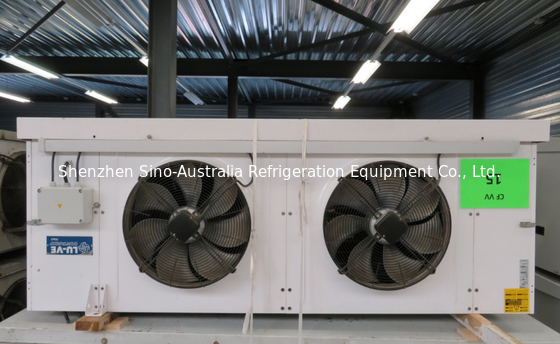

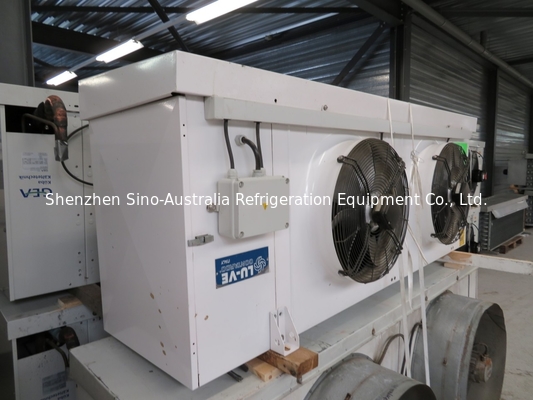

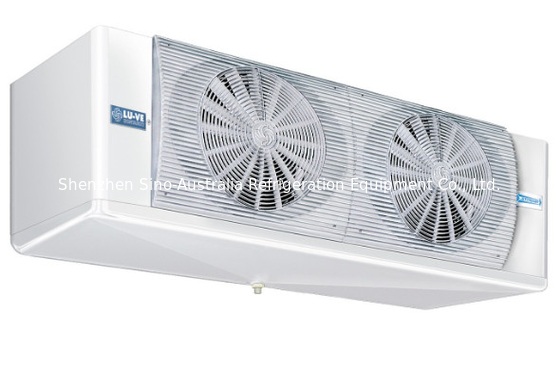

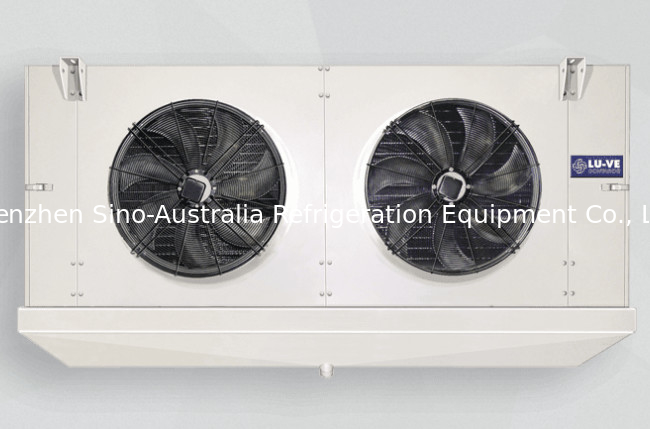

LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
The LU-VE Contardo Evaporators is designed for most refrigeration applications.
These high quality evaporators (air cooled) can be used for all kinds of coldroom, cool room, freeze room etc application. The capacity is from 1400W to 27200W, low temperature or high temperature.
S2HC Series: 1400-9400W
| Model (50=4.8mm) | 25-50 | 36-50 | 49-50 | 71-50 | 107-50 | 142-50 |
| Cooling capacity (W) | 1800 | 2350 | 3800 | 4750 | 7200 | 9400 |
| Air Flow ( m3/h) | 950 | 950 | 1900 | 1900 | 2850 | 3800 |
| Air Throw (M) | 11 | 11 | 13 | 13 | 14.5 | 16 |
| Surface (m2) | 6.8 | 6.8 | 13.6 | 13.6 | 20.4 | 27.2 |
| Weight (Kg) | 12 | 13 | 19 | 21 | 28 | 36 |
| Model (65=6.3mm) | 19-65 | 28-65 | 38-65 | 55-65 | 85-65 | 110-65 |
| Cooling capacity (W) | 1600 | 2065 | 3300 | 4150 | 6300 | 8300 |
| Air Flow ( m3/h) | 1000 | 1000 | 2000 | 2000 | 3000 | 4000 |
| Air Throw (M) | 11.5 | 11.5 | 13.5 | 13.5 | 15 | 17 |
| Surface (m2) | 5.3 | 5.3 | 10.7 | 10.7 | 16 | 21.4 |
| Weight (Kg) | 11 | 12 | 18 | 20 | 27 | 34 |
| Model (80=7.7mm) | 16-80 | 23-80 | 31-80 | 46-80 | 70-80 | 92-80 |
| Cooling capacity (W) | 1400 | 1800 | 2900 | 3600 | 5550 | 7400 |
| Air Flow ( m3/h) | 1050 | 1050 | 2100 | 2100 | 3150 | 4200 |
| Air Throw (M) | 12 | 12 | 14 | 14 | 16 | 18 |
| Surface (m2) | 4.4 | 4.4 | 8.8 | 8.8 | 13.2 | 17.6 |
| Weight (Kg) | 10 | 11 | 17 | 19 | 26 | 32 |
S3HC Series: 2900-27200W
| Model (50=4.8mm) | 73-50 | 106-50 | 133-50 | 145-50 | 215-50 | 272-50 | 323-50 | 362-50 | 430-50 |
| Cooling capacity (W) | 5350 | 6700 | 8000 | 10800 | 13500 | 18450 | 20200 | 24800 | 27200 |
| Air Flow ( m3/h) | 2600 | 2400 | 2650 | 5200 | 4800 | 7450 | 7200 | 9950 | 9600 |
| Air Throw (M) | 15.5 | 14.5 | 16 | 18.5 | 17.5 | 21 | 20 | 24 | 23 |
| Surface (m2) | 12.3 | 18.4 | 24.5 | 24.5 | 36.8 | 45.9 | 55.1 | 61.3 | 73.5 |
| Weight (Kg) | 27 | 32 | 35 | 44 | 51 | 65 | 71 | 86 | 93 |
| Model (65=6.3mm) | 59-65 | 84-65 | 108-65 | 117-65 | 174-65 | 218-65 | 261-65 | 290-65 | 348-65 |
| Cooling capacity (W) | 4500 | 5900 | 7100 | 9200 | 11950 | 16100 | 18000 | 21500 | 24000 |
| Air Flow ( m3/h) | 2650 | 2500 | 2700 | 5300 | 5000 | 7700 | 7500 | 10300 | 10000 |
| Air Throw (M) | 16 | 15 | 16.5 | 19 | 18 | 21.5 | 20.5 | 24.5 | 23.5 |
| Surface (m2) | 9.6 | 14.4 | 19.2 | 19.2 | 28.8 | 36.1 | 43.3 | 48.1 | 57.7 |
| Weight (Kg) | 26 | 31 | 33 | 42 | 49 | 62 | 67 | 82 | 88 |
| Model (80=7.7mm) | 47-80 | 69-80 | 86-80 | 94-80 | 143-80 | 179-80 | 213-80 | 238-80 | 284-80 |
| Cooling capacity (W) | 3900 | 5200 | 6300 | 7950 | 10650 | 14150 | 16000 | 18800 | 21300 |
| Air Flow ( m3/h) | 2700 | 2600 | 2750 | 5400 | 5200 | 7950 | 7800 | 10600 | 10400 |
| Air Throw (M) | 16.5 | 1.5 | 17 | 19.5 | 18.5 | 22 | 2135.7 | 25 | 24 |
| Surface (m2) | 7.9 | 11.9 | 15.9 | 15.9 | 23.8 | 29.8 | 35.7 | 39.7 | 47.6 |
| Weight (Kg) | 25 | 30 | 32 | 41 | 47 | 60 | 65 | 79 | 85 |
| S2HC Series Model SS cover | Capacity (W) | S3HC Series Model SS cover | Capacity (W) |
| S2HC 25-50-SS | 1800 | S3HC 73-50-SS | 5350 |
| S2HC 36-50-SS | 2350 | S3HC 106-50-SS | 6700 |
| S2HC 49-50-SS | 3800 | S3HC 133-50-SS | 8000 |
| S2HC 71-50-SS | 4750 | S3HC 145-50-SS | 10800 |
| S2HC 107-50-SS | 7200 | S3HC 215-50-SS | 13500 |
| S2HC 142-50-SS | 9400 | S3HC 272-50-SS | 18450 |
| S2HC 19-65-SS | 1600 | S3HC 323-50-SS | 20200 |
| S2HC 28-65-SS | 2050 | S3HC 362-50-SS | 24800 |
| S2HC 38-65-SS | 3300 | S3HC 430-50-SS | 27200 |
| S2HC 55-65-SS | 4150 | S3HC 59-65-SS | 4500 |
| S2HC 85-65-SS | 6300 | S3HC 84-65-SS | 5900 |
| S2HC 110-65-SS | 8300 | S3HC 108-65-SS | 7100 |
| S2HC 16-80-SS | 1400 | S3HC 117-65-SS | 9200 |
| S2HC 23-80-SS | 1800 | S3HC 174-65-SS | 11950 |
| S2HC 31-80-SS | 2900 | S3HC 218-65-SS | 16100 |
| S2HC 46-80-SS | 3600 | S3HC 261-65-SS | 18000 |
| S2HC 70-80-SS | 5550 | S3HC 290-65-SS | 21500 |
| S2HC 92-80-SS | 7400 | S3HC 348-65-SS | 24000 |
| S3HC 47-80-SS | 3900 | ||
| S3HC 69-80-SS | 5200 | ||
| S3HC 86-80-SS | 6300 | ||
| S3HC 94-80-SS | 7950 | ||
| S3HC 143-80-SS | 10650 | ||
| S3HC 179-80-SS | 14150 | ||
| S3HC 213-80-SS | 16000 | ||
| S3HC 238-80-SS | 18800 | ||
| S3HC 284-80-SS | 21300 |
Features:
1. High efficient coils - high efficient coils are made of high quality copper tubes and good aluminum fins. Heat exchanger is supplied clean and tested under pressure of 30 bars.
2. Inside grooved copper tubes - increase heat efficiency exchange by 10-12%.
3. Stainless steel tubes and Stainless steel covers are available.
4. Casing - White power coating aluminium or stainless steel 304, highly anti-corrosion strength, impact resistance, and does not produce polluting debris.
5. Fan motors - High quality fan motors fitted well to the unit casing with an anti-vibration system.
6. Defrost heating - SS electric heater parts covered by the aluminium tubes, located in the finned pack and in the drain pan, to avoid steam problems and make easy replacement.
7. Electrical elements and wiring - are connected to an earth terminal, carried out in junction box with access holes equipped with water-proof cable grands. All materials are selected carefully for long-term reliability.
8. Expansion valve and solenoid valve are available.
9. Capacities with other fans requested can be supplied separately.
