Place of Origin: | China |
Brand Name: | Hispania |
Certification: | CE / CCC |
Model Number: | HEA series |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiate |
Packaging Details: | cartons |
Delivery Time: | 4-6 weeks |
Payment Terms: | T/T |
Supply Ability: | 500pcs per weeks |
Relative Humidity: | 85% | Refrigerant: | R404a |
---|---|---|---|
Material: | Aluminum, Stainless Steel | Temp: | High,medium And Low Temp Range |
Condition: | New | Power: | 220V/50Hz,380V/50Hz/60Hz |
Application: | Cold Storage, Freezer And Chiller | Name: | Coldroom Evaporator |
High Light: | 220V 50Hz Cold Room Evaporators,85% Relative Humidity Cold Room Evaporators,220V 50Hz refrigeration evaporator |

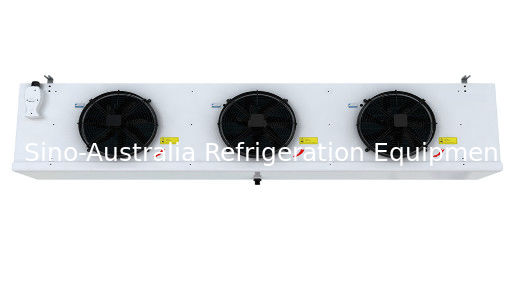

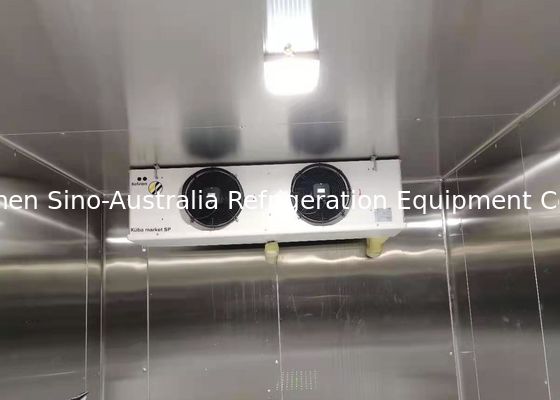

Air Cooler Unit For Coldroom, White Power Coated Aluminium/Stainless Steel Ceiling Mounted Refrigeration Evaporators
Features:
1. High efficiency heat exchange design,separating evenly,optimizing temperature difference;
2. Sufficient cooling capacity and plenty of heat exchange area;
3. Special hot gas defrosting design, without defrosting electrical heater, no hidden dangers, easy to maintenance.
4. Larger air flow rate, cooling fast.
5. Aluminum shell, light-weight,easy installation;
6. Fish type design terminal box, convenient for wiring.
Specifications:
High Temp Series - Fin spacing 4mm, with heaters Rt ≥0℃ | ||||||
Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
te= -8℃ | te= -25℃ | Inlet | Outlet | |||
DT1=8K | DT1=7K | |||||
HEA-2501-09-4D | 1.8 L | 1.3 | 0.94 | 9 | 12 | 16 |
HEA-2502-17-4D | 3.2 L | 2.68 | 2.04 | 17 | 12 | 19 |
HEA-2503-26-4D | 4.7 L | 4.05 | 3.13 | 26 | 12 | 22 |
HEA-2504-35-4D | 6.1 L | 5.47 | 4.38 | 35 | 12 | 22 |
HEA-2506-52-4D | 8.7 L | 8.16 | 6.53 | 52 | 15 | 28 |
HEA-3001-12-4D | 2.4 L | 2.14 | 1.78 | 12 | 12 | 19 |
HEA-3002-23-4D | 4.3 L | 4.31 | 3.54 | 23 | 12 | 22 |
HEA-3003-35-4D | 6.2 L | 6.47 | 5.22 | 35 | 12 | 22 |
HEA-3004-46-4D | 8.2 L | 8.50 | 6.75 | 46 | 15 | 28 |
HEA-3006-69-4D | 11.6 L | 12.39 | 9.54 | 69 | 15 | 28 |
HEA-4001-20-4D | 3.5L | 4.7 | 3.84 | 20 | 12 | 19 |
HEA-4002-40-4D | 7.2L | 9.26 | 7.25 | 40 | 12 | 22 |
HEA-4003-54 4D | 9.6L | 12.98 | 9.98 | 54 | 15 | 28 |
HEA-4004-81-4D | 14.4L | 12.27 | 12.85 | 81 | 15 | 35 |
HEA-4501-31-4D | 5.5 L | 6.61 | 5.36 | 31 | 12 | 22 |
HEA-4502-61-4D | 10.5 L | 14.84 | 11.47 | 61 | 15 | 28 |
HEA-4503-92-4D | 15.5 L | 21.18 | 16.04 | 92 | 15 | 35 |
HEA 5001 39 4D | 7.1L | 9.6 | 7.64 | 39 | 15 | 28 |
HEA 5001 58 4D | 10.6L | 11.88 | 9.62 | 58 | 15 | 28 |
HEA 5002 81 4D | 14L | 18.75 | 14.46 | 81 | 22 | 35 |
HEA 5002 121 4D | 21L | 23.56 | 18.13 | 121 | 22 | 35 |
HEA 5003 122 4D | 21.1L | 28.77 | 22.77 | 122 | 28 | 42 |
HEA 5003 183 4D | 31.5L | 35.23 | 27.27 | 183 | 28 | 42 |
Medium Temp Series - Fin spacing 6mm, with heaters Rt ≥-18℃ | ||||||
Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
te= -8℃ | te= -25℃ | Inlet | Outlet | |||
DT1=8K | DT1=7K | |||||
HEA-2501-06-6D | 1.8 L | 1.14 | 0.81 | 6 | 12 | 16 |
HEA-2502-11-6D | 3.2 L | 2.35 | 1.78 | 11 | 12 | 19 |
HEA-2503-17-6D | 4.7 L | 3.6 | 2.89 | 17 | 12 | 22 |
HEA-2504-23-6D | 6.1 L | 4.68 | 3.67 | 23 | 12 | 22 |
HEA-2506-35-6D | 8.7 L | 7.17 | 5.79 | 35 | 15 | 28 |
HEA-3001-08-6D | 2.4 L | 1.89 | 1.58 | 8 | 12 | 19 |
HEA-3002-15-6D | 4.3 L | 3.76 | 3.1 | 15 | 12 | 22 |
HEA-3003-23-6D | 6.2 L | 5.59 | 4.55 | 23 | 12 | 22 |
HEA-3004-31-6D | 8.2 L | 7.4 | 5.93 | 31 | 15 | 28 |
HEA-3006-46-6D | 11.6 L | 10.88 | 8.31 | 46 | 15 | 28 |
HEA-4001-13-6D | 3.5L | 4.01 | 3.29 | 13 | 12 | 19 |
HEA-4002-27-6D | 7.2L | 7.92 | 6.35 | 27 | 12 | 22 |
HEA-4003-36-6D | 9.6L | 11.26 | 8.84 | 36 | 15 | 28 |
HEA-4004-54-6D | 14.4L | 15.15 | 11.6 | 54 | 15 | 35 |
HEA-4501-20-6D | 5.5 L | 5.41 | 4.42 | 20 | 12 | 22 |
HEA-4502-41-6D | 10.5 L | 12.26 | 9.67 | 41 | 15 | 28 |
HEA-4503-61-6D | 15.5 L | 17.73 | 13.48 | 61 | 15 | 35 |
HEA 5001 26 6D | 7.1L | 8.16 | 6.59 | 26 | 15 | 28 |
HEA 5001 39 6D | 10.6L | 10.15 | 8.22 | 39 | 15 | 28 |
HEA 5002 54 6D | 14L | 16.02 | 12.87 | 54 | 22 | 35 |
HEA 5002 81 6D | 21L | 20.77 | 16.26 | 81 | 22 | 35 |
HEA 5003 82 6D | 21.1L | 24.66 | 19.77 | 82 | 28 | 42 |
HEA 5003 122 6D | 31.5L | 30.82 | 24.38 | 122 | 28 | 42 |
Low Temp Series - Fin spacing 9mm, with heaters Rt ≥-25℃ | ||||||
Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
te= -8℃ | te= -25℃ | Inlet | Outlet | |||
DT1=8K | DT1=7K | |||||
HEA-2501-04-9D | 1.8 L | 0.98 | 0.69 | 4 | 12 | 16 |
HEA-2502-08-9D | 3.2 L | 2.07 | 1.66 | 8 | 12 | 19 |
HEA-2503-12-9D | 4.7 L | 3.12 | 2.51 | 12 | 12 | 22 |
HEA-2504-16-9D | 6.1 L | 4.08 | 3.21 | 16 | 12 | 22 |
HEA-2506-24-9D | 8.7 L | 6.19 | 5.04 | 24 | 15 | 28 |
HEA-3001-06-9D | 2.4 L | 1.59 | 1.38 | 6 | 12 | 19 |
HEA-3002-10-9D | 4.3 L | 3.17 | 2.68 | 10 | 12 | 22 |
HEA-3003-16-9D | 6.2 L | 4.79 | 3.92 | 16 | 12 | 22 |
HEA-3004-21-9D | 8.2 L | 6.32 | 5.13 | 21 | 15 | 28 |
HEA-3006-31-9D | 11.6 L | 7.4 | 5.93 | 31 | 15 | 28 |
HEA-4001-09-9D | 3.5L | 3.43 | 2.83 | 9 | 12 | 19 |
HEA-4002-18-9D | 7.2L | 6.76 | 5.47 | 18 | 12 | 22 |
HEA-4003-24-9D | 9.6L | 9.62 | 7.54 | 24 | 15 | 28 |
HEA-4004-36-9D | 14.4L | 13.11 | 10.17 | 36 | 15 | 35 |
HEA-4501-14-9D | 5.5 L | 4.79 | 3.99 | 14 | 12 | 22 |
HEA-4502-28-9D | 10.5 L | 10.92 | 8.7 | 28 | 15 | 28 |
HEA-4503-41-9D | 15.5 L | 15.85 | 12.19 | 41 | 15 | 35 |
HEA 5001 17 9D | 7.1L | 6.92 | 5.64 | 17 | 15 | 28 |
HEA 5001 26 9D | 10.6L | 8.93 | 7.24 | 26 | 15 | 28 |
HEA 5002 36 9D | 14L | 13.85 | 10.99 | 36 | 22 | 35 |
HEA 5002 54 9D | 21L | 17.73 | 14.24 | 54 | 22 | 35 |
HEA 5003 54 9D | 21.1L | 20.88 | 16.52 | 54 | 28 | 42 |
HEA 5003 82 9D | 31.5L | 26.69 | 21.37 | 82 | 28 | 42 |
Marks:
* Optional model without heater available.
* Evaporator with Glycol gas available.
* Golden fins with highly anti-corrosion strength available.
* Double trays available.
* Silica gel heater for fan motor with Long-Nozzle available.
Should you have any question, feel free to contact.
