| Place of Origin: | China |
| Brand Name: | Coldmach |
| Certification: | CE / CCC |
| Model Number: | CM series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per weeks |
| Relative Humidity: | 85% | Refrigerant: | R404a |
|---|---|---|---|
| Material: | Aluminum / White Painted / Stainless Steel | Temp: | Low Temp Range |
| Condition: | New | Power Supply: | 220V/380V/50Hz/60Hz |
| Application: | Cold Storage, Freezer And Chiller | Name: | Evaporator, Air Cooler |
| High Light: | EMB Motor Air Cooler Evaporator,Air Cooler Evaporator R404a,Fin Spacing 9mm Aluminium Refrigeration Evaporator |
||

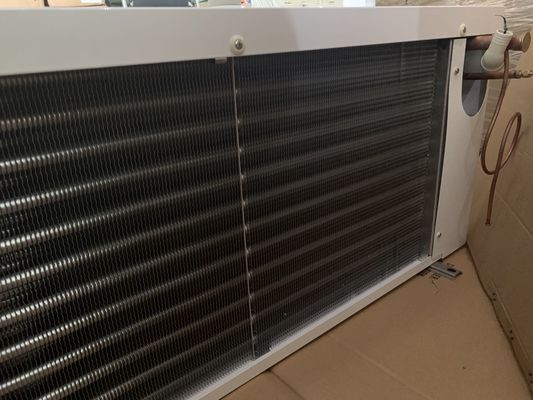

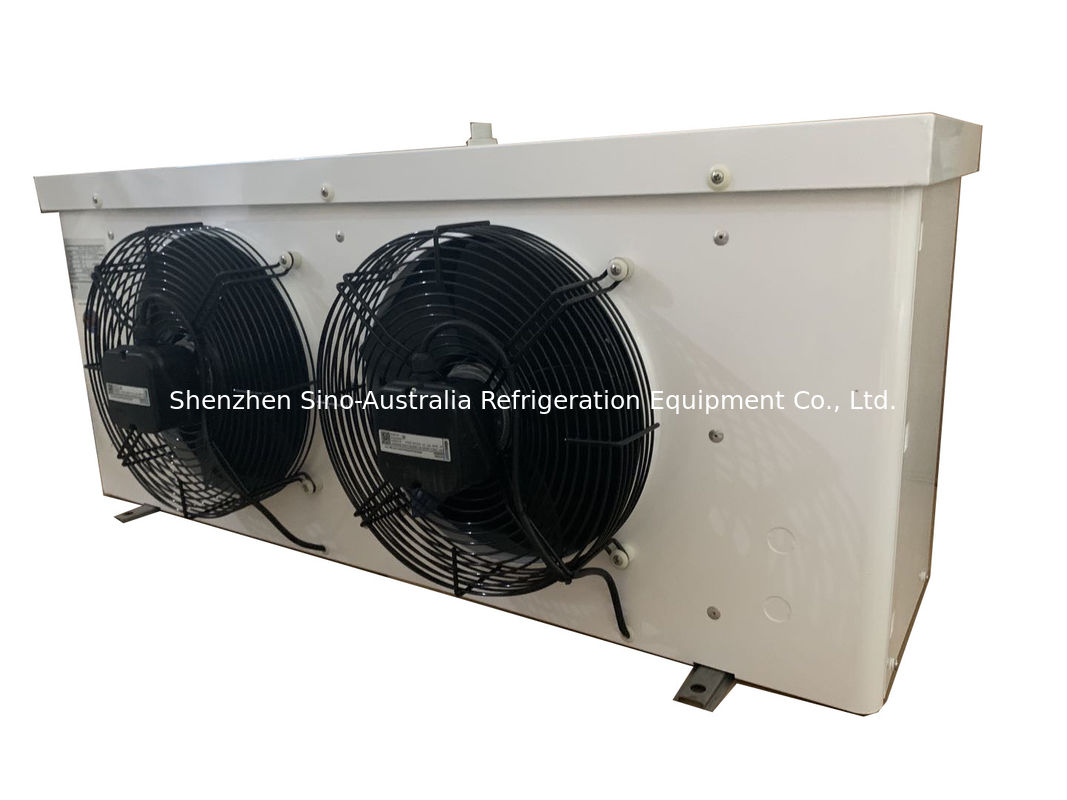

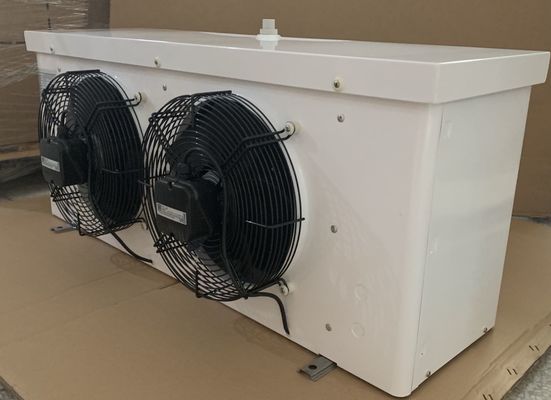

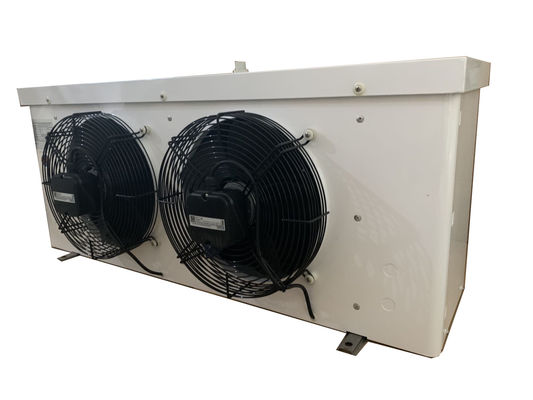

Low Temperature Rt≥-25℃ Air Cooler Evaporator Fin Spacing 9mm With Heater Powder Coated Aluminium Ceiling Mounted
1. Can be with EMB motor if needed
2. Aluminum / White painted / Stainless steel cover are optional
Specifications:
| Low Temp Series - Fin spacing 9mm, with heaters Rt ≥-25℃ | ||||||
| Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
| te= -8℃ | te= -25℃ | Inlet | Outlet | |||
| DT1=8K | DT1=7K | |||||
| CM-2501-04-9D | 1.8 L | 0.98 | 0.69 | 4 | 12 | 16 |
| CM-2502-08-9D | 3.2 L | 2.07 | 1.66 | 8 | 12 | 19 |
| CM-2503-12-9D | 4.7 L | 3.12 | 2.51 | 12 | 12 | 22 |
| CM-2504-16-9D | 6.1 L | 4.08 | 3.21 | 16 | 12 | 22 |
| CM-2506-24-9D | 8.7 L | 6.19 | 5.04 | 24 | 15 | 28 |
| CM-3001-06-9D | 2.4 L | 1.59 | 1.38 | 6 | 12 | 19 |
| CM-3002-10-9D | 4.3 L | 3.17 | 2.68 | 10 | 12 | 22 |
| CM-3003-16-9D | 6.2 L | 4.79 | 3.92 | 16 | 12 | 22 |
| CM-3004-21-9D | 8.2 L | 6.32 | 5.13 | 21 | 15 | 28 |
| CM-3006-31-9D | 11.6 L | 7.4 | 5.93 | 31 | 15 | 28 |
| CM-4001-09-9D | 3.5L | 3.43 | 2.83 | 9 | 12 | 19 |
| CM-4002-18-9D | 7.2L | 6.76 | 5.47 | 18 | 12 | 22 |
| CM-4003-24-9D | 9.6L | 9.62 | 7.54 | 24 | 15 | 28 |
| CM-4004-36-9D | 14.4L | 13.11 | 10.17 | 36 | 15 | 35 |
| CM-4501-14-9D | 5.5 L | 4.79 | 3.99 | 14 | 12 | 22 |
| CM-4502-28-9D | 10.5 L | 10.92 | 8.7 | 28 | 15 | 28 |
| CM-4503-41-9D | 15.5 L | 15.85 | 12.19 | 41 | 15 | 35 |
| CM 5001 17 9D | 7.1L | 6.92 | 5.64 | 17 | 15 | 28 |
| CM 5001 26 9D | 10.6L | 8.93 | 7.24 | 26 | 15 | 28 |
| CM 5002 36 9D | 14L | 13.85 | 10.99 | 36 | 22 | 35 |
| CM 5002 54 9D | 21L | 17.73 | 14.24 | 54 | 22 | 35 |
| CM 5003 54 9D | 21.1L | 20.88 | 16.52 | 54 | 28 | 42 |
| CM 5003 82 9D | 31.5L | 26.69 | 21.37 | 82 | 28 | 42 |
Marks:
* Optional model without heater available.
* Evaporator with Glycol gas available.
* Golden fins with highly anti-corrosion strength available.
* Double trays available.
* Silica gel heater for fan motor with Long-Nozzle available.
Should you have any question, feel free to contact.
| Low Temp Series - Fin spacing 9mm, with heaters Rt ≥-25℃ | ||||||
| Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
| te= -8℃ | te= -25℃ | Inlet | Outlet | |||
| DT1=8K | DT1=7K | |||||
| CM-2501-04-9D | 1.8 L | 0.98 | 0.69 | 4 | 12 | 16 |
| CM-2502-08-9D | 3.2 L | 2.07 | 1.66 | 8 | 12 | 19 |
| CM-2503-12-9D | 4.7 L | 3.12 | 2.51 | 12 | 12 | 22 |
| CM-2504-16-9D | 6.1 L | 4.08 | 3.21 | 16 | 12 | 22 |
| CM-2506-24-9D | 8.7 L | 6.19 | 5.04 | 24 | 15 | 28 |
| CM-3001-06-9D | 2.4 L | 1.59 | 1.38 | 6 | 12 | 19 |
| CM-3002-10-9D | 4.3 L | 3.17 | 2.68 | 10 | 12 | 22 |
| CM-3003-16-9D | 6.2 L | 4.79 | 3.92 | 16 | 12 | 22 |
| CM-3004-21-9D | 8.2 L | 6.32 | 5.13 | 21 | 15 | 28 |
| CM-3006-31-9D | 11.6 L | 7.4 | 5.93 | 31 | 15 | 28 |
| CM-4001-09-9D | 3.5L | 3.43 | 2.83 | 9 | 12 | 19 |
| CM-4002-18-9D | 7.2L | 6.76 | 5.47 | 18 | 12 | 22 |
| CM-4003-24-9D | 9.6L | 9.62 | 7.54 | 24 | 15 | 28 |
| CM-4004-36-9D | 14.4L | 13.11 | 10.17 | 36 | 15 | 35 |
| CM-4501-14-9D | 5.5 L | 4.79 | 3.99 | 14 | 12 | 22 |
| CM-4502-28-9D | 10.5 L | 10.92 | 8.7 | 28 | 15 | 28 |
| CM-4503-41-9D | 15.5 L | 15.85 | 12.19 | 41 | 15 | 35 |
| CM 5001 17 9D | 7.1L | 6.92 | 5.64 | 17 | 15 | 28 |
| CM 5001 26 9D | 10.6L | 8.93 | 7.24 | 26 | 15 | 28 |
| CM 5002 36 9D | 14L | 13.85 | 10.99 | 36 | 22 | 35 |
| CM 5002 54 9D | 21L | 17.73 | 14.24 | 54 | 22 | 35 |
| CM 5003 54 9D | 21.1L | 20.88 | 16.52 | 54 | 28 | 42 |
| CM 5003 82 9D | 31.5L | 26.69 | 21.37 | 82 | 28 | 42 |
Marks:
