| Place of Origin: | China |
| Brand Name: | Emerson Copeland |
| Certification: | CE / CCC |
| Model Number: | ZSI06KQE 2HP |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiate |
| Packaging Details: | wooden case |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
| Compressor: | Copeland Scroll | Cooling Type: | Air-cold |
|---|---|---|---|
| Temperature: | Low Temperature | Function: | Refrigeration And Freeze |
| Power: | 380V/3PH/50HZ, 460V/60Hz | Condition: | Brand New |
| Name: | Cold Room Refrigeration Unit | Refrigerant: | R404a |
| High Light: | 2HP Cold Room Refrigeration Equipment,HCFC Cold Room Refrigeration Equipment,ZSI06KQE Cold Room Condenser |
||

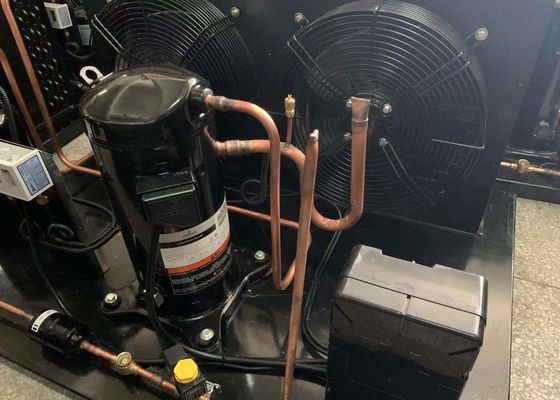

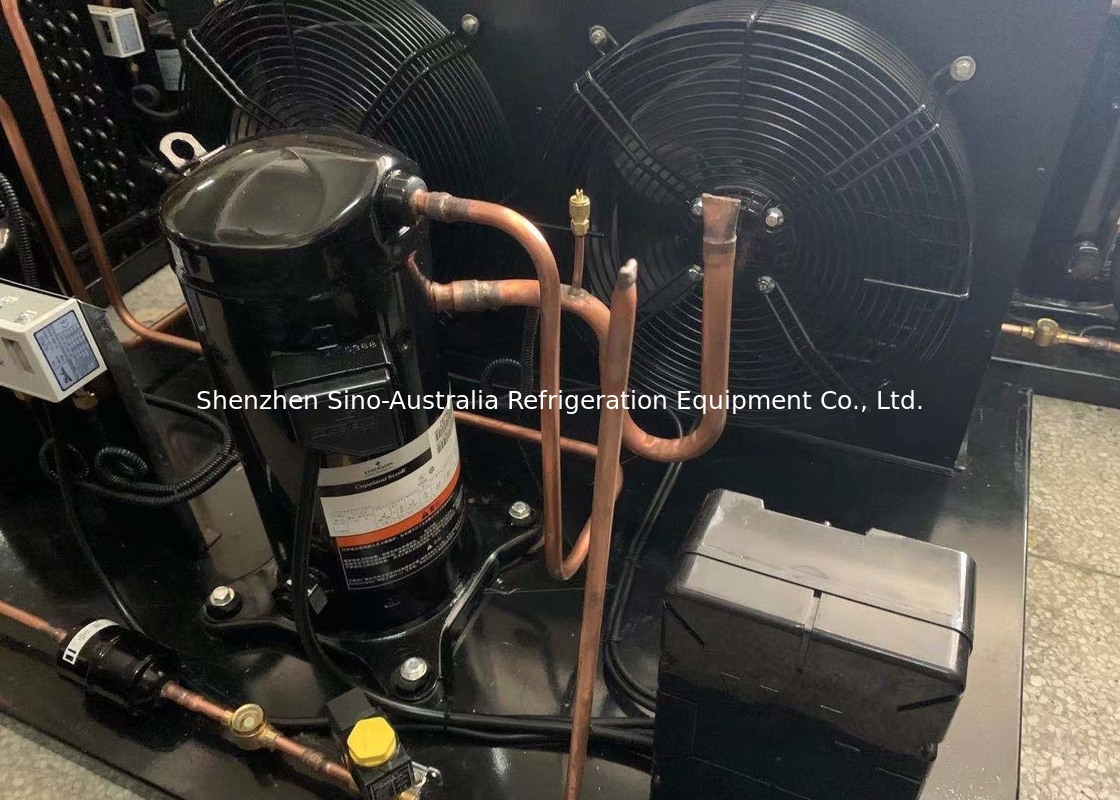

ZSI06KQE 2HP Low Temp -10℃ To -40℃ Freezer Room Refrigeration Unit Emerson Copeland Scroll Condensing Unit

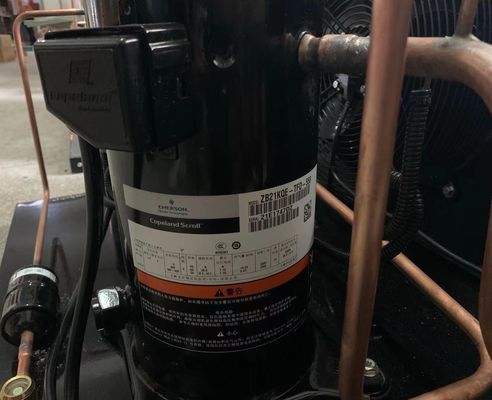

Compressor: Copeland scroll ZSI06KQE
Capacity:2HP
Refrigerant:R404a
Voltage:380V/3PH/50HZ,460V/60Hz
Temp range : -10℃ to -40℃, can be used for 8-12 m³ cold room
Description
Features
Specifications
| Condensing unit | Displacement | Max.Oper. Current | Fan Qty | Air flow | Overall Dimension | Tube Connection | Gross Weight | |||
| m3/h | A | No. | m3/h | L (mm) | W (mm) | H (mm) | SL inc | FL inc | Kg | |
| ZSI09KQE | 8.04 | 2 | 1 | 3150 | 570 | 700 | 440 | 3/4" | 3/8" | 60 |
| ZSI11KQE | 9.95 | 3 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 76 |
| ZSI15KQE | 14.37 | 3 | 1 | 5580 | 735 | 700 | 540 | 7/8" | 3/8" | 79 |
| ZSI18KQE | 17.06 | 6 | 1 | 5580 | 735 | 700 | 540 | 7/8" | 1/2" | 84 |
| ZSI21KQE | 20.9 | 14 | 2 | 11160 | 1190 | 800 | 650 | 1 1/8" | 5/8" | 176 |
The theoretical displacement when the compressor revolving speed is 2900rpm.
The maximum of the allowed lowest voltage (50Hz)
