| Place of Origin: | China |
| Brand Name: | Emerson Copeland |
| Certification: | CE / CCC |
| Model Number: | 6HP |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiate |
| Packaging Details: | wooden case |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
| Compressor: | Copeland Scroll ZB Series | Cooling Type: | Air-Cold |
|---|---|---|---|
| Temperature: | High / Medium Temperature | Function: | Refrigeration |
| Power: | 380V/3PH/50HZ, 460V/60Hz | Condition: | Brand New |
| Name: | Chiller Room Refrigeration | Refrigerant: | R404a |
| High Light: | 7HP Scroll Condensing Unit,Copeland Scroll Condensing Unit,ZB48KQE Cold Room Chiller Unit |
||

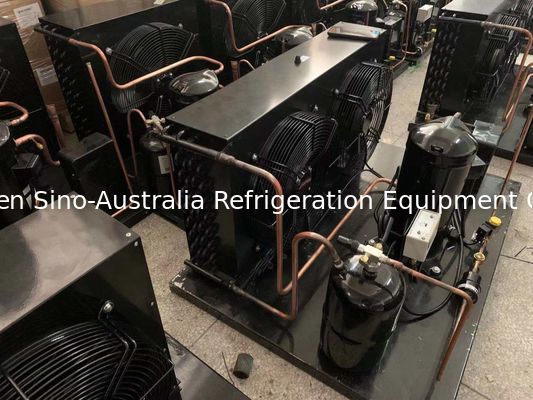

ZB48KQE 7HP Copeland Scroll Condensing Unit High Chiller Room Refrigeration System
Compressor: Copeland scroll ZB48KQE
Capacity:7HP
Refrigerant:R404a
Voltage:380V/3PH/50HZ,460V/60Hz
Temp range : 5℃ to -10℃
Description
Emerson Copeland refrigeration condensing units (CDU) specifically designed for medium temperature (MT) and low temperature (LT) refrigeration. Emerson’s CDU range comes with unique features and applies its advanced and patented scroll technologies that redefine the standards of efficiency and reliability for this category of products.
The compressor reversing of the Copeland scroll unit is not allowed. After the running of the economic type unit with three-phase charge, if the noise is too loud, the sniffer tube is not cold and the exhaust pipe is not hot, then the unit must be turn off to check for the possibility of compressor reversing.
Features
1. With fan speed regulator, to adjust condensing fan according to condensing temp.
2. With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.
3. With system alarm function. When fault effects, the system will make alarm beep sound to remind user.
4. The operation board can show temp. setting, defrosting control, operation system data checking and cold room temp. alarm functions. It can be installed apart from condensing units for remote control.
Specifications
| Condensing unit | Displacement | Max.Oper. Current | Fan Qty | Air flow | Overall Dimension | Tube Connection | Gross Weight | |||
| m3/h | A | No. | m3/h | L (mm) | W (mm) | H (mm) | SL inc | FL inc | Kg | |
| ZB15KQE | 5.9 | 6.48 | 1 | 4235 | 700 | 675 | 505 | 3/4" | 3/8" | 65 |
| ZB19KQE | 6.8 | 6.58 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 70 |
| ZB21KQE | 8.6 | 8358 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 72 |
| ZB26KQE | 9.9 | 10.58 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 76 |
| ZB29KQE | 11.4 | 11.85 | 1 | 7620 | 735 | 700 | 800 | 7/8" | 3/8" | 90 |
| ZB38KQE | 14.5 | 13.35 | 1 | 7620 | 735 | 700 | 800 | 7/8" | 3/8" | 98 |
| ZB45KQE | 17.2 | 16.95 | 1 | 7620 | 735 | 700 | 800 | 7/8" | 1/2" | 100 |
| ZB48KQE | 18.8 | 18.16 | 2 | 11160 | 1190 | 800 | 800 | 7/8" | 1/2" | 145 |
| ZB58KQE | 22.1 | 24.16 | 2 | 11160 | 1190 | 800 | 700 | 1 1/8" | 5/8" | 182 |
| ZB66KQE | 25.7 | 25.36 | 2 | 11160 | 1190 | 800 | 700 | 1 3/8" | 5/8" | 201 |
| ZB76KQE | 28.8 | 28.60 | 2 | 15240 | 1400 | 800 | 860 | 1 3/8" | 5/8" | 217 |
| ZB95KQE | 36.4 | 32.70 | 2 | 22320 | 1620 | 800 | 1250 | 1 3/8" | 5/8" | 237 |
| ZB114KQE | 43.4 | 40.32 | 2 | 22320 | 1190 | 800 | 1250 | 1 3/8" | 5/8" | 280 |
| ZSI09KQE | 8.04 | 2 | 1 | 3150 | 570 | 700 | 440 | 3/4" | 3/8" | 60 |
| ZSI11KQE | 9.95 | 3 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 76 |
| ZSI15KQE | 14.37 | 3 | 1 | 5580 | 735 | 700 | 540 | 7/8" | 3/8" | 79 |
| ZSI18KQE | 17.06 | 6 | 1 | 5580 | 735 | 700 | 540 | 7/8" | 1/2" | 84 |
| ZSI21KQE | 20.9 | 14 | 2 | 11160 | 1190 | 800 | 650 | 1 1/8" | 5/8" | 176 |
The theoretical displacement when the compressor revolving speed is 2900rpm.
The maximum of the allowed lowest voltage (50Hz)
