| Place of Origin: | China |
| Brand Name: | Alco |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | TIE-SW |
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per weeks |
| Packing: | Individual Box | Material: | Copper |
|---|---|---|---|
| Application: | Coldroom Evaporators | Name: | Thermostatic Expansion Valve |
| Refrigerant: | R404a,R134a,R407,R22 | Fuction: | Control Flow |
| High Light: | Alco Thermostatic Expansion Valve,R404a Thermostatic Expansion Valve,Coldroom Evaporators Refrigeration Solenoid Valve |
||

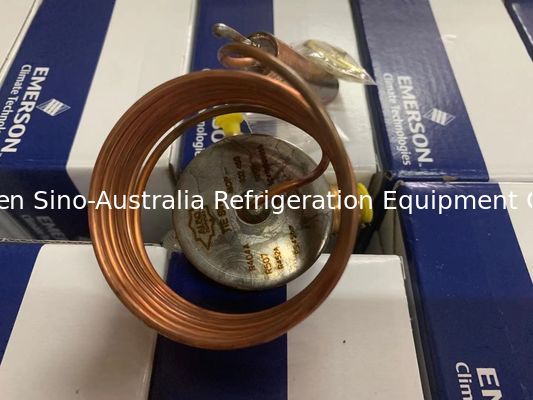

1. Also(Emerson) TI valves design for refrigeration, special used for showcase, refrigerator, cake cabinet,ice maker etc.
2. There are models for R22, R134a, R404a, R407c, R410a refrigerant.
3. Features:
a). Laser-welded diaphragm with large diameter for high reliability and maximum lifetime.
b).Constant superheat across wide application rangesEasy and precise superheat setting by modified threads
c).TI valvs with stainless steel fittings allow brazing without wet rags
e).with capacities between 0.4KW and 14.2KW (R404a) ideally suited for service work.
f).Internal or externalequalizer
e).Brazing and flare connection available
g).Brazing and flare connection available
h).Capillary tube length 1.5m
i).PS:45bar. TS:-45... +75C
| Orifice model | TIO- | 00X | 000 | 001 | 002 | 003 | 004 | 005 | 006 | Eva Temp 0C | |
| model | freon | Equalizer type | Cooling Capacity | ||||||||
| TI-MW | R134a | internal equalizer | 0.3 | 0.8 | 1.9 | 3.1 | 5.0 | 8.3 | 10.1 | 11.7 | -45~ +20 |
| TIE-MW | external equalizer | -45~ +10 | |||||||||
| TI-HW | R22 | internal equalizer | 0.5 | 1.3 | 3.2 | 5.3 | 8.5 | 13.9 | 16.9 | 19.5 | -45~ +20 |
| TIE-HW | external equalizer | -45~ +13 | |||||||||
| TI-SW | R404a | internal equalizer | 0.4 | 1.0 | 2.3 | 3.9 | 6.2 | 10.1 | 12.3 | 14.2 | -45~ +20 |
| TIE-SW | external equalizer | -45~ + -3 | |||||||||
| TI-NW | R407a | internal equalizer | 0.5 | 1.4 | 3.5 | 5.7 | 9.2 | 15.0 | 18.3 | 21.1 | -45~ +20 |
| TIE-NW | external equalizer | -45~ +20 | |||||||||
| TI-ZW | R410a | internal equalizer | 0.6 | 1.5 | 3.7 | 6.2 | 9.9 | 16.2 | 19.7 | 22.8 | -45~ +20 |
| TIE-ZW | external equalizer | -45~ +15 | |||||||||
