220V 50Hz Refrigeration Compressor Unit 4DES-5Y 5HP Cold Storage Refrigeration Units

220V 50Hz Refrigeration Compressor Unit 4DES-5Y 5HP Cold Storage Refrigeration Units

220V 50Hz Refrigeration Compressor Unit 4DES-5Y 5HP Cold Storage Refrigeration Units
video
220V 50Hz Refrigeration Compressor Unit 4DES-5Y 5HP Cold Storage Refrigeration Units
Product Details:
Place of Origin: China
Brand Name: Semi-hermetic
Certification: CE
Model Number: 4DES-5Y 5HP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: wooden case
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Compressor: Semi-hermetic Reciprocating Cooling Type: Air Cooled Or Water Cooled
Temperature: High,Medium And Low Temperature Function: Refrigeration
Power: 220V/50Hz,380V/50/60Hz Condition: Brand New
Name: Refrigeration Unit Refrigerant: R404a,R134a,R407,R22
High Light:

220V 50Hz Refrigeration Compressor Unit

,

4DES-5Y Cold Storage Refrigeration Units

,

CE 5HP Cold Storage Refrigeration Units

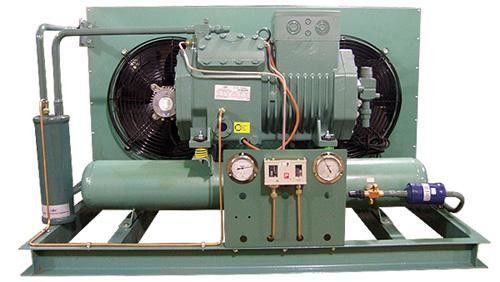

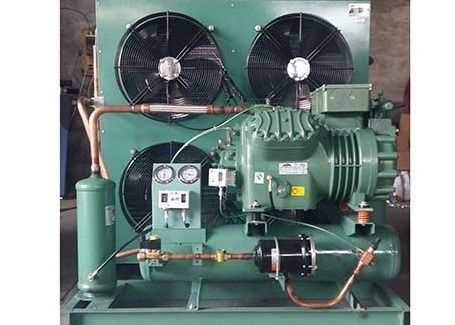

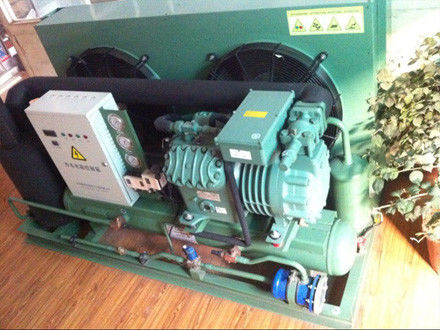

R404a 4DES-5Y 5HP Air Cooled Condensing Units With Semi-Hermetic Compressor Used For Chiller And Freezer


Products for refrigerants with low greenhouse warming potential (GWP).

Products with high efficiency in full and part load- Efficiency improvements of motor and mechanics,High system efficiency in part load operation.

Simple handling and serviceability with advanced electronic modules

Features:

1. Euiped with original Germany  brand new semi-Hermetic compressor, Horse Power from 2HP to 50HP.

2. Voltage can be both 380V/50HZ/3Phase and 440-480V/60HZ/3PH.

3. Open type condensing unit, it is easy for installation and maintenance.

4. Cooling Type: Air-cooled ( can be water-cooled if needed).

5. Used for wide range temperature, from 5℃ to -30 ℃, can used for high, medium and low temperature coldroom, storage freezer.

6. High efficiency, Good reliability, Low noise, Low vibration, No leakage.

7. The unit can be used for R22, R134a, R404a, R407b and R407c refrigerant (gas).

8. Excellent performance: The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.

9. Accessories: all are world-famous brands, such as Danfoss brand filter, pressure control, hand valve,solenoid valve, sight glass, vibration eliminator, oil separator,oil gauge, condenser with fan motor etc.(if need anticorrosion design, the condenser fin and screw fittings will use stainless steel specifications)

10.Reliable safety device : The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.

Specifications:

Based on -15℃ evaporating temperature and 18℃  suction temperature and 0℃ K subcooling for the liquid refrigerant.
Application Model Horse Power Applicable coldroom
High temp 2HES-2Y 2HP Chiller room
High temp 2GES-2Y 2HP Chiller room
High temp 2FES-3Y 3HP Chiller room
High temp 2EES-3Y 3HP Chiller room
High temp 2DES-3Y 3HP Chiller room
High temp 2CES-4Y 4HP Chiller room
High temp 4FES-5Y 5HP Chiller room
High temp 4EES-6Y 6HP Chiller room
High temp 4DES-7Y 7HP Chiller room
High temp 4CES-9Y 9HP Chiller room
High temp 4VES-10Y 10HP Chiller room
High temp 4TES-12Y 12HP Chiller room
High temp 4PES-15Y 15HP Chiller room
High temp 4NES-20Y 20HP Chiller room
High temp 4HE-25Y 25HP Chiller room
High temp 4GE-30Y 30HP Chiller room
High temp 6HE-35Y 35HP Chiller room
Low temp 2FES-2Y 2HP Freezer room
Low temp 2EES-2Y 2HP Freezer room
Low temp 2DES-2Y 2HP Freezer room
Low temp 2CES-3Y 3HP Freezer room
Low temp 4FES-3Y 3HP Freezer room
Low temp 4EES-4Y 4HP Freezer room
Low temp 4DES-5Y 5HP Freezer room
Low temp 4CES-6Y 6HP Freezer room
Low temp 4TES-9Y 9HP Freezer room
Low temp 4PES-12Y 12HP Freezer room
Low temp 4NES-14Y 14HP Freezer room
Low temp 4HE-18Y 18HP Freezer room
Low temp 4GE-23Y 23HP Freezer room
Low temp 6HE-28Y 28HP Freezer room
Low temp 6GE-34Y 34HP Freezer room
Low temp 6FE-44Y 44HP Freezer room


Packing: each unit with a separate plywood wooden case.
