| Place of Origin: | China |
| Brand Name: | Castel |
| Certification: | CE/ROHS |
| Model Number: | 1064/4 |
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per weeks |
| Packing: | Individual Box | Quality: | Original Brand New |
|---|---|---|---|
| Material: | Copper | Condition: | New |
| Application: | Refrigeration Unit | Name: | Castel Solenoid Valve |
| Refrigerant: | R404a,R134a | Fuction: | Control Flow |
| Highlight: | 1064/4 Castel Solenoid Valve,Copper Castel Solenoid Valve,1064/4 Solenoid Valve In Refrigeration System |
||

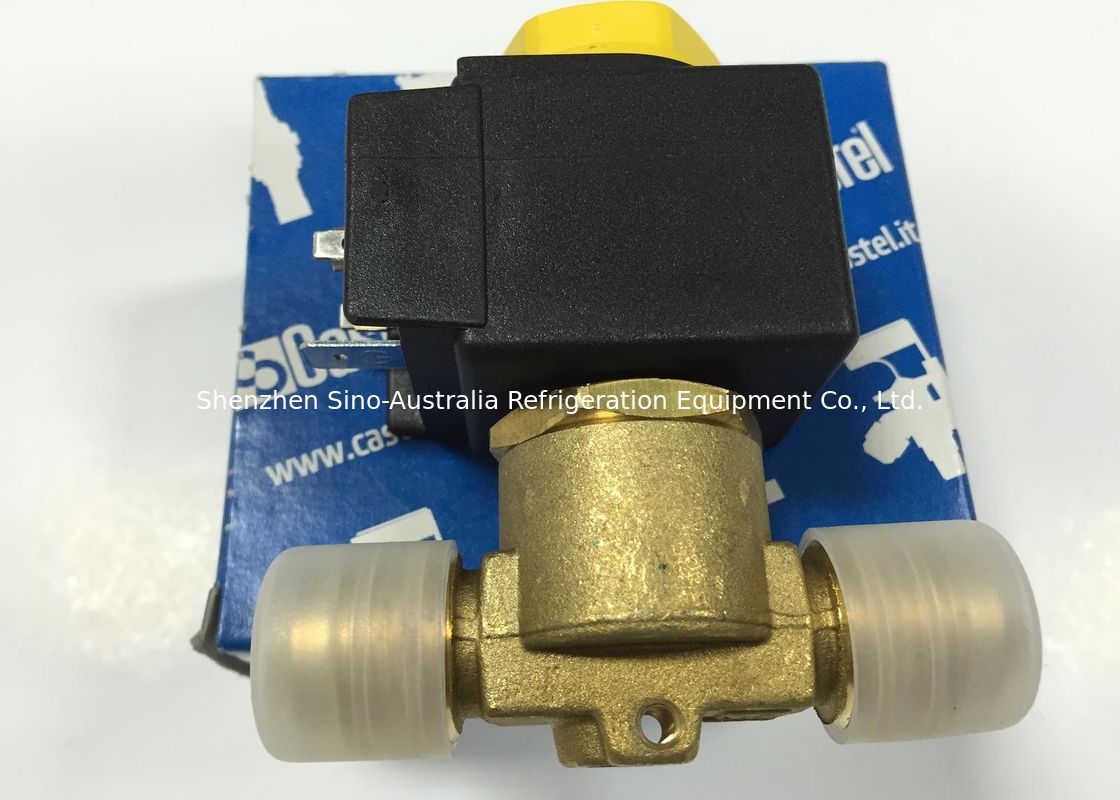

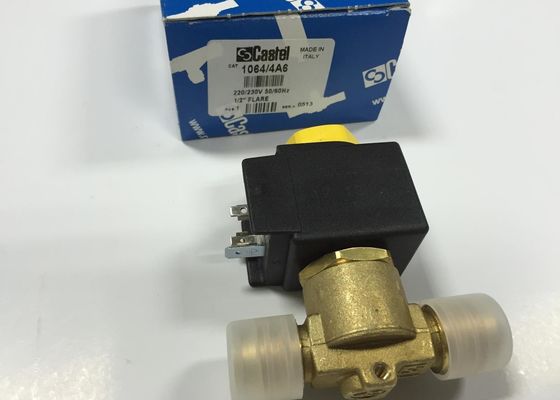

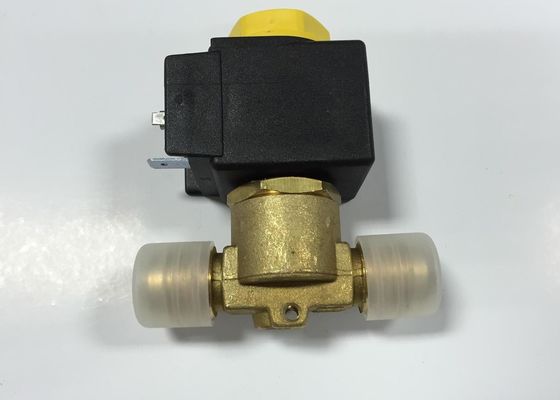

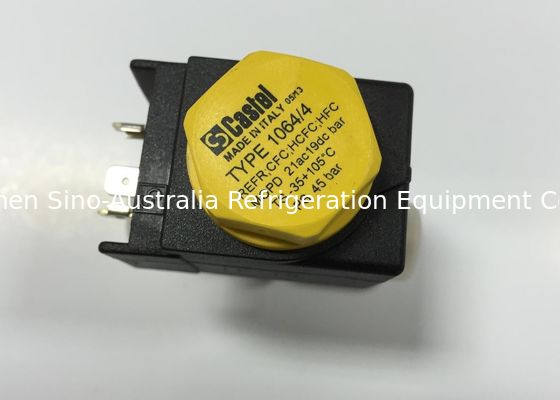

1064/4A6 Castel Solenoid Valve For Refrigeration / Air Conditioning System Refrigeration Unit,Condensing Unit
FEATURES:
1. Max working differential pressure 21bar
2. Max working pressure 30bar
3. Suitable for 22,R404a,R134a,R502 refrigerant CFC HFC HFC
4. Medium temperature 10W or 12W COIL:-40 ~ + 105 °C defrost period temperature: 130 °C
Specifications
| Model | Connection | Aperture | Max differential pressure | Max Working pressure | KV m³/hr | Normial cooling capacity (KW) | ||
| mm | bar | bar | R22 | R404a/R502 | R134a | |||
| 1020/2 | 1/4" flare | 2.5 | 21 | 30 | 0.175 | 3.15 | 2.08 | 2.95 |
| 1020/3 | 3/8" flare | 3 | 21 | 30 | 0.23 | 4.15 | 2.75 | 3.9 |
| 1028/3 | 3/8" ODS | 3 | 21 | 30 | 0.23 | 4.15 | 2.75 | 3.9 |
| 1064/3 | 3/8" flare | 7 | 21 | 30 | 0.8 | 14.5 | 9.5 | 13.5 |
| 1064/4 | 1/2" flare | 7 | 21 | 30 | 0.8 | 14.5 | 9.5 | 13.5 |
| 1070/4 | 1/2" flare | 12.5 | 21 | 30 | 2.2 | 39.6 | 26.2 | 37.1 |
| 1070/5 | 5/8" flare | 12.5 | 21 | 30 | 2.61 | 47 | 31 | 44 |
| 1090/5 | 5/8" flare | 16.5 | 21 | 30 | 3.8 | 68.5 | 45.2 | 64 |
| 1070/6 | 3/4" flare | 17 | 21 | 30 | 4.3 | 77.5 | 51.2 | 72.45 |
| 1090/6 | 3/4" flare | 16.5 | 21 | 30 | 5.7 | 102.6 | 67.85 | 96 |
| 1028/2 | 1/4" ODS | 2.2 | 21 | 30 | 0.15 | 2.7 | 1.8 | 2.55 |
| 1068/3 | 3/8" ODS | 7 | 21 | 30 | 0.8 | 14.5 | 9.5 | 13.5 |
| 1068/4 | 1/2" ODS | 7.7 | 21 | 30 | 0.8 | 14.5 | 9.5 | 13.5 |
| 1078/4 | 1/2" ODS | 12.5 | 21 | 30 | 2.2 | 39.6 | 26.2 | 37.14 |
| 1078/5 | 5/8" ODS | 12.5 | 21 | 30 | 2.61 | 47 | 31 | 44 |
| 1098/5 | 5/8" ODS | 16.5 | 21 | 30 | 3.8 | 68.5 | 45.2 | 64 |
| 1078/6 | 3/4" ODS | 17.0 | 21 | 30 | 4.3 | 77.5 | 51.1 | 72.45 |
| 1098/6 | 3/4" ODS | 16.5 | 21 | 30 | 5.7 | 102.6 | 67.85 | 96 |
| 1098/7 | 7/8" ODS | 16.5 | 21 | 30 | 5.7 | 102.6 | 6.785 | 96 |
| 1078/9 | 1-1/8" ODS | 25.5 | 21 | 30 | 10 | 180 | 119 | 168.5 |
| 1079/7 | 7/8" ODS | 12.5 | 21 | 30 | 2.61 | 47 | 31 | 44 |
| 1099/9 | 1-1/8" ODS | 16.5 | 21 | 30 | 5.7 | 102.6 | 67.85 | 96 |
| 1079/11 | 1-3/8" ODS | 25.5 | 21 | 30 | 10 | 180 | 119 | 168.5 |
| 1079/13 | 1-5/8" ODS | 27 | 21 | 30 | 16 | 288 | 190.5 | 269.5 |
.
