3HP Semi Hermetic Compressor 4FES-3Y For Freezer Chiller Room

Product Details:

Place of Origin:	China
Certification:	CE / CCC
Model Number:	4FES-3Y

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	Wooden Case
Delivery Time:	4-6 weeks
Payment Terms:	T/T
Supply Ability:	500pcs per weeks

Contact Now

Detailed Product Description

Type:	Semi Hermetic Reciprocating	Application:	Refrigeration
Refrigerant:	R404a,R134a,R407,R22	Series:	C1 To C8
Power:	380-420V/50Hz,440-480V/60Hz	Condition:	Brand New
Packing:	Wooden Case	Origin:	China
High Light:	4FES-3Y Semi Hermetic Reciprocating Compressor , 3HP Compressor Semi Hermetic Type , Semi Hermetic Reciprocating Compressors

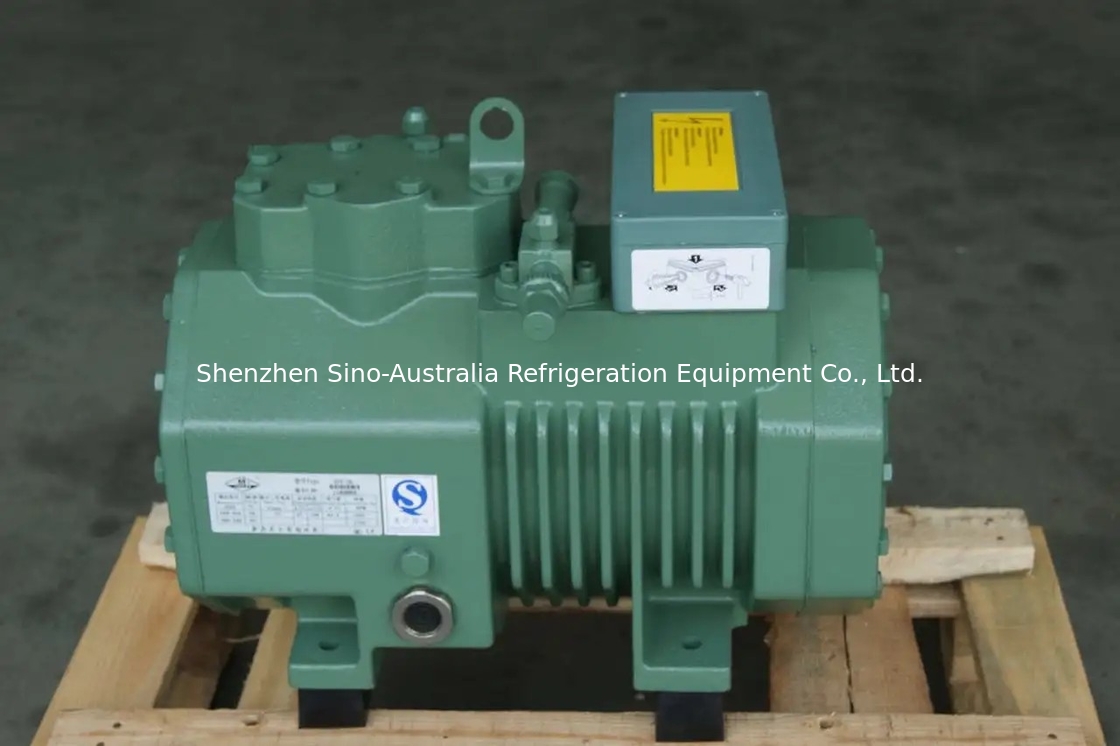

3HP Semi-Hermetic Compressor 4FES-3Y For Freezer Chiller Room

Technical and Performance Data

Compressor type	Motor version	Displacement at 1450 min-1	Number of cylinders	Refrigerating capacity Qo				Oil charge	Weight	Pipe connections		Motor	Max. operating current	Max. power consumption	I FI 70 Hz
		Displacement at 1450 min-1		R134a		R404A		Oil charge	Weight	DL	SL	Motor	Max. operating current	Max. power consumption	I FI 70 Hz
		m3/h		W	W	W	W	dm3	kg	mm	mm	➁	A	kW	A
4FES-3(Y)	2	18,1	4	9440	5080	9100	3030	2,0	82	16	22	∆ / Y	16,5/9,5	5,3	-

semi-hermetic reciprocating compressors are Germany brand, made in Beijing factory, which are application for refrigeration or air conditioning plants. They can be used for cold room, freezer room etc.

Features

1. Universally application

One compressor version for R134a,R404a,R507a,R407c and R22. Can be used for air-conditioning, for medium and low temperature applications.

2. Large application range

Low temperature refrigeration with R404a/R507a over a wide range without additional cooling possible. Varicool for low temperature refrigeration with R22.

3. Energy efficient

High cooling capacity and minimal energy requirements through: highly efficient working valves, minimal dead space, efficient, large volume motor.

4.Quiet and low vibration

Optimised mass balance, integrated pulsation mufflers

5. Robust

Solid vavle plate design, valve reeds of impact resistant spring steel.

6. Electronic compressor protection

Thermal motor monitoring by PTC sensors, optional discharge gas temerature sensor

Ordering Specifications for your referance

Model	Displ. @1450r/min	Cylinders	Oil charge	Weight	Discharge line		Suction line
Model	m³/h	Cylinders	dm³	Kg	mm	in	mm	in
2KES-05Y	4.06	2	1	43	12	1/2"	16	5/8"
2JES-07Y	5.21	2	1	43	12	1/2"	16	5/8"
2HES-1Y	6.51	2	1	44	12	1/2"	16	5/8"
2HES-2Y	6.51	2	1	45	12	1/2"	16	5/8"
2GES-2Y	7.58	2	1	45	12	1/2"	16	5/8"
2FES-2Y	9.54	2	1	45	12	1/2"	16	5/8"
2FES-3Y	9.54	2	1	47	12	1/2"	16	5/8"
4FES-3Y	18.1	4	2	82	16	5/8”	22	7/8”
4FES-5Y	18.1	4	2	86	16	5/8”	22	7/8”
4EES-4Y	22.7	4	2	84	16	5/8”	28	1 1/8”
4EES-6Y	22.7	4	2	86	16	5/8”	28	1 1/8”
4DES-5Y	26.8	4	2	86	22	7/8”	28	1 1/8”
4DES-7Y	26.8	4	2	89	22	7/8”	28	1 1/8”
4CES-6Y	32.5	4	2	91	22	7/8”	28	1 1/8”
4CES-9Y	32.5	4	2	91	22	7/8”	28	1 1/8”
4VES-6Y	34.7	4	2.6	129	22	7/8”	28	1 1/8”
4VES-7Y	34.7	4	2.6	129	22	7/8”	28	1 1/8”
4VES-10Y	34.7	4	2.6	139	22	7/8”	28	1 1/8”
4TES-8Y	41.3	4	2.6	134	28	1 1/8”	35	1 3/8”
4TES-9Y	41.3	4	2.6	134	28	1 1/8”	35	1 3/8”
4TES-12Y	41.3	4	2.6	414	28	1 1/8”	35	1 3/8”
4PES-10Y	48.5	4	2.6	139	28	1 1/8”	35	1 3/8”
4PES-12Y	48.5	4	2.6	139	28	1 1/8”	35	1 3/8”
4PES-15Y	48.5	4	2.6	147	28	1 1/8”	42	1 5/8”
4NES-12Y	56.2	4	2.6	141	28	1 1/8”	35	1 3/8”
4NES-14Y	56.2	4	2.6	141	28	1 1/8”	35	1 3/8”
