Place of Origin: | China |
Brand Name: | Oasis |
Certification: | CCC |
Model Number: | 75mm, 100mm,150mm |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiate |
Packaging Details: | carton |
Delivery Time: | 5-6 weeks |
Payment Terms: | T/T |
Supply Ability: | 100 set per week |
Material: | Stainless Steel , Colorbond Steel | Steel Thickness: | 0.6mm,0.8mm,1.0mm,1.2mm,1.5mm Etc |
---|---|---|---|
Panel Thickness: | 50mm, 75mm,100mm,150mm | Corner Type: | Square Or Curve Corner |
Floor Type: | Walk-in Or Recessed Type | Condition: | Brand New |
After-sale Service: | Online Support | Density: | 42KG/M3 |
Temperature: | High,Medium And Low Temperature | Dimension(L*W*H): | Customized |
High Light: | Colorbond Steel Walk In Cold Room,Thickness 150mm Walk In Cold Room,CCC Modular Cold Rooms |

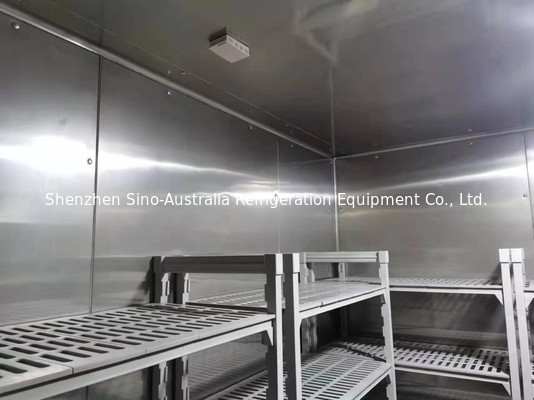

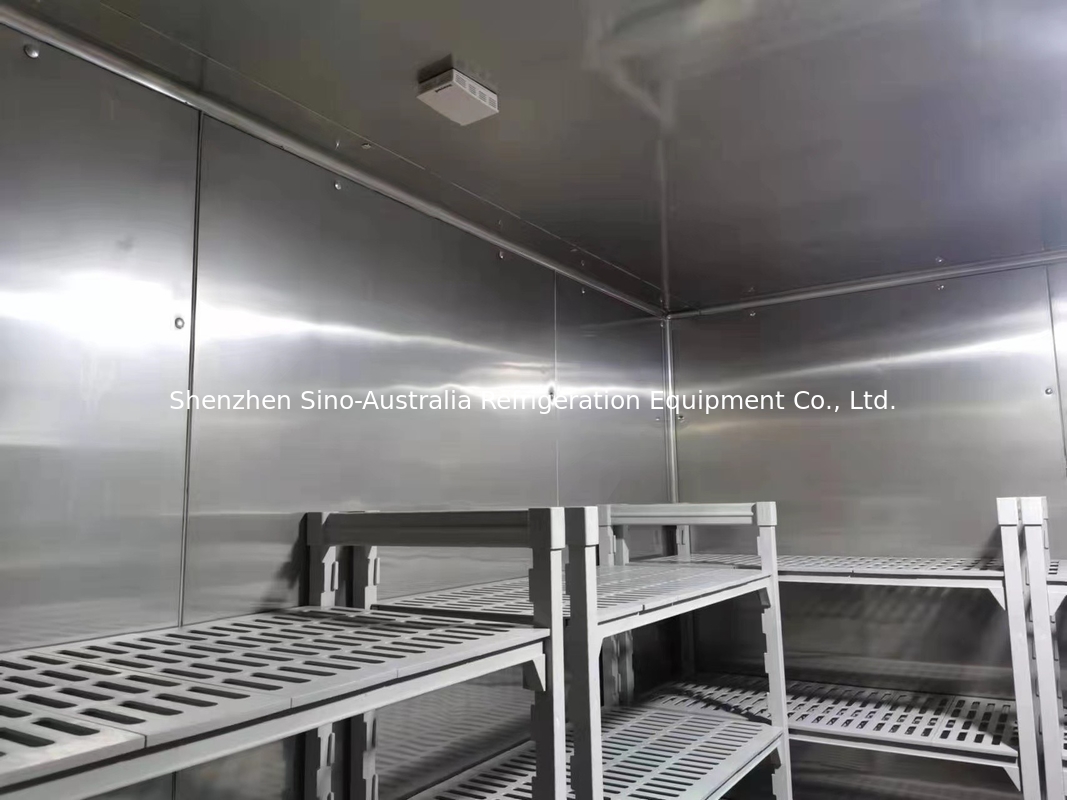

Customized Combined Walk In Cold Room, Sandwich Panel Thickness 75mm 100mm 150mm
We can design and manufacture according to your request. The coldrooms can be used for hotel, warehouse, cold chain, logistics etc. If you have any project related, please tell me your specifications.
Features:
1. Panels with camlocks and tongue and groove joint, easy to install
2. Panel density reach up at 42KG.
3. We can do hidden floor and ceiling if needed.
4. Room inside corners can be curved corner radius 10mm.
5. Thermal conductivity:0.018-0.023w/(m.k), to ensure the panel thermal insulation properities.
6. Door option part: view window,alarm,PVC curtains, air curtains,controls.
7. Coldroom doors fabricated heaters inside to avoid door frozen and can't open it.
8. Doors bottom with rubbles to ensure sealing property.
Description
1. Materials - All kinds of materials coldroom for your referance. Generally, stainless steel coldroom often used for 5 star hotel. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.
Detail Standard Face plate | According to GB/T23932-2009 double skin metal faced insulating panels for builing | ||||||
According to JB/T6527-2006 The sandwich panels use for prefab cold room | |||||||
Metal steel face plate (exterior +interior) | Metal steel plate thickness | PU Thickness (mm) | |||||
50 | 75 | 100 | 120 | 150 | 200 | ||
Colorbond steel + Colorbond steel | 0.4-0.8 | √ | √ | √ | √ | √ | √ |
Salinized steel + Salinized steel | 0.4-1.0 | √ | √ | √ | √ | √ | √ |
Stainless steel +Stainless steel | 0.5-2.0 | √ | √ | √ | √ | √ | √ |
Aluminum steel + Aluminum steel | 0.4-2.0 | √ | √ | √ | √ | √ | √ |
Colorbond steel + Stainless steel | Customized | √ | √ | √ | √ | √ | √ |
Colorbond steel + Salinized steel | Customized | √ | √ | √ | √ | √ | √ |
Colorbond steel + Galvanized steel | Customized | √ | √ | √ | √ | √ | √ |
Colorbond steel + Aluminum steel | Customized | √ | √ | √ | √ | √ | √ |
Bare PU panel | √ | √ | √ | √ | √ | √ | |
Customized | Customized | √ | √ | √ | √ | √ | √ |

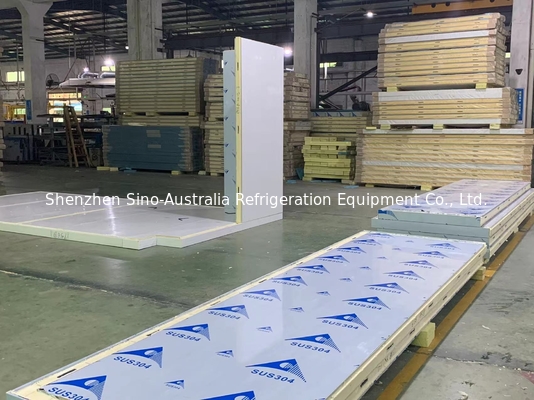

2. Structure - Combined piece by piece according to intallation drawing. Cold room panels made by high pressure foaming, standard width is 1160mm, height can be from 2000mm to 8000mm. Moreover, besides standard panel size, all panels can be customized as your specical request. High quality materials to ensure top grade and perfect appearance, to show the unique features of Coldroom, with the high density metal panel and camlock, can use under 150 kg tension.
3. Cold room panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃
Panel Thickness | MM | 50 | 75 | 100 | 125 | 150 | 200 |
Heat Conductivity | W(M.K) | 0.27 | 0.24 | 0.18 | 0.17 | 0.16 | 0.14 |
Working Temperature | ℃ | ≥5℃ | ≥-5℃ | ≥-25℃ | ≥-30℃ | ≥-35℃ | ≥-45℃ |
Limiting Temperature | ℃ | ≥-5℃ | ≥-10℃ | ≥-30℃ | ≥-35℃ | ≥-40℃ | ≥-50℃ |
4. Corner type - Of course, right angle corner is common that we can supply . If needed, we have curved corner design. This type is environmental protection, beautiful and easy to clean.
5. Floor type - Walk in type floor is installed on the ground directly. The recessed type, generally the floor panel will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare panels, to enhance the hardness of the floor and allow forklift drive inside.
6. Door type - Gennerally, we will offer swing (hinged) or sliding door for coldrrom as your request. If you have special request, we can customize accordingly.
7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.

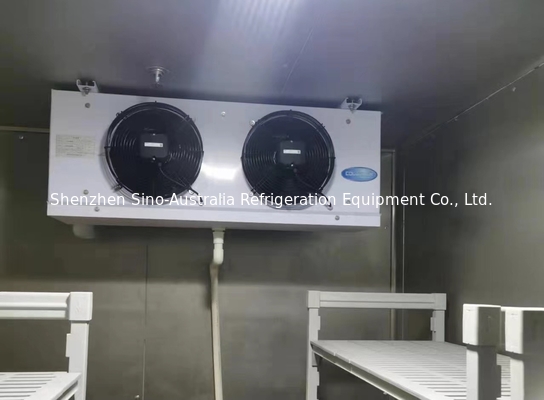

8. Refrigeration system matched - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.
9. Cooperative partners -The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Certificate - Our high quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.
Our strengths:
1. Focus on refrigeration equipment more than 18 years. We make our products by heart.
2. Strong R&D department make sure reasonable design and excellent quality.
3. We have engineers and technician from Desmon, they have rich experience on the Panel
5. 24 hours online service.
6. High efficiency team work full of love & reponsibility.
All these coldroom and systems can be customized. Should you have any question, feel free to contact.You are all welcome at any time.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
