|Place of Origin:||China|
|Brand Name:||Oasis brand|
|Model Number:||High Temp/ Low Temp|
|Minimum Order Quantity:||1 set|
|Delivery Time:||5-6 weeks|
|Supply Ability:||100 set per week|
|Material:||Stainless Steel,colorbond,aluminum,checker Plate||Metal Thickness:||0.4mm,0.6mm,0.8mm,1.0mm, 1.2mm Etc|
|Panel Thickness:||75mm,100mm,150mm,200mm||Corner Type:||Right Angle Or Rounded Corner|
|Floor Type:||Walk-in Or Recessed Type||Dimension:||Customized|
|Original:||Guangdong China||Fuction:||Insulation And Refrigeration|

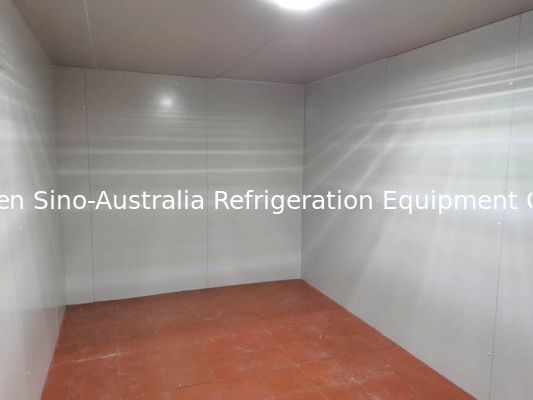

1160mm Width Fridge Freezer Cold Room,
10mm Rounded Corner Freezer Cold Room,
1160mm freezer storage room
Fridge Freezer Cold Room 304 Stainless Steel Or White Colorbond Industrial Cold Room For Seafood,Meat,Cold Kitchen
A kind od metal steel face plate with core of foaming material used for install the cold room or the place featuring temperatre-control, humidity-control, and dust-control. Many kind of products can be offered for you. However, the PU sandwich panel is highly recommended because of their specific characteristics.
1. Combined panels with camlocks and double yin-yan mounted.
2. Density reach up at 42KG.
3. We can do hidden floor and ceiling if needed
4. Cold room corners can be rounded corner radius 10mm
5. Doors fabricated heaters inside to avoid door frozen and can't open it.
6. All doors around with rubbles to ensure sealing property.
1. Materials - We have many materials of coldroom for your referance. Generally, stainless steel coldroom often used for 5 star hotel. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.
|Detail Standard Face plate||According to GB/T23932-2009 double skin metal faced insulating panels for builing|
|According to JB/T6527-2006 The sandwich panels use for prefab cold room|
|Metal steel face plate (exterior +interior)||Metal steel plate thickness||PU Thickness (mm)|
|Colorbond steel + Colorbond steel||0.4-0.8||√||√||√||√||√||√|
|Salinized steel + Salinized steel||0.4-1.0||√||√||√||√||√||√|
|Stainless steel +Stainless steel||0.5-2.0||√||√||√||√||√||√|
|Aluminum steel + Aluminum steel||0.4-2.0||√||√||√||√||√||√|
|Colorbond steel + Stainless steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Salinized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Galvanized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Aluminum steel||Customized||√||√||√||√||√||√|
|Bare PU panel||√||√||√||√||√||√|
2. Structure - Combined piece by piece according to intallation drawing. Our panel made by high pressure foaming, standard width is 1160mm, height can be from 2000mm to 8000mm, moreover, all these panels can be customized as your specical request. We use high quality, top grade and perfect appearance to show the unique features of Coldroom, with the high density metal panel and camlock, can use under 150 kg tension.
3. Cold room panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃
4. Corner type - Of course, right angle corner is common that we can supply . If needed, we have curved corner design. This type is environmental protection, beautiful and easy to clean.
5. Floor type - Walk in type floor is installed on the ground directly. The recessed type, generally the floor panel will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare panels, to enhance the hardness of the floor and allow forklift drive inside.
6. Door type - Gennerally, we will offer swing (hinged) or sliding door for coldrrom as your request. If you have special request, we can customize accordingly.
7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.
8. Refrigeration system matched - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.
9. Cooperative partners -The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Certificate - Our high quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.
All these coldroom and systems can be customized. Should you have any question, feel free to contact.You are all welcome at any time.
