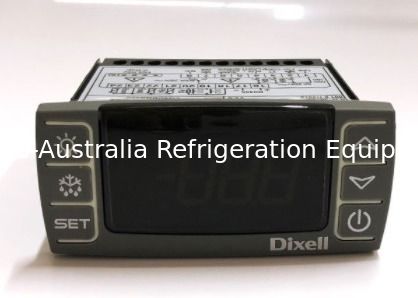

Name: 230V Dixell Digital Temperature Controller XR75CX-5N7C3 With NTC PT1000 Sensor
Brand: Dixell
SKU: XR75CX-5N7C3
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (178 reviews)

Home Products Digital Refrigeration Controller

230V Dixell Digital Temperature Controller XR75CX-5N7C3 With NTC PT1000 Sensor

Product Details:

Place of Origin:	Italy / China
Brand Name:	Dixell
Certification:	EAC
Model Number:	XR75CX-5N7C3

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	negotiate
Packaging Details:	cartons
Delivery Time:	4-6 weeks
Payment Terms:	T/T
Supply Ability:	1000pcs per weeks

Contact Now

Detailed Product Description

Function:	Temperature Display,control And Adjust	Screen Display:	Blue Or Red
Application:	Medium-Low Temperature Refrigeration	Name:	Dixell Digital Temperature Controller
Power:	230V/50Hz/60Hz	Sensor Type:	NTC PT1000
Temperature Setting Range:	150℃ To -100℃	Monitoring System Suitable:	Yes
High Light:	230V Digital Temperature Controller , NTC PT1000 Digital Temperature Controller , XR75CX-5N7C3

XR75CX-5N7C3 Dixell Digital Controller For Medium-Low Temperature Refrigeration Applications With NTC PT1000 Sensor

GENERAL DESCRIPTION -DIGITAL CONTROLLER XR02CX

Model XR75CX, format 32 x 74 mm, is microprocessor based controller, suitable for applications on medium or low temperature ventilated refrigerating units.

It has 4 relay outputs to control compressor, fan, defrost, which can be either electrical or reverse cycle (hot gas) and light (configurable).

It could be provided with a Real Time Clock which allows programming of up to 6 daily defrost cycles, divided into holidays and workdays. A “Day and Night” function with two different set points is fitted for energy saving.

It is also provided with up to four NTC or PT1000 probe inputs, the first one for temperature control, the second one, to be located onto the evaporator, to control the defrost termination temperature and to managed the fan. One of the 2 digital inputs can operate as third temperature probe. The fourth probe is used to signal the condenser temperature alarm or to display a temperature.

The RS485 serial output allows to connect the unit to a network line ModBUS-RTU compatible such

as the Dixell monitoring units of X-WEB family. The HOT key receptacle allows to program the controller by means the HOT KEY programming keyboard.

The instrument is fully configurable through special parameters that can be easily programmed

through the keyboard.

SPECIFICATIONS / MODELS

	XR10CX	XR20CX	XR30CX	XR40CX	XR50CX	XR60CX	XR70CX
Dimension
327460mm	√	√	√	√	√	√	√
Power supply
12,24V ac/dc (± 10%)	√	√	√	√	√	√
115,230V ac/dc (± 10%)	√	√	√	√	√	√	√
Display
3 digital tubes, minus sign,Decimal point,Output status minus sign	√	√	√	√	√	√	√
Temperature sensor
Coldroom Temp Probe NTC / PTC	√	√	√	√	√	√	√
Evaporator Probe NTC / PTC	√	√	√	√	√	√	√
second Evaporator Probe NTC / PTC				√	√	√	√
Condenser Probe NTC / PTC	√	√	√	√	√	√	√
Digital input/display probe
Alarm,Trigger Defrost,Auxiliary probe, door switch,Pressure switch	Settable	Settable	Settable	Settable	Settable	Settable	Settable
Relay Outout
compressor	20A / 8A	20A / 8A	20A / 8A	20A / 8A	20A / 8A	20A / 8A/16A	20A / 8A/16A
Defrost				8A	8A	8A	8A/16A
Evaporator Fan						5A/8A	5A/16A
Light / Alarm output			8A		5A/8A		8A/16A
Others
Hot Key Programming key	√	√	√	√	√	√	√
Serial Interface MODBUS	√	√	√	√	√	√	√
