Product Details:
Payment & Shipping Terms:
|
Type: | Hitachi Inverter Refrigeration Compressor | Application: | Refrigeration And Air Conditioning |
---|---|---|---|
Condition: | New | Power: | 380-415V 3~50Hz/440V 3~60Hz |
Refrigeration: | R22,R410 | Packing: | Pallet |
Connection: | Welding | Name: | Panasonic Compressor |
High Light: | R410 Refrigerant Hermetic Compressor,380V 50HZ Refrigerant Hermetic Compressor,R410 refrigeration compressor unit |

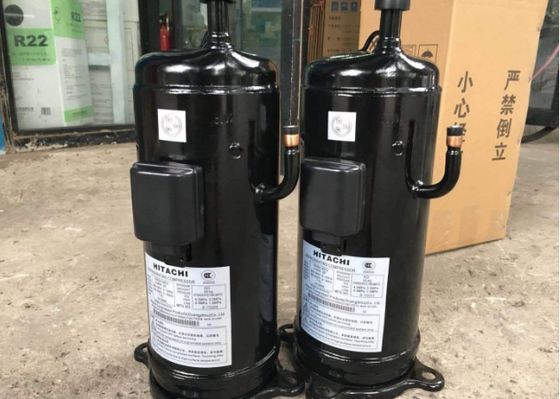

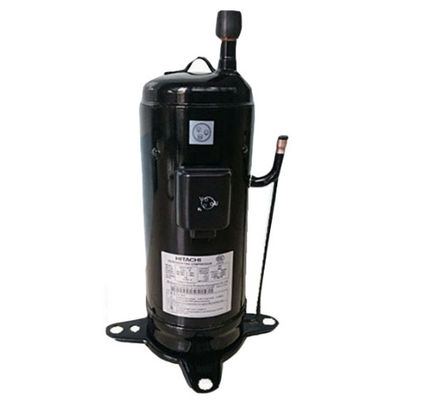

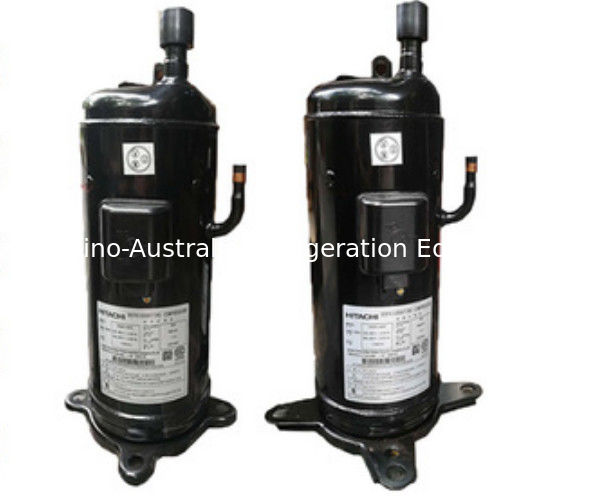

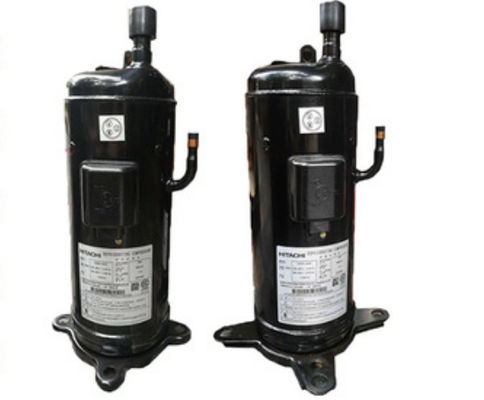

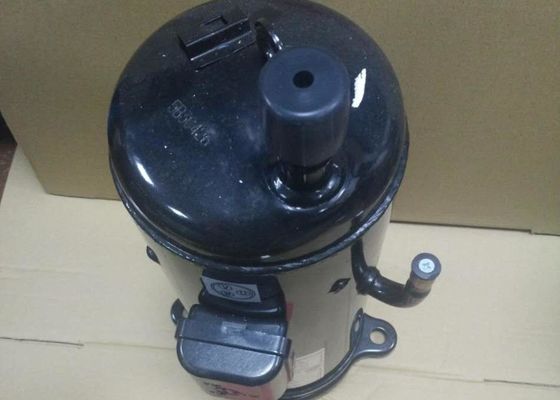

Highly / Hitachi Inverter Refrigeration Compressor Of Refrigeration And Air Conditioning For Chiller And Freezer
1. The series Hitachi compressor can run smoothly and reliably with refrigerant R22 or new chlorine-free refrigerants R134a, R404a, R507A and R407C.
2. Hitachi series compressors are equipped with safety relief valve between high and low pressure chambers and PTC temperature sensor inserted directly into the exhaust chamber of Cylinder Block.
3. Hitachi compressor Motor Protection selected Germany Kriwan company PTC motor protector, and with a delay loop, it control compressor shutdown after 5 minutes to start, can effectively protect the compressor.
4. Hitachi compressor can be installed with energy regulating device, which achieves energy efficiency ratio under partial load and full load.
5. Hitachi compressor has stable performance and long service life.
6. Hitachi compressor can be widely used in air conditioning, heat pump, industrial, agricultural and commercial refrigeration systems.
Specifications
Brand | HP | Model | Power | Refrigerant |
Hitachi | 4 | 401DHV-64D2Y | 380-415V 3~50Hz/440V 3~60Hz | R22 |
Hitachi | 4 | 401DHV-64D2Y | 380-415V 3~50Hz/440V 3~61Hz | R22 |
Hitachi | 4 | 401DHVM-64D1 | 380-415V 3~50Hz/440V 3~62Hz | R22 |
Hitachi | 6 | 600DHM-80D1 | 380-415V 3~50Hz/440V 3~60Hz | R22 |
Hitachi | 5 | 503DH-80C2 | 380V 3~50Hz/380-440V 3~60Hz | R22 |
Hitachi | 5 | 503DH-83C2 | 380V 3~50Hz/380-440V 3~60Hz | R22 |
Hitachi | 5 | 503DH-83C2Y | 380V 3~50Hz/380-440V 3~60Hz | R22 |
Hitachi | 6 | 603DH-90C2 | 380V 3~50Hz/380-440V 3~60Hz | R22 |
Hitachi | 6 | 603DH-95C2 | 380V 3~50Hz/380-440V 3~60Hz | R22 |
Hitachi | 6 | 603DH-95C2Y | 380V 3~50Hz/380-440V 3~60Hz | R22 |
Hitachi | 4 | E405DHD-36D2YG | 380-415V 3~50Hz/440V 3~60Hz | R410 |
Hitachi | 4 | E405DHD-38D2YG | 380-415V 3~50Hz/440V 3~60Hz | R410 |
Hitachi | 5 | E505DH-49D2YG | 380-415V 3~50Hz/440V 3~60Hz | R410 |
Hitachi | 6 | E605DH-59D2YG | 380-415V 3~50Hz/440V 3~60Hz | R410 |
Hitachi | 7 | E655DH-65D2YG | 380-415V 3~50Hz/440V 3~60Hz | R410 |
Hitachi | 7 | E655DHD-65D2YG | 380-415V 3~50Hz/440V 3~60Hz | R410 |
