Product Details:
Payment & Shipping Terms:
|
| Packing: | Individual Box | Material: | Copper |
|---|---|---|---|
| Condition: | Brand New | Application: | Coldroom Evaporators |
| Name: | Expansion Valves | Refrigerant: | R404a,R134a,R407,R22 |
| High Light: | TH THW Thermal Expansion Valves,R407 Thermal Expansion Valves,R22 ac thermal expansion valve |
||

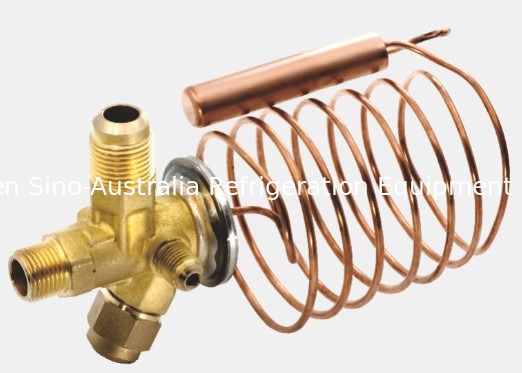

TH THW Thermal Expansion Valves For Refrigeration / Air Conditioning System, Evaporator,Condensing Unit Used
Description:
1. T-type expansion value is a novel thermostatic expansion value with replaceable valve element
2. T-type expansion value is used for adjusting the supply quantity of liquid refrigerant in evaporator
3. T-type expansion value is particularly suitable for supplying liquid refrigerant in dry-type evaporator
4. T-type expansion value has autocontrol through regulating the-superheating degree of refrigerant.
Specifications:
| Valve element No. | Nominal refrigerating capacity(TR) | Nominal refrigerating capacity(KW) | ||||
| R22 | R134a | R404A | R22 | R134a | R404A | |
| No.1 | 0.7 | 0.5 | 0.45 | 2.5 | 1.8 | 1.6 |
| No.2 | 1.0 | 0.8 | 0.6 | 3.5 | 2.6 | 2.1 |
| No.3 | 1.5 | 1.3 | 1.2 | 5.2 | 4.6 | 4.2 |
| No.4 | 2.3 | 1.9 | 1.7 | 8.0 | 6.7 | 6.0 |
| No.5 | 3.0 | 2.5 | 2.2 | 10.5 | 8.6 | 7.7 |
| No.6 | 4.5 | 3.0 | 2.6 | 15.5 | 10.5 | 9.1 |
· The valve element can be exchanged with the valve element of Danfoss in corresponding number and can’t exchange with other valve elements of other plants.
Model of main value body:
| Refrigerant | Model | Pressure Balance | Thread | Nominal Refrigerating Capacity | |||
| Intet | Outlet | Outside Balance End | TR | KW | |||
| R22 | TH22 | Internal balance | 3/8 SAE | 1/2 SAE |
|
0.7~4.5 | 2.5~15.5 |
| TH22W | External balance | 1/4 SAE | |||||
| R134a | TH134 | Internal balance |
|
0.5~3.0 | 1.8~10.5 | ||
| TH134W | External balance | 1/4 SAE | |||||
| R404A | TH404 | Internal balance |
|
0.45~2.6 | 1.6~9.1 | ||
| TH404W | External balance | 1/4 SAE | |||||
·The working condition of nominal refrigerating capacity is; evaporating temperature 5℃; condensing temperature 35℃; superheating degree 3.5℃; superheating degree 4℃
·other refrigerants can be customized based on client’s requirements
Technical Parameters:
| Applicable Refrigerants: | R22,R134a,R404A |
| Applicable Medium | R22: -40℃~+10℃; R134a:-30℃~+10℃;R404A:-40℃~+10℃ |
| Norminal Capacity: | 2.5KW~15.5KW,1.8KW~10.5KW,1.6KW~9.1KW |
| Adjustable Range of Superheat: | 2℃~8℃ |
| Ex-Works Static Heat Adjustment: | 3.5℃ |
| Maximum Working Pressure: | 2.0MPa |
| Maximum Testing Pressure: | 3.0MPa |
· Capillary length of T-type thermostatic expansion valve:1.5m in atandard; under special situation,it can be customized based on clients' requirements.
