| Place of Origin: | China |
| Brand Name: | Coldmatch |
| Certification: | CE / UL |
| Model Number: | CM-DAM020QYT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Packaging Details: | Cartons or Pallet |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per weeks |
| Type: | With Painted Cover | Temp Range: | Medium-High And Low Temp |
|---|---|---|---|
| Cooling: | Air-Cooled And Water-Cooled | Application: | Chiller,Freezer And Other Cooling Equipment |
| Power: | 220V/50Hz,380V/50Hz/60Hz | Condition: | Brand New |
| Function: | Refrigeration | Name: | Cold Rooom Condensing Unit |
| High Light: | 380V 50Hz 2HP Coldroom Condensing Unit,2HP Box Coldroom Condensing Unit,2HP Cold Storage Refrigeration Units |
||

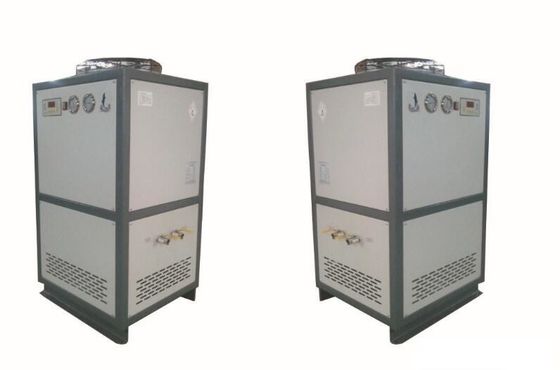

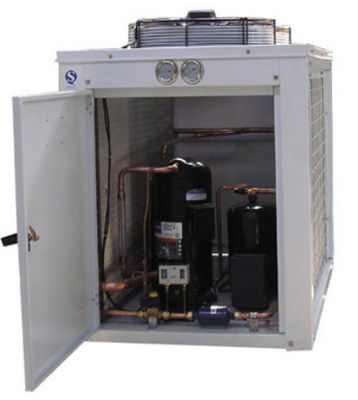

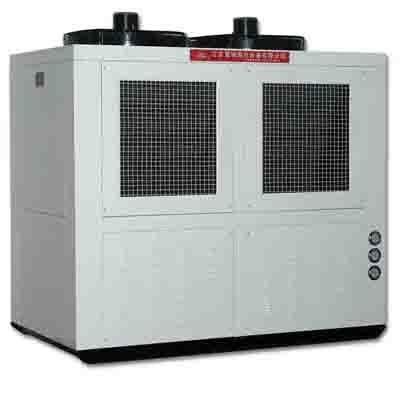

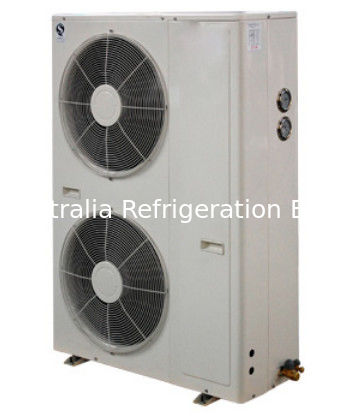

Air-Cooled Cold Room Condensing Unit,Water-Cooled Refrigeration Unit Used For Freezer And Cold Room
General Information
There will be complex refrigeration control system in the condensing units, which integrates powerful functions such as module combination or centralized control, room temperature control, intelligent defrosting control, elcetronic throttle fuzzy control, intelligent debugging, fault self-diagnosis and smart operation management diplaying.
Main parts and materials are used the international famous brand products, the whole manufacturer process are assembly line work, strict quality control process, won't pass any quality defects, create excellent quality of each products.
Specifications - Mid-High Temperature Series Technical Data
| MODEL | CM-DAM010QYT | CM-DAM20QYT | CM-DAM030QYT | CM-DAM050QYT | CM-DAM060QYT | |||
| Cooling Capacity | Room Temp (℃) | 13 | W | 2700 | _ | _ | _ | _ |
| 8 | W | 4890 | 4890 | 7077 | 12680 | 15356 | ||
| 0 | W | 3826 | 3826 | 5537 | 9920 | 12598 | ||
| -10 | W | 2597 | 3757 | 6731 | 7709 | |||
| -18 | W | 2105 | 2630 | 5457 | 6230 | |||
| -20 | W | 1817 | 2352 | 4215 | 4751 | |||
| Norminal Power | W | 750 | 1784 | 2490 | 4266 | 4462 | ||
| Room Temp. Range | ℃ | 0℃ to 20℃ | -20℃ to 10℃ | |||||
| Power Supply | 220V~/50Hz | 380V/3N ~50Hz 220V~/50Hz (optional) | 380V/3N ~50Hz (optional) | |||||
| Refrigerant | R404a | |||||||
| Compressor | Type | Rotary Compressor | Hermetic Scroll | |||||
| HP | 1 | 2 | 3 | 5 | 6 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | ||||||
| Oty | PCS | 1 | 1 | 1 | 2 | 2 | ||
| Power | W | 30 | 60 | 60 | 60x2 | 60x2 | ||
| Pipe Connection | Liquid Line | mm | 9.52 | 9.52 | 12.7 | 12.7 | 12.7 | |
| Gas Line | mm | 12.7 | 12.7 | 15.88 | 19.05 | 19.05 | ||
| Dimensions (LXDXH) | mm | 819x350x575 | 952x438x823 | 966x438x1237 | ||||
| Net Weight | kg | 46 | 80 | 87 | 122 | 122 | ||
| Evaporator Matching | DAE065R42 | DAE090R42 | DAE120R42 | DAE220R420 | DAE255R570 | |||
| MODEL | CM-DAM080QYT | CM-DAM100QYT | CM-DAM0120QYT | CM-DAM150QYT | |||
| Cooling Capacity | Room Temp (℃) | 8 | W | 19463 | 25448 | 29494 | 33421 |
| 0 | W | 15228 | 19909 | 23075 | 27676 | ||
| -10 | W | 10333 | 13510 | 15657 | 19905 | ||
| -18 | W | 7996 | 10454 | 12116 | 15162 | ||
| -20 | W | 7233 | 9457 | 10960 | 12498 | ||
| Norminal Power | W | 7180 | 9541 | 10610 | 12314 | ||
| Room Temp. Range | ℃ | -20℃ to 10℃ | |||||
| Power Supply | 380V/3N ~50Hz (optional) | ||||||
| Refrigerant | R404a | ||||||
| Compressor | Type | Hermetic Scroll | |||||
| HP | 8 | 10 | 12 | 15 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | |||||
| Oty | PCS | 1 | 1 | 1 | 2 | ||
| Power | W | 850 | 850 | 1100 | 1250 | ||
| Pipe Connection | Liquid Line | mm | 15.88 | 22.23 | 22.23 | 22.23 | |
| Gas Line | mm | 70 | 71 | 71 | 72 | ||
| Dimensions (LXDXH) | mm | 805x805x1420 | 805x805x1420 | 970x970x1720 | 970x970x1720 | ||
| Net Weight | kg | 210 | 230 | 250 | 260 | ||
| Evaporator Matching | DAE380R70 | DAE600R70 | DAE650R70 | DAE650R70 | |||
Specifications - Low Temperature Series Technical Data
| MODEL | CM-DAL015QYT | CM-DAL20QYT | CM-DAL030QYT | CM-DAL050QYT | CM-DAL060QYT | |||
| Cooling Capacity | Room Temp (℃) | 0 | W | 2740 | 5431 | 7135 | 12974 | 13450 |
| -10 | W | 1783 | 3949 | 5189 | 9434 | 10375 | ||
| -18 | W | 1489 | 3329 | 4227 | 7953 | 8500 | ||
| -25 | W | 786 | 2520 | 3311 | 6020 | 6595 | ||
| -35 | W | 300 | 1707 | 2243 | 4078 | 4585 | ||
| Norminal Power | W | 1480 | 2019 | 2637 | 4483 | 5075 | ||
| Room Temp. Range | ℃ | 0℃ to 20℃ | -35℃ to 10℃ | |||||
| Power Supply | 220V~/50Hz | 380V/3N ~50Hz (optional) | ||||||
| Refrigerant | R404a | |||||||
| Compressor | Type | Rotary Compressor | Hermetic Scroll (with EVI) | |||||
| HP | 1 | 2 | 3 | 5 | 6 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | ||||||
| Oty | PCS | 1 | 1 | 1 | 2 | 2 | ||
| Power | W | 30 | 60 | 60 | 60x2 | 60x2 | ||
| Pipe Connection | Liquid Line | mm | 9.52 | 9.52 | 12.7 | 12.7 | 12.7 | |
| Gas Line | mm | 12.7 | 12.7 | 15.88 | 19.05 | 19.05 | ||
| Dimensions (LXDXH) | mm | 819x350x575 | 952x438x823 | 966x438x1237 | ||||
| Net Weight | kg | 46 | 80 | 87 | 122 | 122 | ||
| Evaporator Matching | DAE065R42 | DAE090R42 | DAE120R42 | DAE220R420 | DAE255R570 | |||
| MODEL | CM-DAL080QYT | CM-DAL100QYT | CM-DAL0120QYT | CM-DAL150QYT | |||
| Cooling Capacity | Room Temp (℃) | 0 | W | 15773 | 21448 | 24249 | 31827 |
| -10 | W | 11539 | 15691 | 17740 | 22890 | ||
| -18 | W | 8790 | 11953 | 13514 | 17436 | ||
| -25 | W | 6780 | 9220 | 10424 | 13981 | ||
| -35 | W | 4736 | 6440 | 7281 | 9394 | ||
| Norminal Power | W | 6350 | 8500 | 9500 | 11574 | ||
| Room Temp. Range | ℃ | -35℃ to 10℃ | |||||
| Power Supply | 380V/3N ~50Hz (optional) | ||||||
| Refrigerant | R404a | ||||||
| Compressor | Type | Hermetic Scroll (with EVI) | |||||
| HP | 8 | 10 | 12 | 15 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | |||||
| Oty | PCS | 1 | 1 | 1 | 2 | ||
| Power | W | 850 | 850 | 1100 | 1250 | ||
| Pipe Connection | Liquid Line | mm | 15.88 | 22.23 | 22.23 | 22.23 | |
| Gas Line | mm | 70 | 71 | 71 | 72 | ||
| Dimensions (LXDXH) | mm | 805x805x1420 | 805x805x1420 | 970x970x1720 | 970x970x1720 | ||
| Net Weight | kg | 210 | 230 | 250 | 260 | ||
| Evaporator Matching | DAE380R70 | DAE600R70 | DAE650R70 | DAE650R70 | |||
Should you have any question, feel free to contact.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
