| Place of Origin: | China |
| Brand Name: | Coldmatch |
| Certification: | CE / UL |
| Model Number: | CM-DAL080QYT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Packaging Details: | Cartons or Pallet |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per weeks |
| Type: | With Painted Cover | Temp Range: | Medium-High And Low Temp |
|---|---|---|---|
| Cooling: | Air-Cooled And Water-Cooled | Application: | Chiller,Freezer And Other Cooling Equipment |
| Power: | 220V/50Hz,380V/50Hz/60Hz | Condition: | Brand New |
| Function: | Refrigeration | Name: | Cold Rooom Condensing Unit |
| High Light: | 5HP 50Hz Coldroom Condensing Unit,Hermetic Scroll 5HP Condensing Unit,220V 50Hz 5HP Condensing Unit |
||

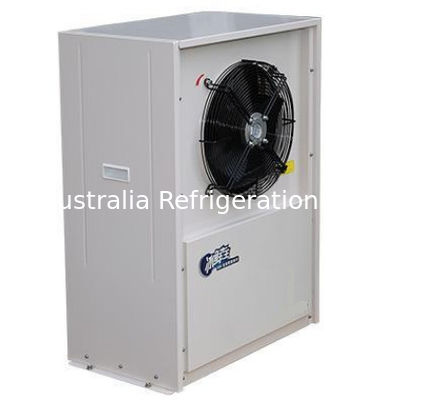

Pilot Series Unit-Low Temp. Cold Room Condensing Unit,Air-Cooled Refrigeration Unit,Coldmach Intelligent Condensing Unit
Feature
1. Suitable temperature range: -35℃～+10℃；
2. Advanced (EVI) Enhanced Vapor Injection technology can greatly improve the cold quantity, improve efficiency, and to ensure that the wider operating range;
3. Electronic expansion valve with fuzzy control : Refrigeration efficiency is high, the cooling speed is fast;
4. Hot gas defrosting on demand: High efficiency and energy saving, 3 to 5 minutes to complete the defrosting, compare with electrical heating, energy saving more than 80%;
5. Condensate fan stepless speed regulation: Any climate throughout the year can be running normally, suitable ambient temperature: -15℃～+48℃；
6. Home air conditioner installation; centralized control, modular control and remote control management can be realized;
7. Air cooler fin spacing is 4.2mm, sufficient cooling capacity and plenty of heat exchange area;
8. Equipped with hot gas defrosting design, separating evenly, without electric heat pipe, no hidden danger.
Specifications - Mid-High Temperature Series Technical Data
| MODEL | CM-DAM010QYT | CM-DAM20QYT | CM-DAM030QYT | CM-DAM050QYT | CM-DAM060QYT | |||
| Cooling Capacity | Room Temp (℃) | 13 | W | 2700 | _ | _ | _ | _ |
| 8 | W | 4890 | 4890 | 7077 | 12680 | 15356 | ||
| 0 | W | 3826 | 3826 | 5537 | 9920 | 12598 | ||
| -10 | W | 2597 | 3757 | 6731 | 7709 | |||
| -18 | W | 2105 | 2630 | 5457 | 6230 | |||
| -20 | W | 1817 | 2352 | 4215 | 4751 | |||
| Norminal Power | W | 750 | 1784 | 2490 | 4266 | 4462 | ||
| Room Temp. Range | ℃ | 0℃ to 20℃ | -20℃ to 10℃ | |||||
| Power Supply | 220V~/50Hz | 380V/3N ~50Hz 220V~/50Hz (optional) | 380V/3N ~50Hz (optional) | |||||
| Refrigerant | R404a | |||||||
| Compressor | Type | Rotary Compressor | Hermetic Scroll | |||||
| HP | 1 | 2 | 3 | 5 | 6 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | ||||||
| Oty | PCS | 1 | 1 | 1 | 2 | 2 | ||
| Power | W | 30 | 60 | 60 | 60x2 | 60x2 | ||
| Pipe Connection | Liquid Line | mm | 9.52 | 9.52 | 12.7 | 12.7 | 12.7 | |
| Gas Line | mm | 12.7 | 12.7 | 15.88 | 19.05 | 19.05 | ||
| Dimensions (LXDXH) | mm | 819x350x575 | 952x438x823 | 966x438x1237 | ||||
| Net Weight | kg | 46 | 80 | 87 | 122 | 122 | ||
| Evaporator Matching | DAE065R42 | DAE090R42 | DAE120R42 | DAE220R420 | DAE255R570 | |||
| MODEL | CM-DAM080QYT | CM-DAM100QYT | CM-DAM0120QYT | CM-DAM150QYT | |||
| Cooling Capacity | Room Temp (℃) | 8 | W | 19463 | 25448 | 29494 | 33421 |
| 0 | W | 15228 | 19909 | 23075 | 27676 | ||
| -10 | W | 10333 | 13510 | 15657 | 19905 | ||
| -18 | W | 7996 | 10454 | 12116 | 15162 | ||
| -20 | W | 7233 | 9457 | 10960 | 12498 | ||
| Norminal Power | W | 7180 | 9541 | 10610 | 12314 | ||
| Room Temp. Range | ℃ | -20℃ to 10℃ | |||||
| Power Supply | 380V/3N ~50Hz (optional) | ||||||
| Refrigerant | R404a | ||||||
| Compressor | Type | Hermetic Scroll | |||||
| HP | 8 | 10 | 12 | 15 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | |||||
| Oty | PCS | 1 | 1 | 1 | 2 | ||
| Power | W | 850 | 850 | 1100 | 1250 | ||
| Pipe Connection | Liquid Line | mm | 15.88 | 22.23 | 22.23 | 22.23 | |
| Gas Line | mm | 70 | 71 | 71 | 72 | ||
| Dimensions (LXDXH) | mm | 805x805x1420 | 805x805x1420 | 970x970x1720 | 970x970x1720 | ||
| Net Weight | kg | 210 | 230 | 250 | 260 | ||
| Evaporator Matching | DAE380R70 | DAE600R70 | DAE650R70 | DAE650R70 | |||
Specifications - Low Temperature Series Technical Data
| MODEL | CM-DAL015QYT | CM-DAL20QYT | CM-DAL030QYT | CM-DAL050QYT | CM-DAL060QYT | |||
| Cooling Capacity | Room Temp (℃) | 0 | W | 2740 | 5431 | 7135 | 12974 | 13450 |
| -10 | W | 1783 | 3949 | 5189 | 9434 | 10375 | ||
| -18 | W | 1489 | 3329 | 4227 | 7953 | 8500 | ||
| -25 | W | 786 | 2520 | 3311 | 6020 | 6595 | ||
| -35 | W | 300 | 1707 | 2243 | 4078 | 4585 | ||
| Norminal Power | W | 1480 | 2019 | 2637 | 4483 | 5075 | ||
| Room Temp. Range | ℃ | 0℃ to 20℃ | -35℃ to 10℃ | |||||
| Power Supply | 220V~/50Hz | 380V/3N ~50Hz (optional) | ||||||
| Refrigerant | R404a | |||||||
| Compressor | Type | Rotary Compressor | Hermetic Scroll (with EVI) | |||||
| HP | 1 | 2 | 3 | 5 | 6 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | ||||||
| Oty | PCS | 1 | 1 | 1 | 2 | 2 | ||
| Power | W | 30 | 60 | 60 | 60x2 | 60x2 | ||
| Pipe Connection | Liquid Line | mm | 9.52 | 9.52 | 12.7 | 12.7 | 12.7 | |
| Gas Line | mm | 12.7 | 12.7 | 15.88 | 19.05 | 19.05 | ||
| Dimensions (LXDXH) | mm | 819x350x575 | 952x438x823 | 966x438x1237 | ||||
| Net Weight | kg | 46 | 80 | 87 | 122 | 122 | ||
| Evaporator Matching | DAE065R42 | DAE090R42 | DAE120R42 | DAE220R420 | DAE255R570 | |||
| MODEL | CM-DAL080QYT | CM-DAL100QYT | CM-DAL0120QYT | CM-DAL150QYT | |||
| Cooling Capacity | Room Temp (℃) | 0 | W | 15773 | 21448 | 24249 | 31827 |
| -10 | W | 11539 | 15691 | 17740 | 22890 | ||
| -18 | W | 8790 | 11953 | 13514 | 17436 | ||
| -25 | W | 6780 | 9220 | 10424 | 13981 | ||
| -35 | W | 4736 | 6440 | 7281 | 9394 | ||
| Norminal Power | W | 6350 | 8500 | 9500 | 11574 | ||
| Room Temp. Range | ℃ | -35℃ to 10℃ | |||||
| Power Supply | 380V/3N ~50Hz (optional) | ||||||
| Refrigerant | R404a | ||||||
| Compressor | Type | Hermetic Scroll (with EVI) | |||||
| HP | 8 | 10 | 12 | 15 | |||
| Condenser | Type | High Efficiency Low Noise Axial Fan | |||||
| Oty | PCS | 1 | 1 | 1 | 2 | ||
| Power | W | 850 | 850 | 1100 | 1250 | ||
| Pipe Connection | Liquid Line | mm | 15.88 | 22.23 | 22.23 | 22.23 | |
| Gas Line | mm | 70 | 71 | 71 | 72 | ||
| Dimensions (LXDXH) | mm | 805x805x1420 | 805x805x1420 | 970x970x1720 | 970x970x1720 | ||
| Net Weight | kg | 210 | 230 | 250 | 260 | ||
| Evaporator Matching | DAE380R70 | DAE600R70 | DAE650R70 | DAE650R70 | |||
