304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized

304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized

  • 304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized
  • 304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized
  • 304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized
  • 304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized
  • 304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized
304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized
Product Details:
Place of Origin: China
Brand Name: Oasis brand
Certification: GB/T 19001-2006/ISO9001:2015
Model Number: Low Temp
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: carton
Delivery Time: 5-6 weeks
Payment Terms: T/T
Supply Ability: 100 set per week
Contact Now
Detailed Product Description
Material: Stainless Steel,colorbond,checker Aluminum,checker Plate Steel Thickness: 0.6mm,0.8mm,1.0mm, 1.2mm,1.5mm Etc
Panel Thickness: 75mm,100mm,150mm,200mm Coner Type: Right Angle Or Rounded Corner
Floor Type: Walk-in Or Recessed Function: Insulation And Refrigeration
Door Type: Sliding And Hinged Door Application: Insulation
Density: 42KG/M3 Dimension: Customized
Condition: Brand New Power: 110/220/380V
High Light:

304 Stainless Steel Fish Deep Freezer Room

,

20KW Deep Freezer Room

,

20KW Cold Room Food Storage

Cold And Freezer Rooms, 304 Stainless Steel / Colorbond Customized Deep Freezer Cold Room



Features:



1. Panel density is 42KG.With tongue-and-groove,very easy to intall according to installtion drawing.

2. The cold rooms suitable for for temperature -45℃ to over 5 ℃.

3. Cold room panels fabricated camlocks

4. We can design rounded corner inside cold room if needed.

5. Can design cold room to hide floor and ceiling

6. To avoid door frozen when working, all doors have fabricated heaters inside.

7. Doors fabricated rubbles all around to ensure sealing property.

8  Door option fittings: view window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc.



Blast Freezer Specifications (Moreover,we can customize)



Model OMBC1201-W OMBC1201-I OMBC2402-W OMBC2402-I OMBC3602-W OMBC3602-I
Dimensions (W*D*H) 1480*1400*2300 1480*1400*2300 1480*2581*2300 1480*2581*2300 1480*3762*2300 1480*3762*2300
Chiling Cycle +90/+3℃ +90/+3℃ +90/+3℃ +90/+3℃ +90/+3℃ +90/+3℃
Freezing Cycle +90/-18℃ +90/-18℃ +90/-18℃ +90/-18℃ +90/-18℃ +90/-18℃
Chiling Capacity 90min 120kg 120kg 240kg 240kg 360kg 360kg
Chiling Capacity 240min 90kg 90kg 160kg 160kg 210kg 210kg
Refrigeration Capacity 9650W 9650W 16300W 16300W 24600W 24600W
Power Supply 400/3/50Hz 400/3/50Hz 400/3/50Hz 400/3/50Hz 400/3/50Hz 400/3/50Hz
Power 7.5KW 7.5KW 15KW 15KW 20KW 20KW
Absorbed Current 15.8A 15.8A 31.6A 31.6A 42A 42A
Trays/ intestep(mm) 1 Trolley GN 2/1 2 Trolley GN 2/1 3 Trolley GN 2/1





Description



1.Materials - We have many materials of coldroom for your referance. Generally, stainless steel coldroom often used for 5 star hotel. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.



Detail Standard Face plate According to GB/T23932-2009 double skin metal faced insulating panels for builing
According to JB/T6527-2006 The sandwich panels use for prefab cold room
Metal steel face plate (exterior +interior) Metal steel plate thickness PU Thickness (mm)
50 75 100 120 150 200
Colorbond steel + Colorbond steel 0.4-0.8
Salinized steel + Salinized steel 0.4-1.0
Stainless steel +Stainless steel 0.5-2.0
Aluminum steel + Aluminum steel 0.4-2.0
Colorbond steel + Stainless steel Customized
Colorbond steel + Salinized steel Customized
Colorbond steel + Galvanized steel Customized
Colorbond steel + Aluminum steel Customized
Bare PU panel
Customized Customized





2. Coldroom structure:   the cold room combined piece by piece according to drawing.  It can be customized as your specical request.  Each panel fabricated with camlock, with tongue-and - groove joint, very easy to assemble.





304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized 0



3. Panel Thickness :



Panel thickness and working temperature based on ambient temperature 35℃

You you choose thickness according to temp required.



Panel Thickness MM 50 75 100 125 150 200
Heat Conductivity W(M.K) 0.27 0.24 0.18 0.17 0.16 0.14
Working Temperature ≥5℃ ≥-5℃ ≥-25℃ ≥-30℃ ≥-35℃ ≥-45℃
Limiting Temperature ≥-5℃ ≥-10℃ ≥-30℃ ≥-35℃ ≥-40℃ ≥-50℃





4. Corner type:  Generally, square Corner inside is common used for coldroom panels. But  we can also design curved corner if needed.It is environmental protection, beautiful and easy to clean.



5. Floor type,  This deep freezer cold room is walk in type floor. Moreover, we have recessed type for your choice. Recessed type can backfill concrete on floor panel, to enhance hardness to allow forklift drive inside.

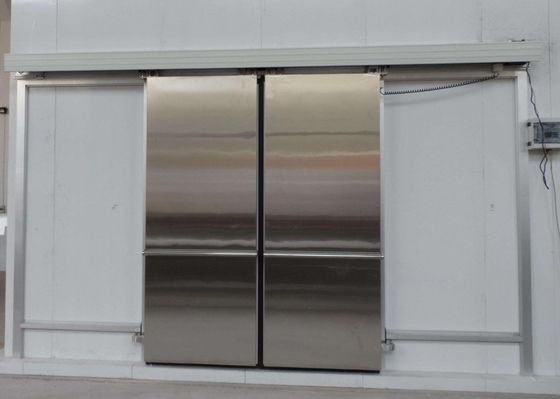

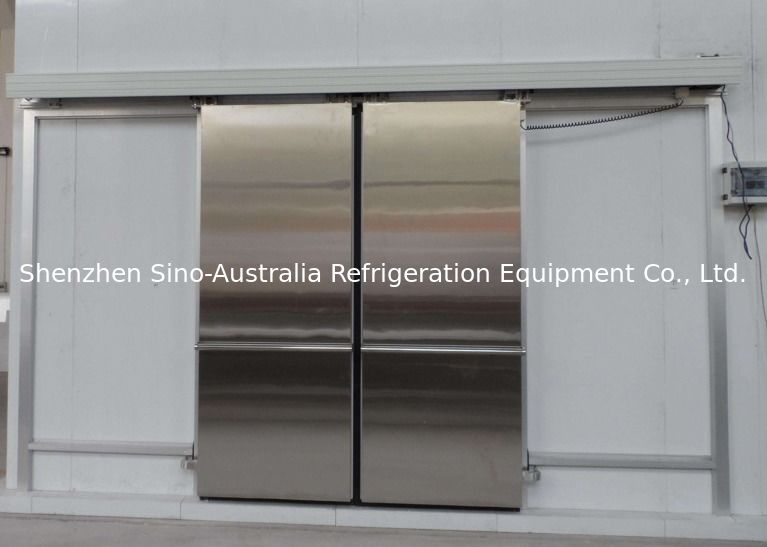

6.  Door type:  This deep freezer cold room showed above have sliding door and hinged door for your referance. One door for one room or two doors as your choice.



7.  Application:  We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request.



Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer. You can take below as referance.



Storage products Storage temperature approach
Vegetables, Fruit storage, Dry food -5~5degree centigrade
Drink, Beer storage, Beverage 2~8 degree centigrade
Meat, Fish, Seafood freeze storage -18~--25 degree centigrade
Medicine storage 2~8 degree centigrade
Medicine freeze storage -25 degree centigrade
Meat, Fish blast freezer -35~-40 degree centigrade





8. Refrigeration system :  We supply refrigeration system to match different temperature coldroom.



Have brand air-cooled / water-cooled system, Emerson Copeland air-cooled / water-cooled system, Tecumseh air-cooled / water-cooled system. Also have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc

  304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized 1



9. Cooperative partner: The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.

304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized 2







10. Oasis certificate:



- QS Industrial production license

- CE Certificate (Coldroom panel & door)

- B1 (GB/T 8624) Fire inspection report

- B2 (GB/T 8624) Fire inspection report

- SGS test report (single material)

- SGS test report (composite material)



11. Coldroom inquiry:



Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.



Cold room size (L x W x H) Food &Temperature Door type Cold room material Refrigeration system type
2x2x2.6m Fruit, +2C degree Hinged door 0.6mm stainless steel Air-cooled
4x3x2.7m Frozen meat, -24C degree Sliding door 0.6mm colorbond Air-cooled
5x3x2.7m Seafood, -24C degree Sliding door 0.8mm aluminum Water-cooled
5x6x2.8m beverage, +2C degree Hinged door 0.7mm galvanized sheet Air-cooled





304 Stainless Steel Fish Deep Freezer Room 20KW Cold Room Food Storage Customized 3



Our strengths:



1. Focus on refrigeration equipment more than 18 years. We make our products by heart.

2. Strong R&D department make sure reasonable design and excellent quality.

3. We have engineers and technician from Desmon, they have rich experience on the Panel

5. 24 hours online service.

6. High efficiency team work full of love & reponsibility.



Should you have any question, feel free to contact.You are all welcome at any time.
