Place of Origin: | China |
Brand Name: | Oasis brand |
Certification: | GB/T 19001-2006/ISO9001:2015 |
Model Number: | Low Temp |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiate |
Packaging Details: | carton |
Delivery Time: | 5-6 weeks |
Payment Terms: | T/T |
Supply Ability: | 100 set per week |
Material: | 304 Stainless Steel | Steel Thickness: | 0.8mm,1.0mm, 1.2mm,1.5mm Etc |
---|---|---|---|
Panel Thickness: | 100mm,150mm,200mm | Coner Type: | Rounded Corner |
Floor Type: | Walk-in | Function: | Insulation And Refrigeration |
Door Type: | Sliding And Hinged Door | Density: | 42KG/M3 |
Dimension: | Customized | Power: | 110/220/380V |
High Light: | 42KG/M3 blast freezer room,1.0mm Steel Walk In Cold Rooms,0.8mm Steel Walk In Cold Rooms |
Walk In Cold Rooms,304 Stainless Steel / Colorbond Customized Deep Freezer Cold Room,Cold Kitchen Freezer,Cold Storage
OASIS cold rooms and brands refrigeration system are widely used for many kinds of industries, we can design and customize as your requirement.
Features:
1. High level of fire protection.
2. Panel density is 42KG
3. Cold room panels fabricated camlocks, with tongue-and-groove joint.
4. We can design rounded corner cold room if needed.
5. All doors have fabricated heaters inside.

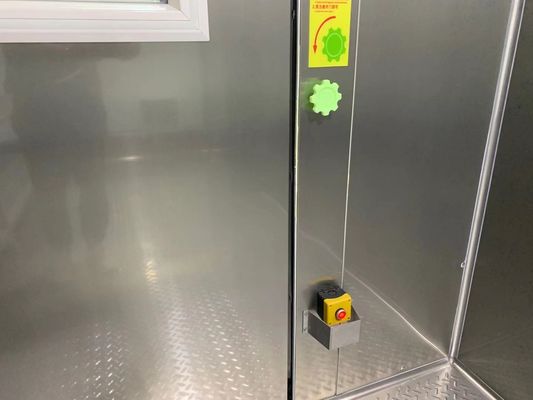

6. Doors included rubbles all around to ensure sealing property.
7 Door option fittings including: view window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc.
Blast Freezer Specifications (Moreover,we can customize)
Model | OMBC1201-W | OMBC1201-I | OMBC2402-W | OMBC2402-I | OMBC3602-W | OMBC3602-I |
Dimensions (W*D*H) | 1480*1400*2300 | 1480*1400*2300 | 1480*2581*2300 | 1480*2581*2300 | 1480*3762*2300 | 1480*3762*2300 |
Chiling Cycle | +90/+3℃ | +90/+3℃ | +90/+3℃ | +90/+3℃ | +90/+3℃ | +90/+3℃ |
Freezing Cycle | +90/-18℃ | +90/-18℃ | +90/-18℃ | +90/-18℃ | +90/-18℃ | +90/-18℃ |
Chiling Capacity 90min | 120kg | 120kg | 240kg | 240kg | 360kg | 360kg |
Chiling Capacity 240min | 90kg | 90kg | 160kg | 160kg | 210kg | 210kg |
Refrigeration Capacity | 9650W | 9650W | 16300W | 16300W | 24600W | 24600W |
Power Supply | 400/3/50Hz | 400/3/50Hz | 400/3/50Hz | 400/3/50Hz | 400/3/50Hz | 400/3/50Hz |
Power | 7.5KW | 7.5KW | 15KW | 15KW | 20KW | 20KW |
Absorbed Current | 15.8A | 15.8A | 31.6A | 31.6A | 42A | 42A |
Trays/ intestep(mm) | 1 Trolley GN 2/1 | 2 Trolley GN 2/1 | 3 Trolley GN 2/1 |
Description
1.Materials - Coldroom panels materials can be stainless steel,colorbond,aluminum,galvanized,salt steel etc.
Detail Standard Face plate | According to GB/T23932-2009 double skin metal faced insulating panels for builing | ||||||
According to JB/T6527-2006 The sandwich panels use for prefab cold room | |||||||
Metal steel face plate (exterior +interior) | Metal steel plate thickness | PU Thickness (mm) | |||||
50 | 75 | 100 | 120 | 150 | 200 | ||
Colorbond steel + Colorbond steel | 0.4-0.8 | √ | √ | √ | √ | √ | √ |
Salinized steel + Salinized steel | 0.4-1.0 | √ | √ | √ | √ | √ | √ |
Stainless steel +Stainless steel | 0.5-2.0 | √ | √ | √ | √ | √ | √ |
Aluminum steel + Aluminum steel | 0.4-2.0 | √ | √ | √ | √ | √ | √ |
Colorbond steel + Stainless steel | Customized | √ | √ | √ | √ | √ | √ |
Colorbond steel + Salinized steel | Customized | √ | √ | √ | √ | √ | √ |
Colorbond steel + Galvanized steel | Customized | √ | √ | √ | √ | √ | √ |
Colorbond steel + Aluminum steel | Customized | √ | √ | √ | √ | √ | √ |
Bare PU panel | √ | √ | √ | √ | √ | √ | |
Customized | Customized | √ | √ | √ | √ | √ | √ |
2. Coldroom structure: Cold room set combined piece by piece according to drawing.Each panel fabricated with camlock, with tongue-and - groove joint, very easy to install.
3. Panel Thickness : Panel thickness and working temperature based on ambient temperature 35℃
You can choose thickness according to temp required.
Panel Thickness | MM | 50 | 75 | 100 | 125 | 150 | 200 |
Heat Conductivity | W(M.K) | 0.27 | 0.24 | 0.18 | 0.17 | 0.16 | 0.14 |
Working Temperature | ℃ | ≥5℃ | ≥-5℃ | ≥-25℃ | ≥-30℃ | ≥-35℃ | ≥-45℃ |
Limiting Temperature | ℃ | ≥-5℃ | ≥-10℃ | ≥-30℃ | ≥-35℃ | ≥-40℃ | ≥-50℃ |

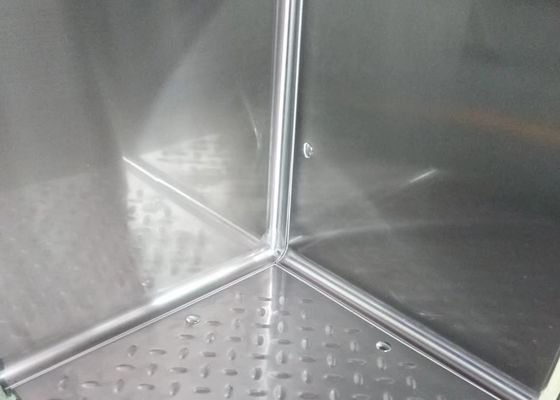

4. Corner type: Generally, square Corner inside is common used for coldroom panels. But we can also design curved corner if needed.It is environmental protection, beautiful and easy to clean.
5. Floor type, This deep freezer cold room is walk in type floor. Moreover, we have recessed type for your choice. Recessed type can backfill concrete on floor panel, to enhance hardness to allow forklift drive inside.

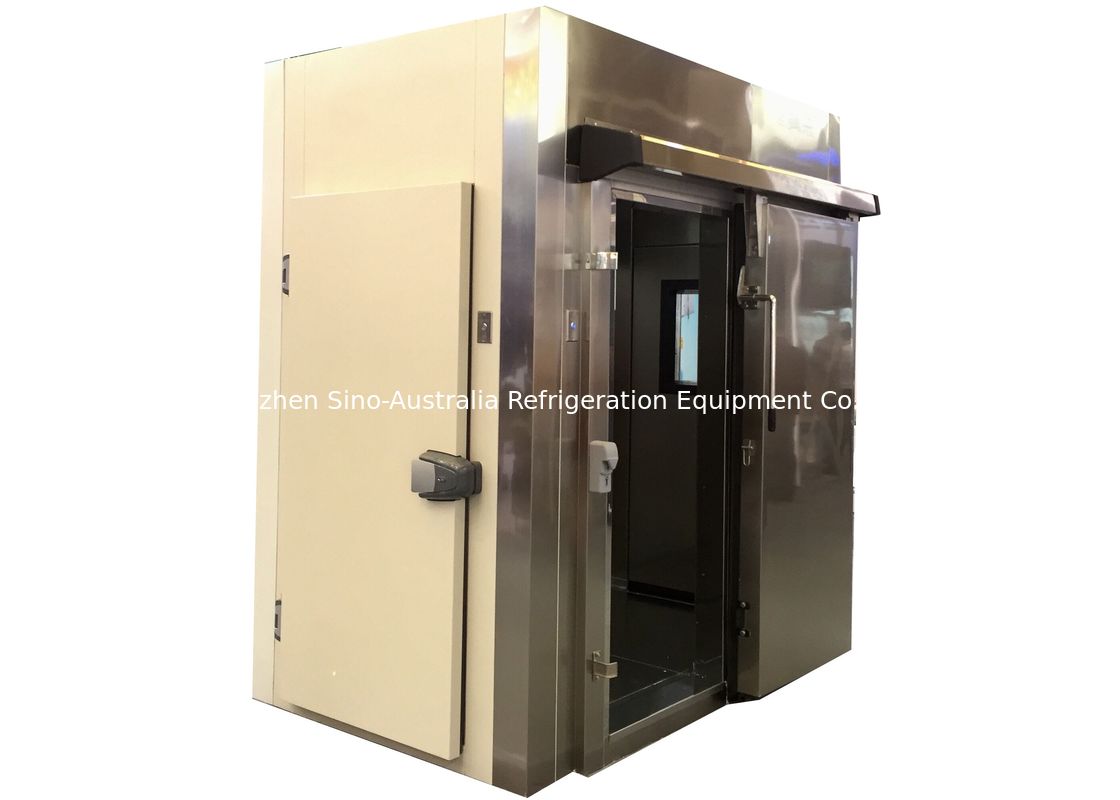

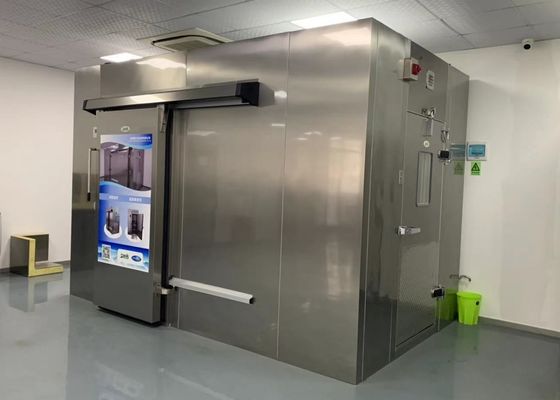

6. Door type: This deep freezer cold room showed above have sliding door and hinged door for your referance. One door for one room or two doors as your choice.
7. Application: We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request.
Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer. You can take below as referance.
Storage products | Storage temperature approach |
Vegetables, Fruit storage, Dry food | -5~5degree centigrade |
Drink, Beer storage, Beverage | 2~8 degree centigrade |
Meat, Fish, Seafood freeze storage | -18~--25 degree centigrade |
Medicine storage | 2~8 degree centigrade |
Medicine freeze storage | -25 degree centigrade |
Meat, Fish blast freezer | -35~-40 degree centigrade |
8. Refrigeration system : We supply refrigeration system to match different temperature coldroom.
Have brand air-cooled / water-cooled system, Emerson Copeland air-cooled / water-cooled system, Tecumseh air-cooled / water-cooled system. Also have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc
9. Cooperative partner: The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Oasis certificate:
- QS Industrial production license
- CE Certificate (Coldroom panel & door)
- B1 (GB/T 8624) Fire inspection report
- B2 (GB/T 8624) Fire inspection report
- SGS test report (single material)
- SGS test report (composite material)
11. Coldroom inquiry:
Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.
Cold room size (L x W x H) | Food &Temperature | Door type | Cold room material | Refrigeration system type |
2x2x2.6m | Fruit, +2C degree | Hinged door | 0.6mm stainless steel | Air-cooled |
4x3x2.7m | Frozen meat, -24C degree | Sliding door | 0.6mm colorbond | Air-cooled |
5x3x2.7m | Seafood, -24C degree | Sliding door | 0.8mm aluminum | Water-cooled |
5x6x2.8m | beverage, +2C degree | Hinged door | 0.7mm galvanized sheet | Air-cooled |
Our strengths:
Should you have any question, feel free to contact.You are all welcome at any time.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
