Place of Origin: | China |
Brand Name: | Oasis brand |
Certification: | GB/T 19001-2006/ISO9001:2015 |
Model Number: | High Temp/ Low Temp |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 2000-20000USD per set |
Packaging Details: | carton |
Delivery Time: | 5-6 weeks |
Payment Terms: | T/T |
Supply Ability: | 100 set per week |
Materials: | Stainless Steel,aluminum,colorbond, Checker Plate | Steel Thickness: | 0.6mm,0.8mm,1.0mm, 1.2mm Etc |
---|---|---|---|
Panel Thickness: | 75mm,100mm,150mm | Coner Type: | Right Angle Or Rounded Corner |
Floor Type: | Walk-in Or Recessed | Density: | 42KG/M3 |

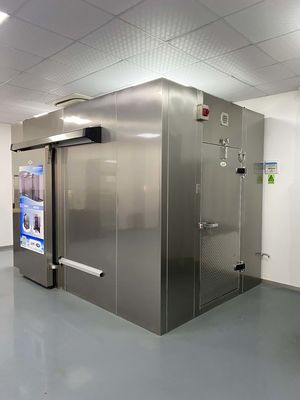

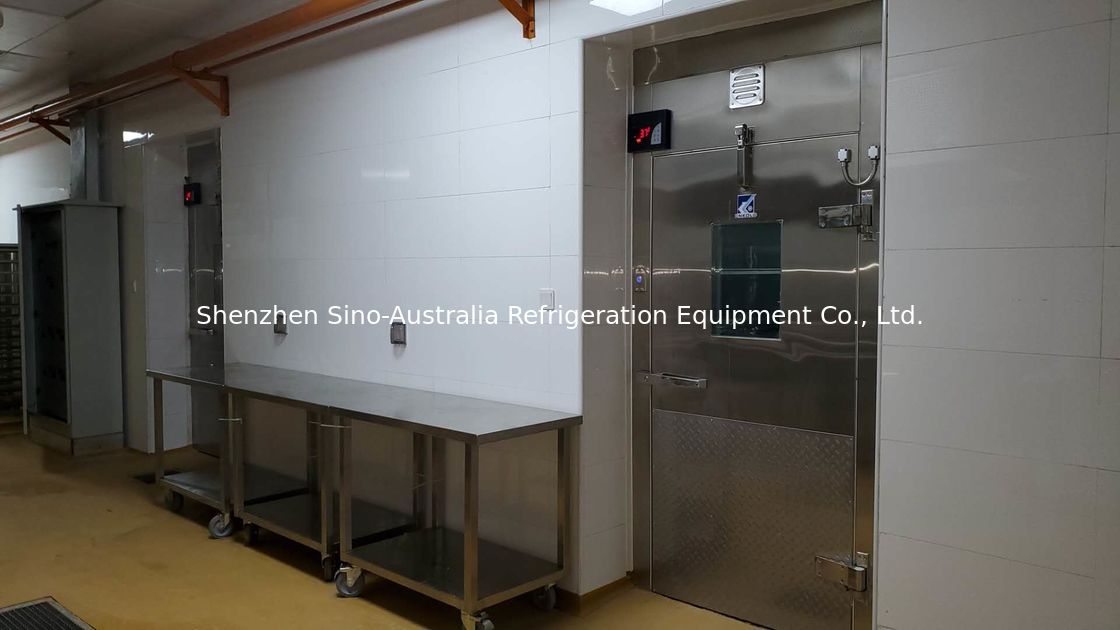

Walk In Coolroom, Combined 304 Stainless Steel or white colorbond Cold Room Cooler for Seafood,Meat,cold kitchen
Description and feature
1. We have many materials of coldroom for your referance. Generally, stainless steel coldroom often used for 5 star hotel. Talt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.
2. Our panel made by high pressure foaming, standard width is 1160mm, height can be from 2000mm to 8000mm, moreover, all these panels can be customized as your specical request. We use high quality, top grade and perfect appearance to show the unique features of Coldroom, with the high density metal panel and camlock, can use under 150 kg tension.
3. Panel thickness and working temperature,based on ambient temperature 35℃
Panel Thickness | MM | 50 | 75 | 100 | 125 | 150 | 200 |
Heat Conductivity | W(M.K) | 0.27 | 0.24 | 0.18 | 0.17 | 0.16 | 0.14 |
Working Temperature | ℃ | ≥5℃ | ≥-5℃ | ≥-25℃ | ≥-30℃ | ≥-35℃ | ≥-45℃ |
Limiting Temperature | ℃ | ≥-5℃ | ≥-10℃ | ≥-30℃ | ≥-35℃ | ≥-40℃ | ≥-50℃ |
4. Our coldrooms have curved corner design if needed.It is environmental protection, beautiful and easy to clean.
5. Floor type, we have walk-in and recessed type for your choice.
6. We have swing (hinged) door and sliding door for your choice.
7. We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.
8. We can also supply refrigeration system to match different temperature coldroom. Have brand air-cooled / water-cooled system, Emerson Copeland air-cooled / water-cooled system, Tecumseh air-cooled / water-cooled system. Also have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc
9. SCOPE of application:The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Our high quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license
CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.
All these coldroom and systems can be customized. Should you have any question, feel free to contact.
