| Place of Origin: | China |
| Brand Name: | Danfoss Scroll |
| Certification: | CE / UL |
| Model Number: | HRH038U4 |
| Minimum Order Quantity: | 12 |
|---|---|
| Price: | negotiate |
| Packaging Details: | pallets |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per weeks |
| Type: | Danfoss Scroll | Application: | Refrigeration And Air Conditioning |
|---|---|---|---|
| Condition: | Brand New | Power: | 380-400V/3/50Hz ,460/3/60Hz |
| Refrigeration: | R410a | Cooling Capacity: | 3TR, 8820W |
| Connection: | Welding And Rotalock | Name: | Danfoss Compressor |
| High Light: | 3RT Danfoss Scroll Compressor,HRH038U4 Danfoss Scroll Compressor,R410a Refrigeration And Air Conditioning Compressor |
||

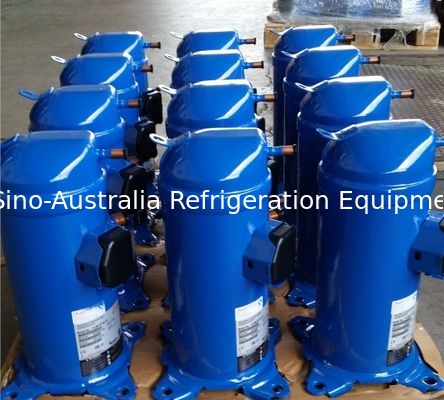

3RT 8820W HRH038U4 Danfoss Scroll Compressor HRH Series R410a Refrigeration And Air Conditioning Compressor
The working range from from 2.4 house power to 10.0HP.
Can be used for refrigerant R410a
Can be used for both 380-400V/3/50Hz ,460/3/60Hz, 208-230v/1/60Hz, 208-230v/3/60Hz,220-240v/1/50Hz etc
Very quiet. Really very quiet
Compact. A scroll compressor is very small.
Simple design, not so many parts
Low maintenance (hardly any)
Specifications of Danfoss scroll compressor
| Model | Cooling Capacity (TR) | Cooling Capacity (W) | Cooling Capacity (Btu/h) | Refrigerant |
| HRM032U4 | 2.7 | 7850 | 26790 | R22 |
| HRM034U4 | 2.8 | 8350 | 28490 | R22 |
| HRM038U4 | 3.2 | 9240 | 31520 | R22 |
| HRM040U4 | 3.3 | 9710 | 33120 | R22 |
| HRM042U4 | 3.5 | 10190 | 34770 | R22 |
| HRM045U4 | 3.8 | 10940 | 37310 | R22 |
| HRM047U4 | 3.9 | 11500 | 39250 | R22 |
| HRM048U4 | 4.0 | 11510 | 39270 | R22 |
| HRM051T4 | 4.3 | 12390 | 42280 | R22 |
| HRM051U4 | 4.3 | 12800 | 43690 | R22 |
| HRM054U4 | 4.5 | 13390 | 45680 | R22 |
| HRM058U4 | 4.8 | 14340 | 48930 | R22 |
| HRM060T4 | 5.0 | 14570 | 49720 | R22 |
| HRM060U4 | 5.0 | 14820 | 50580 | R22 |
| HLM068T4 | 5.7 | 16880 | 57580 | R22 |
| HLM072T4 | 6.0 | 17840 | 60870 | R22 |
| HLM075T4 | 6.3 | 18430 | 62880 | R22 |
| HLM081T4 | 6.8 | 19890 | 67880 | R22 |
| HCM094T4 | 7.8 | 23060 | 78670 | R22 |
| HCM109T4 | 9.1 | 26690 | 91070 | R22 |
| HCM120T4 | 10.0 | 29130 | 99390 | R22 |
| HRP034T4 | 2.8 | 7940 | 27080 | R407C |
| HRP038T4 | 3.2 | 8840 | 30150 | R407C |
| HRP040T4 | 3.3 | 9110 | 31080 | R407C |
| HRP042T4 | 3.5 | 9580 | 32690 | R407C |
| HRP045T4 | 3.8 | 10810 | 36890 | R407C |
| HRP047T4 | 3.9 | 11130 | 37980 | R407C |
| HRP048T4 | 4.0 | 11100 | 37880 | R407C |
| HRP051T4 | 4.3 | 12120 | 41370 | R407C |
| HRP054T4 | 4.5 | 12570 | 42880 | R407C |
| HRP058T4 | 4.8 | 13470 | 45970 | R407C |
| HRP060T4 | 5.0 | 13860 | 47280 | R407C |
| HLP068T4 | 5.7 | 15700 | 53560 | R407C |
| HLP072T4 | 6.0 | 16810 | 57350 | R407C |
| HLP075T4 | 6.3 | 18040 | 61550 | R407C |
| HLP081T4 | 6.8 | 18600 | 63470 | R407C |
| HCP094T4 | 7.8 | 21590 | 73660 | R407C |
| HCP109T4 | 9.1 | 25070 | 85550 | R407C |
| HCP120T4 | 10.0 | 27370 | 93400 | R407C |
