CE CCC Hydraulic Door Close Freezer Room Coldroom Parts



Stainless Steel Customized Hydraulic Door Close For Cold Room, Cold Storage, Freezer Room

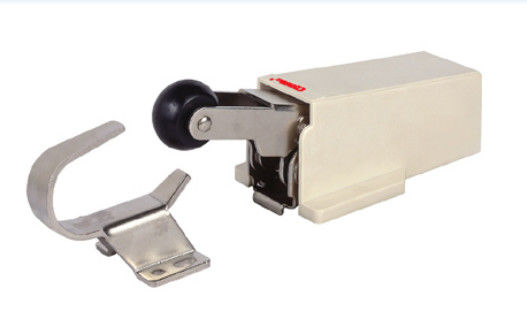

Hydraulic Door Close

CM-1230-HS
(Material:Stainless steel body,plastic case．)



● This kind of door closer is fit for plane door.It can close the door tightly in 3-4 seconds . It can prevent the cold air leaking,and close door quietly,.
● The structure is hydraulic,the cylinder is filled with cold-resistant hydraulic oil.You can open door freely eventhough outdoor temperature is below -20℃.
● CM-1230-HS opening strength : 6kgs, closing strength :3kgs.
● CM-1230-HSL opening strength : 8kgs, closing strength :5.5kgs.
● The case and bracket's material are all 304# stainless steel, CM-1230-HS's case is made of plastic.
● Remark: with 7 pcs self-tapping screws attached.

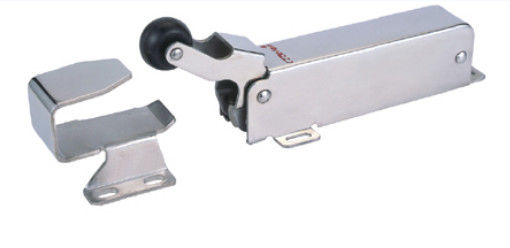

Heavy-Duty Hydraulic Door Close

CM-1230-HSL
(Material:Stainless steel body,stainless case．)



● This kind of door closer is fit for plane door.It can close the door tightly in 3-4 seconds . It can prevent the cold air leaking,and close door quietly.
● The structure is hydraulic,the cylinder is filled with cold-resistant hydraulic oil.You can open door freely eventhough outdoor temperature is below -20℃.
● CM-1230-HS opening strength : 6kgs, closing strength :3kgs.
● CM-1230-HSL opening strength : 8kgs, closing strength :5.5kgs.
● The case and bracket's material are all 304# stainless steel, CM-1230-HS's case is made of plastic.
● Remark: with 7 pcs self-tapping screws attached.





We can also supply other cold room door components



Counterpoising Square Pressure Ventilator (Fireproof material)

CM-1110-R





● The function of this ventilator is to keep the inside and outside pressure to be alanceable , even the inside temperature is under 0℃, so as to ensure free open of the door.

● With a temperature controller inside the window, If the temperature inside the coldroom is below -40℃ ,which also keep the window's temperature within +20℃~40℃, then guarantee fluent ventilation.

● With a stainless steel filtrating net, which prevent the insect from entering.

● Groove on the surface, avoid the inleakage of water.

● AC 220V or AC 110V are on your option.





Counterpoising Circular Pressure Ventilator -

CM-1110-S





● The function of this ventilator is to keep the inside and outside pressure to be alanceable , even the inside temperature is under 0℃, so as to ensure free open of the door.

● With a temperature controller inside the window, If the temperature inside the coldroom is below -40℃ ,which also keep the window's temperature within +20℃~40℃, then guarantee fluent ventilation.

● With a stainless steel filtrating net, which prevent the insect from entering.

● Groove on the surface, avoid the inleakage of water.

● AC 220V or AC 110V are on your option.





Reversible Reach Hinge



Reversible Plane Hinge (with spring)



Adjustable Door Hinge



Used for coolroom, freezer room, cold storage doors



Stainless Steel, Zinc materials ect.





CM-1220-H
● Material:High pressure die-cast zinc
●support the farthest weight:85kg



CM-1220-HS
● Material:Precision stainless steel
● support the farthest weight:95kg



● Special designed plane door hinge,safe and durable
● Beautiful figure, the door frame and coldroom wall are in the same plane．

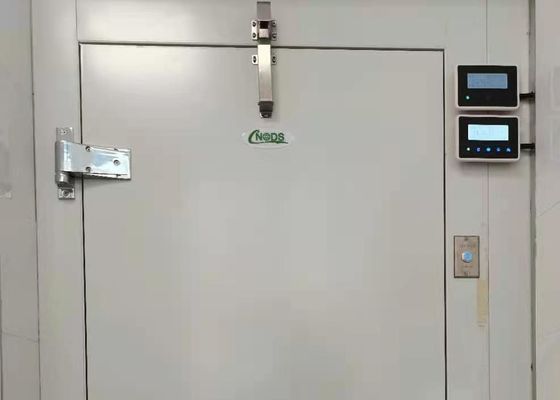

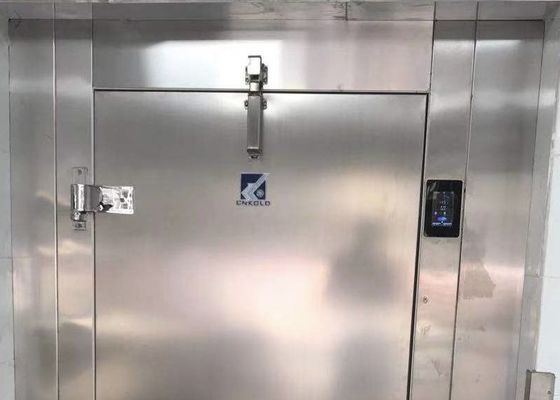

● With CM or YL series series of door closer and door handle, can close door quietly,and prevent the cold air leaking (see below door photos)







Swing / Hinged Door Handles





CM-1210-H

Material: high pressure die-cast zinc



CM-1210-HS

Material: precision stainless steel

• Inside release handle is suitable for 80-100mm thickness door frame. Special sizes are on your option.
• With speical designed telescopic lock
• Can be installed padlock in the front of the latch.

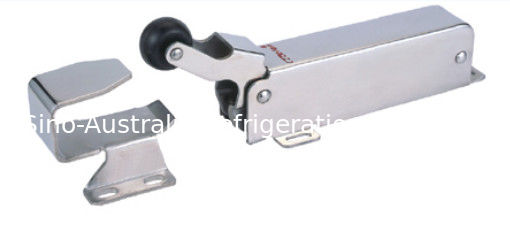

Heavy-Duty Hydraulic Door Close





CM-1230-HSL
(Material:Stainless steel body,stainless case．)



●This kind of door closer is fit for plane door.It can close the door tightly in 3-4 seconds . It can prevent the cold air leaking,and close door quietly.

●The structure is hydraulic,the cylinder is filled with cold-resistant hydraulic oil.You can open door freely eventhough outdoor temperature is below -20℃.

●CM-1230-HS opening strength : 6kgs, closing strength :3kgs.

●CM-1230-HSL opening strength : 8kgs, closing strength :5.5kgs.

●The case and bracket's material are all 304# stainless steel, CM-1230-HS's case is made of plastic.

●Remark: with 7 pcs self-tapping screws attached.





SAFTETY LATCH



CM-1179-L CAM-LIFT SAFETY LATCH



Material: high pressure die-cast zinc, with a set of stainless steel screw, adjustable height from 63.00mm--92.00mm



CM-1178-L PLANE SAFETY LATCH



Material: high pressure die-cast zinc, with a set of stainless steel screw, adjustable height from 31.00mm--38.00mm



Use with CM-1178-E3 inside release handle, CM-1178-E1 or CM-1178-E2 are on your option



CM-1179-L special designed latch series with extensile tongue in the front of latch body can shut automatically after cold room door is open to an angle about 45° if equipped with two hinges ( one hinge with spring, the other one without spring, like CM-1238 series)



The hole in the body center is use for padlock.





Safety Latches & Inside Release Handles



Item No.	Item Name	Material	Description
CM-1178-L	CAM-LIFT SAFETY LATCH	High precision die-cast zinc, with a set of stainless steel screw	adjustable height from 63.00mm to 100.00mm
CM-1178-P	PLANE SAFETY LATCH	High precision die-cast zinc, with a set of stainless steel screw	adjustable height from 25.00mm to 33.00mm
CM-1178-LS	CAM-LIFT SAFETY LATCH	Precision stainless steel, with a set of stainless steel screw	adjustable height from 63.00mm to 100.00mm
CM-1178-PS	PLANE SAFETY LATCH	Precision stainless steel, with a set of stainless steel screw	adjustable height from 25.00mm to 33.00mm
CM-1178-E1	INSIDE RELEASE HANDLE	Precision stainless steel, with a set of stainless steel screw
CM-1178-E2	INSIDE RELEASE HANDLE	Plastic fiber rod, Stainless steel spring. Rubber protective wraps















Ordering Guide



Description	Model	Material	Bearing weight
Reversible Plane Hinge	CM-1220-H	High pressure die-cast zinc	85kg
Reversible Plane Hinge	CM-1220-HS	Precision stainless steel	95kg
Door Handles	CM-1210-H	High pressure die-cast zinc
Door Handles	CM-1210-HS	Precision stainless steel
Hydraulic Door Close	CM-1230-HSL	Stainless steel body,stainless case



Should you have any question, feel free to contact.
