| Place of Origin: | China |
| Brand Name: | Weiguang |
| Certification: | CE / CCC |
| Model Number: | YWF4E-300,YWF4D-300 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | negotiate |
| Packaging Details: | Cartons or Pallet |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per week |
| Power Supply: | 220V,380V | Frequency: | 50Hz,60Hz |
|---|---|---|---|
| Ambient Temp: | -30℃ To 50℃ | Average Service Life: | Over 20000 Hour |
| Name: | Axial Fan Motor | Certificate: | CE/UL,CCC |
| High Light: | Weiguang Evaporator Fan Motor,YWF4D-300 Refrigeration Fan Motors,YWF4E-300 Refrigeration Fan Motors |
||

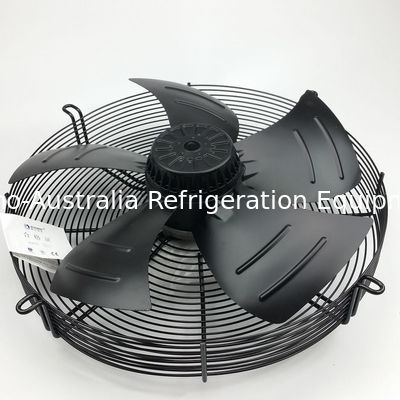

Weiguang Aixal Fan Motors For Radiator,Evaporator, Refrigeration Equipments ,220-380V,50-60Hz,YWF4E-300,YWF4D-300
General Information and Features
Weiguang YWF series motors are shaded pole motors with single phase, 4 shaded poles and running at rated voltage of 220-240V,50/60Hz or 110-120V,60Hz. They are widely used in the radiator, evaporator and other refrigeration equipment.
1. The output power is from 5W to 34W, which is relative to the stack length.
2. The insulation class of motors is B, and the protection class of that is IP42. On request IP44 is available.
3. The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃+5℃ for outpower above 10W.
4. The applicable ambient temperature is from -30℃ to +50℃.
5. Because our standard motors adopt sleeve bearing, we suggest installing these motors horizontally. On request motors can be furnished with ball bearings.
6. The average service life of motors is over 20000 hours.
7. These shaded pole motors passed CE,VED,UL and CCC approval.
Ordering Specifications as follows
| Model | Voltage (V) | Frequency (Hz) | Current (A) | Power Input (W) | Speed (r/min) | Air Volume (m2/h) | Noise Level (Dba) |
| YWF2D-250 | 380 | 50 | 0.3 | 100 | 2650 | 1800 | 60 |
| YWF2E-250 | 220 | 50 | 0.55 | 100 | 2500 | 1800 | 60 |
| YWF4D-250 | 380 | 50 | 0.2 | 70 | 1400 | 1460 | 55 |
| YWF4E-250 | 220 | 50 | 0.3 | 70 | 1400 | 1460 | 55 |
| YWF2D-300 | 380 | 50 | 0.35 | 140 | 2550 | 2800 | 60 |
| YWF2E-300 | 220 | 50 | 0.65 | 140 | 2530 | 2800 | 60 |
| YWF4D-300 | 380 | 50 | 0.24 | 80 | 1380 | 1831 | 58 |
| YWF4E-300 | 220 | 50 | 0.4 | 80 | 1380 | 1743 | 58 |
| YWF4D-330 | 380 | 50 | 0.3 | 100 | 1300 | 2550 | 62 |
| YWF4E-330 | 220 | 50 | 0.5 | 100 | 1300 | 2550 | 62 |
| YWF4D-350 | 380 | 50 | 0.4 | 150 | 1380 | 3170 | 62 |
| YWF4E-350 | 220 | 50 | 0.7 | 150 | 1380 | 2976 | 62 |
| YWF6D-350 | 380 | 50 | 0.35 | 90 | 920 | 2100 | 56 |
| YWF6E-350 | 220 | 50 | 0.42 | 90 | 920 | 2000 | 56 |
| YWF4D-400 | 380 | 50 | 0.5 | 180 | 1380 | 4500 | 68 |
| YWF4E-400 | 220 | 50 | 0.8 | 180 | 1380 | 4400 | 68 |
| YWF6D-400 | 380 | 50 | 0.38 | 110 | 920 | 3200 | 58 |
| YWF6E-400 | 220 | 50 | 0.5 | 110 | 920 | 3200 | 58 |
| YWF4D-450 | 380 | 50 | 0.6 | 250 | 1360 | 5600 | 68 |
| YWF4E-450 | 220 | 50 | 1.2 | 250 | 1350 | 5507 | 68 |
| YWF6D-450 | 380 | 50 | 0.4 | 150 | 920 | 4600 | 60 |
| YWF6E-450 | 220 | 50 | 0.8 | 160 | 920 | 4600 | 60 |
| YWF4D-500 | 380 | 50 | 0.9 | 450 | 1300 | 6246 | 72 |
| YWF4E-500 | 220 | 50 | 1.85 | 420 | 1300 | 6046 | 72 |
| YWF6D-500 | 380 | 50 | 0.6 | 230 | 900 | 5800 | 68 |
| YWF6E-500 | 220 | 50 | 1.2 | 230 | 900 | 5800 | 68 |
| YWF4D-550 | 380 | 50 | 1.2 | 600 | 1300 | 8487 | 75 |
| YWF4E-550 | 220 | 50 | 2.4 | 500 | 1300 | 8268 | 75 |
| YWF6D-550 | 380 | 50 | 0.8 | 330 | 900 | 6509 | 70 |
| YWF6E-550 | 220 | 50 | 1.7 | 330 | 900 | 6348 | 70 |
| YWF4D-600 | 380 | 50 | 1.6 | 830 | 1350 | 12500 | 78 |
| YWF4E-600 | 220 | 50 | 3 | 650 | 1300 | 10500 | 78 |
| YWF6D-600 | 380 | 50 | 1.5 | 520 | 900 | 9400 | 72 |
| YWF6E-600 | 220 | 50 | 2.4 | 520 | 900 | 9400 | 72 |
| YWF4D-630 | 380 | 50 | 1.8 | 880 | 1320 | 13000 | 78 |
| YWF4E-630 | 220 | 50 | 3.2 | 700 | 1300 | 11000 | 78 |
| YWF6D-630 | 380 | 50 | 1.6 | 560 | 900 | 9500 | 75 |
| YWF6E-630 | 220 | 50 | 2.5 | 560 | 900 | 9500 | 75 |
