|Place of Origin:||China|
|Brand Name:||Oasis brand|
|Model Number:||High Temp/ Low Temp|
|Minimum Order Quantity:||1 set|
|Delivery Time:||5-6 weeks|
|Supply Ability:||100 set per week|
|Material:||Stainless Steel,colorbond,aluminum,checker Plate||Steel Thickness:||0.4mm,0.6mm,0.8mm,1.0mm, Etc|
|Panel Thickness:||75mm,100mm,150mm,200mm||Floor Type:||Walk-in Or Recessed Type|
|Dimension:||Customized||Function:||Refrigeration And Insulation|
|Temperature:||Medium And Low Temperature||Power:||220V/380V|
|Density:||42KG/M3||Cooling Type:||Air-cooled Or Water-cooled|
42KG/M3 Commercial Cold Rooms,
200mm Panel Commercial Cold Rooms,
42KG/M3 walk in cold rooms

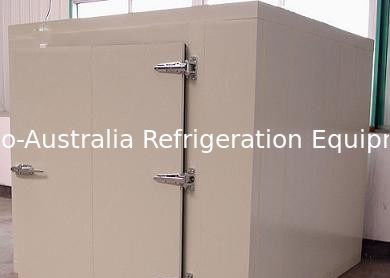

Cold Room Fridge, Combined Commercial Cold Rooms, White Colorbond / 304 Stainless Steel Customized Freezer /Chiller Room
Our Oasis brand kit set coldroom and refrigeration solutions are distributed exclusively throughout the world. These high quality modular, polyurethane insulation cool rooms provide a simple, quick and flexible cold and freezer refrigeration system solution, and can be customized to suit any size requirement. These systems are suitable for all kinds of industry, like hotel, restaurant,cold chain etc.
1. Panel density is 42KG, can be used for temperature -45℃ to over 5 ℃.
2. All panels fabricated camlocks, with tongue-and-groove,very easy to intall according to installtion drawing.
3. Rounded corner inside cold room if needed.
4. Can design cold room to hide floor and ceiling
5. To avoid door frozen when working, all doors have fabricated heaters inside.
6. Doors fabricated rubbles all around to ensure sealing property.
7. Light weight, high strength, to meet the demand of outside loading.
8. Option fittings: view window, kick plate, alarm, air curtains, PVC curtains, LED light, controllers etc.
9. The sandwich panel with the core of PU, is prefabricated in the factory with two pre-coated steel sheets.
1. Materials - We have many materials of coldroom for your referance. Generally, stainless steel coldroom often used for 5 star hotel. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.
|Detail Standard Face plate||According to GB/T23932-2009 double skin metal faced insulating panels for builing|
|According to JB/T6527-2006 The sandwich panels use for prefab cold room|
|Metal steel face plate (exterior +interior)||Metal steel plate thickness||PU Thickness (mm)|
|Colorbond steel + Colorbond steel||0.4-0.8||√||√||√||√||√||√|
|Salinized steel + Salinized steel||0.4-1.0||√||√||√||√||√||√|
|Stainless steel +Stainless steel||0.5-2.0||√||√||√||√||√||√|
|Aluminum steel + Aluminum steel||0.4-2.0||√||√||√||√||√||√|
|Colorbond steel + Stainless steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Salinized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Galvanized steel||Customized||√||√||√||√||√||√|
|Colorbond steel + Aluminum steel||Customized||√||√||√||√||√||√|
|Bare PU panel||√||√||√||√||√||√|
2. Structure - Combined Colroom panels piece by piece according to intallation drawing. We use high quality, top grade and perfect appearance to show the unique features of Coldroom, with the high density metal panel and camlock, can use under 150 kg tension.
3. Panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃
4. Corner type - we can supply curve corner and right corner cold rooms.
- Curver corner :
5. Floor type - Walk in type floor is installed on the ground directly. The recessed type, generally the floor panel will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare panels, to enhance the hardness of the floor and allow forklift drive inside.
6. Door type - Gennerally, we will offer swing (hinged) or sliding door for coldrrom as your request. If you have special request, we can customize accordingly.
7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.
|Storage product||Tempreture range|
|Fruit, vegetable, dry food beverage||0C~-5℃|
|Medicine, cake, pastry, chemical material||0C~-5℃|
|Ice storage, ice cream||-5~-10℃|
|Meat, seafood frozen, cold kitchen||-18~-25℃|
8. Refrigeration system matched - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.
9. Cooperative partners
The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Oasis certificate:
- QS Industrial production license
- CE Certificate (Coldroom panel & door)
- B1 (GB/T 8624) Fire inspection report
- B2 (GB/T 8624) Fire inspection report
- SGS test report (single material)
- SGS test report (composite material)
11. Coldroom inquiry model- Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.
|Cold room size (L x W x H)||Food &Temperature||Door type||Cold room material||Refrigeration system type|
|3x4x2.6m||Fruit, +2C degree||Hinged door||0.6mm stainless steel||Water-cooled|
|4x6x2.7m||Frozen meat, -18C degree||Sliding door||0.8mm colorbond||Air-cooled|
|5x6x2.7m||Seafood, -24C degree||Sliding door||0.5mm aluminum||Air-cooled|
|6x7x2.8m||beverage, +2C degree||Hinged door||1.0mm galvanized sheet||Air-cooled|
1. Focus on refrigeration equipment more than 18 years. We make our products by heart.
2. Strong R&D department make sure reasonable design and excellent quality.
3. We have engineers and technician from Desmon, they have rich experience on the Panel
5. 24 hours online service.
6. High efficiency team work full of love & reponsibility.
All these coldroom and systems can be customized. Should you have any question, feel free to contact.You are all welcome at any time.
