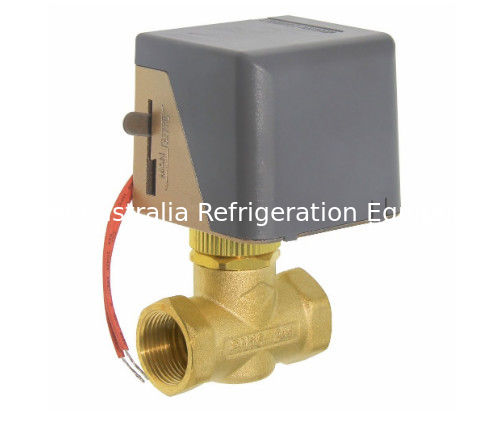

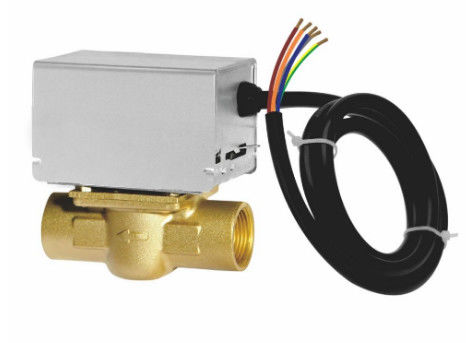

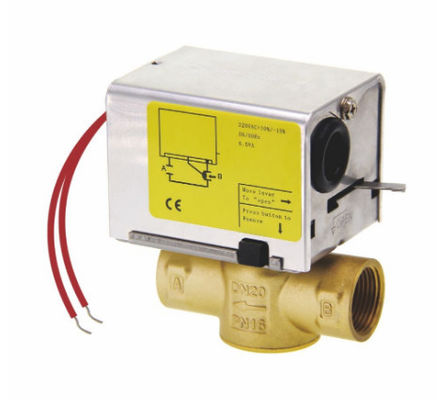

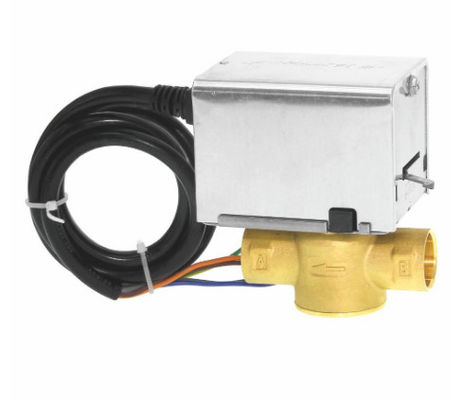

CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing

CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing

  • CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing
  • CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing
  • CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing
  • CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing
Product Details:
Place of Origin: China
Brand Name: Original
Certification: CE/ROHS/FCC/SGS
Model Number: DDF series
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: negotiate
Packaging Details: cartons
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 2000pcs per weeks
Contact Now
Detailed Product Description
Stem Material: Stainless Steel Travel Time: 11~15 Seconds
Body Material: Forged Brass Working Medium: Cold/hot Water
Application: Refrigeration / Air-conditioning Name: Motorised Valve
Fluid Temperature: 2-94℃ Pressure: 1.6MPa
High Light:

Forged Brass 2 Port Motorised Valve

,

Nitrile Rubber Sealing 2 Port Motorised Valve

,

CE ROHS 2 Way Motorised Valve

Motorised Valve For Refrigeration / Air Conditioning System, Condensing Unit, Refrigeration Unit



Features



● Body material: forged brass
● Stem material: stainless steel06Cr19Ni10
● Sealing material: nitrile rubber (NBR)
● Working medium: cold/hot water
● Fluid temperature: 2-94℃
● Pressure: 1.6MPa
● Ambient temperature: 0-65 ℃ maximum relative humidity is no dew
● Travel time: 11~15 seconds
● Motor torque: >800gf.cm



Specifications

Order
No.
Model No. Valve
Type
DN Thread
Size
Kvs Maximum
differential
pressure

kPa

Dimensions
L W H
12060 DDF-G-215*DFQ-JA1-220 2-way 15 G1/2 1.5 250 52 14 44.5
12061 DDF-G-220*DFQ-JA1-220 2-way 20 G3/4 2.1 250 64 17.5 44.5
12063 DDF-G-225*DFQ-JA1-220 2-way 25 G1 3.3 100 71 20 44.5
12064 DDF-G-315*DFQ-JA1-220 3-way 15 G1/2 1 250 55 30 40
12065 DDF-G-320*DFQ-JA1-220 3-way 20 G3/4 2.3 250 64 35 45
12066 DDF-G-325*DFQ-JA1-220 3-way 25 G1 3.6 100 66 35 45
Note: The table is recommended model, you can refer to the following selection
description of the combination of models, please consult the sales staff for details.





CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing 0





Model Selection Description





CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing 1







Serial
number
Code definition Optional range definition
Motorized valve body series DDF
Valve body code G=internal thread, high pressure motorized valve
Valve type 2=2-way valve,3=3-way valve
DN 15=DN15,20=DN20,25=DN25
Motorized valve actuator series DFQ
Actuator code JA1=2-wire,JA2=5-wire,JA3=2-wire aluminum alloy shell
Input power 220=220VAC,110=110VAC,24AC=24VAC



CE ROHS Forged Brass 2 Port Motorised Valve nitrile rubber Sealing 2
