Product Details:
Payment & Shipping Terms:
|
Type: | Semi Hermetic Reciprocating | Application: | Refrigeration |
---|---|---|---|
Refrigerant: | R404a,R134a,R407,R22 | Series: | C1 To C8 |
Power: | 380-420V/50Hz,440-480V/60Hz | Condition: | Brand New |
Packing: | Wooden Case | Origin: | China |
High Light: | 6GE-40Y Semi Hermetic Compressor,40HP Semi Hermetic Type Compressor |

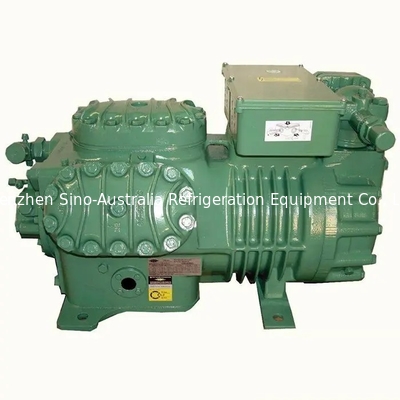

40HP Semi-Hermetic Compressor 6GE-40Y For Freezer Chiller Room
Technical and Performance Data
Compressor type | Motor version | Displacement at 1450 min-1 | Number of cylinders | Refrigerating capacity Qo | Oil charge | Weight | Pipe connections | Motor | Max. operating current | Max. power consumption | I FI 70 Hz | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R134a | R404A | DL | SL | ||||||||||||
m3/h | W | W | W | W | dm3 | kg | mm | mm | ➁ | A | kW | A | |||
6GE-40(Y) | 1 | 126,8 | 6 | 69400 | 38800 | 63800 | 21250 | 4,75 | 238 | 35 | 54 | PW➅ | 73,9 | 42 | - |
semi-hermetic reciprocating compressors are Germany brand, made in Beijing factory, which are application for refrigeration or air conditioning plants. They can be used for cold room, freezer room etc.
Features
1. Universally application
One compressor version for R134a,R404a,R507a,R407c and R22. Can be used for air-conditioning, for medium and low temperature applications.
2. Large application range
Low temperature refrigeration with R404a/R507a over a wide range without additional cooling possible. Varicool for low temperature refrigeration with R22.
3. Energy efficient
High cooling capacity and minimal energy requirements through: highly efficient working valves, minimal dead space, efficient, large volume motor.
4.Quiet and low vibration
Optimised mass balance, integrated pulsation mufflers
5. Robust
Solid vavle plate design, valve reeds of impact resistant spring steel.
6. Electronic compressor protection
Thermal motor monitoring by PTC sensors, optional discharge gas temerature sensor
Ordering Specifications for your referance
Model | Displ. @1450r/min | Cylinders | Oil charge | Weight | Discharge line | Suction line | ||
m³/h | dm³ | Kg | mm | in | mm | in | ||
2KES-05Y | 4.06 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
2JES-07Y | 5.21 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
2HES-1Y | 6.51 | 2 | 1 | 44 | 12 | 1/2" | 16 | 5/8" |
2HES-2Y | 6.51 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
2GES-2Y | 7.58 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
2FES-2Y | 9.54 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
2FES-3Y | 9.54 | 2 | 1 | 47 | 12 | 1/2" | 16 | 5/8" |
4FES-3Y | 18.1 | 4 | 2 | 82 | 16 | 5/8” | 22 | 7/8” |
4FES-5Y | 18.1 | 4 | 2 | 86 | 16 | 5/8” | 22 | 7/8” |
4EES-4Y | 22.7 | 4 | 2 | 84 | 16 | 5/8” | 28 | 1 1/8” |
4EES-6Y | 22.7 | 4 | 2 | 86 | 16 | 5/8” | 28 | 1 1/8” |
4DES-5Y | 26.8 | 4 | 2 | 86 | 22 | 7/8” | 28 | 1 1/8” |
4DES-7Y | 26.8 | 4 | 2 | 89 | 22 | 7/8” | 28 | 1 1/8” |
4CES-6Y | 32.5 | 4 | 2 | 91 | 22 | 7/8” | 28 | 1 1/8” |
4CES-9Y | 32.5 | 4 | 2 | 91 | 22 | 7/8” | 28 | 1 1/8” |
4VES-6Y | 34.7 | 4 | 2.6 | 129 | 22 | 7/8” | 28 | 1 1/8” |
4VES-7Y | 34.7 | 4 | 2.6 | 129 | 22 | 7/8” | 28 | 1 1/8” |
4VES-10Y | 34.7 | 4 | 2.6 | 139 | 22 | 7/8” | 28 | 1 1/8” |
4TES-8Y | 41.3 | 4 | 2.6 | 134 | 28 | 1 1/8” | 35 | 1 3/8” |
4TES-9Y | 41.3 | 4 | 2.6 | 134 | 28 | 1 1/8” | 35 | 1 3/8” |
4TES-12Y | 41.3 | 4 | 2.6 | 414 | 28 | 1 1/8” | 35 | 1 3/8” |
4PES-10Y | 48.5 | 4 | 2.6 | 139 | 28 | 1 1/8” | 35 | 1 3/8” |
4PES-12Y | 48.5 | 4 | 2.6 | 139 | 28 | 1 1/8” | 35 | 1 3/8” |
4PES-15Y | 48.5 | 4 | 2.6 | 147 | 28 | 1 1/8” | 42 | 1 5/8” |
4NES-12Y | 56.2 | 4 | 2.6 | 141 | 28 | 1 1/8” | 35 | 1 3/8” |
4NES-14Y | 56.2 | 4 | 2.6 | 141 | 28 | 1 1/8” | 35 | 1 3/8” |
Should you have any question, feel free to contact
