|Material:||Stainless Steel,colorbond||Steel Thickness:||0.6mm,0.8mm,1.0mm, 1.2mm Etc|
|Panel Thickness:||100mm,150mm||Coner Type:||Rounded Corner Or Right Angle|
|Floor Type:||Recessed Type Or Walk In Type||Dimension:||Customized|
|Door Type:||Sliding And Hinged Door||Density:||42KG/M3|
|Condition:||Oasis Brand New||Function:||Insulation|
|Power:||110/220/380V||Application:||Chiller,Freezer And Other Cooling Equipment|
220V 380V Deep Freezer Cold Room,
SS314 Deep Freezer Cold Room,
150mm Panel meat freezer room
304 Stainless Steel/Colorbond Customized Deep Freezer Cold Room Of Fish And Meat Walk In Freezer Room
Oasis kit set cold room solutions are distributed exclusively throughout all over the world. These premium modular, polyurethane insulation rooms provide a simple, quick and flexible cold and freezer room solution, and can be supplied to suit any modular size requirement.
1. Panel density is 42KG.
2. With tongue-and-groove,very easy to intall according to installtion drawing.
3. The cold rooms suitable for for temperature -45℃ to over 5 ℃.
4. Cold room panels fabricated camlocks
5. We can design rounded corner inside cold room if needed. Can design cold room to hide floor and ceiling
6. To avoid door frozen when working, all doors have fabricated heaters inside.
7. Doors fabricated rubbles all around to ensure sealing property.
8 Having option fittings: view window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc.
This deep freezer cold room made of stainless steel, have 304 or 314 for your referance. This steel thickness can be 0.6mm,0.8mm,1.0mm etc
2. Coldroom structure: the cold room combined piece by piece according to drawing. It can be customized as your specical request. Each panel fabricated with camlock, with tongue-and - groove joint, very easy to assemble.
3. Panel Thickness :
Panel thickness and working temperature based on ambient temperature 35℃
You you choose thickness according to temp required.
4. Corner type: Generally, square Corner inside is common used for coldroom panels. But we can also design curved corner if needed.It is environmental protection, beautiful and easy to clean.
5. Floor type, This deep freezer cold room is walk in type floor. Moreover, we have recessed type for your choice. Recessed type can backfill concrete on floor panel, to enhance hardness to allow forklift drive inside.

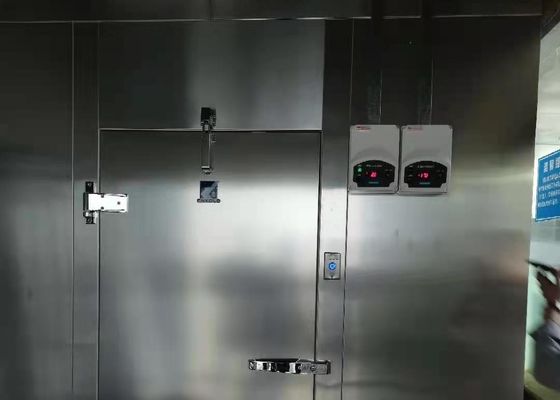

6. Door type: This deep freezer cold room showed above have sliding door and hinged door for your referance. One door for one room or two doors as your choice.
7. Application: We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request.
Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer. You can take below as referance.
|Storage products||Storage temperature approach|
|Vegetables, Fruit storage, Dry food||-5~5degree centigrade|
|Drink, Beer storage, Beverage||2~8 degree centigrade|
|Meat, Fish, Seafood freeze storage||-18~--25 degree centigrade|
|Medicine storage||2~8 degree centigrade|
|Medicine freeze storage||-25 degree centigrade|
|Meat, Fish blast freezer||-35~-40 degree centigrade|
8. Refrigeration system : We supply refrigeration system to match different temperature coldroom.
Have brand air-cooled / water-cooled system, Emerson Copeland air-cooled / water-cooled system, Tecumseh air-cooled / water-cooled system. Also have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc
9. Cooperative partner: The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.
10. Oasis certificate:
- QS Industrial production license
- CE Certificate (Coldroom panel & door)
- B1 (GB/T 8624) Fire inspection report
- B2 (GB/T 8624) Fire inspection report
- SGS test report (single material)
- SGS test report (composite material)
11. Coldroom inquiry:
Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.
|Cold room size (L x W x H)||Food &Temperature||Door type||Cold room material||Refrigeration system type|
|2x2x2.6m||Fruit, +2C degree||Hinged door||0.6mm stainless steel||Air-cooled|
|4x3x2.7m||Frozen meat, -24C degree||Sliding door||0.6mm colorbond||Air-cooled|
|5x5x2.7m||Seafood, -24C degree||Sliding door||0.8mm aluminum||Water-cooled|
|5x6x2.8m||beverage, +2C degree||Hinged door||0.7mm galvanized sheet||Air-cooled|
Should you have any question, feel free to contact.You are all welcome at any time.
