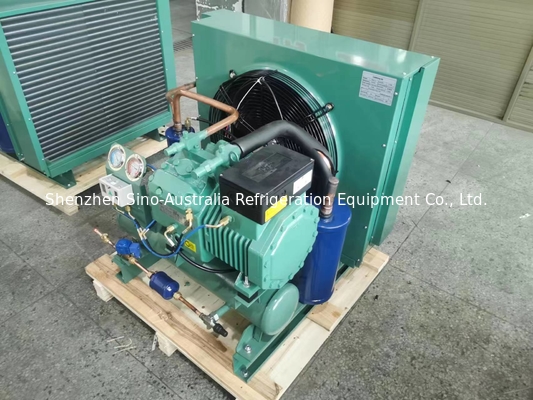

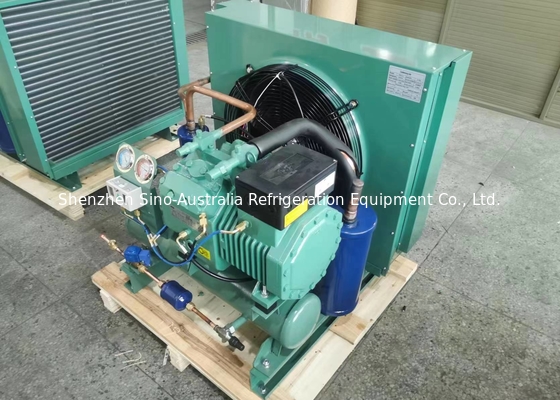

Bitzer Air Cooled Condensing Unit 4NES-20Y R404a Refrigerant 20HP

Bitzer Air Cooled Condensing Unit 4NES-20Y R404a Refrigerant 20HP

  • Bitzer Air Cooled Condensing Unit 4NES-20Y R404a Refrigerant 20HP
  • Bitzer Air Cooled Condensing Unit 4NES-20Y R404a Refrigerant 20HP
  • Bitzer Air Cooled Condensing Unit 4NES-20Y R404a Refrigerant 20HP
  • Bitzer Air Cooled Condensing Unit 4NES-20Y R404a Refrigerant 20HP
Bitzer Air Cooled Condensing Unit 4NES-20Y R404a Refrigerant 20HP
Product Details:
Place of Origin: China
Brand Name: Semi-hermetic
Certification: CE
Model Number: 4NES-20Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: wooden case
Delivery Time: 5-6 work days
Payment Terms: T/T
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Compressor: Bitzer Type: Air-cooled
Temperature: -20℃ To 5℃ Function: Refrigeration And Freezer
Power: 380V/ 50Hz/ 60hz Application: Chiller,Freezer Room
Condition: Brand New Name: Bitzer Air Cooled Condensing Unit
High Light:

380V Air Cooled Condensing Unit

,

Freezer room Air Cooled Refrigeration Unit

,

4NES-20Y Air Cooled Refrigeration Unit

Bitzer Semi Hermetic Air Cooled Condensing Unit​​

The air-cooled condensings unit should not be installed in the space with intense heat and high degree of wetness, they are adopt shell-and-tube water-cooling condensers, the heat transfer tubes are high-efficiency and dense-ribbed copper tubes, the tube boxes at both ends can be disassembled and replaced when necessary, so as to facilitate the connection of the cooling water tubes, the unit can be matched with the chocolate industry, ice cream industry, etc. . Stable performance, high efficiency and energy saving. The octagonal machine series has a very compact design and more stable operation characteristics. The 4J-13.2 compressor, for example, uses an internal oil recovery system that has proven to be efficient and reliable over the years.Equipped with oil separator,high and lower pressure controller,solenoid valve,filterdrier,high and lower pressure gauge,big volume receiver and high efficient condensing units,it is best match unit.



Bitzer Semi Hermetic Air Cooled Condensing Unit​ Features:

1.Construction compact,equipped with protect cover,stability,service life long and good looking.



2.Excellent design for the driving parts and up to best rduced the vibration result.



3. The reasonable suction device in order to compressor cylinder has completed cooling.



4. According to different applications to equipment with high efficent Wpattern Rifle bored coppewr,it can be reduced overall dimension and add transfer-heating result.


Bitzer Semi Hermetic Air Cooled Condensing Unit​ Specifications:


-20℃ evaporating temperature and 5℃ suction temperature and 0℃ K subcooling for the liquid refrigerant.

Temperature range Model (R404) Horse Power Applicable coldroom
High temp 2HES-2Y 2HP Chiller room
High temp 2GES-2Y 2HP Chiller room
High temp 2FES-3Y 3HP Chiller room
High temp 2EES-3Y 3HP Chiller room
High temp 2DES-3Y 3HP Chiller room
High temp 2CES-4Y 4HP Chiller room
High temp 4FES-5Y 5HP Chiller room
High temp 4EES-6Y 6HP Chiller room
High temp 4DES-7Y 7HP Chiller room
High temp 4CES-9Y 9HP Chiller room
High temp 4VES-10Y 10HP Chiller room
High temp 4TES-12Y 12HP Chiller room
High temp 4PES-15Y 15HP Chiller room
High temp 4NES-20Y 20HP Chiller room
High temp 4HE-25Y 25HP Chiller room
High temp 4GE-30Y 30HP Chiller room
High temp 6HE-35Y 35HP Chiller room
Low temp 2FES-2Y 2HP Freezer room
Low temp 2EES-2Y 2HP Freezer room
Low temp 2DES-2Y 2HP Freezer room
Low temp 2CES-3Y 3HP Freezer room
Low temp 4FES-3Y 3HP Freezer room
Low temp 4EES-4Y 4HP Freezer room
Low temp 4DES-5Y 5HP Freezer room
Low temp 4CES-6Y 6HP Freezer room
Low temp 4TES-9Y 9HP Freezer room
Low temp 4PES-12Y 12HP Freezer room
Low temp 4NES-14Y 14HP Freezer room
Low temp 4HE-18Y 18HP Freezer room
Low temp 4GE-23Y 23HP Freezer room
Low temp 6HE-28Y 28HP Freezer room
Low temp 6GE-34Y 34HP Freezer room
Low temp 6FE-44Y 44HP Freezer room


Bitzer Semi Hermetic Air Cooled Condensing Unit Packing: each unit with a separate plywood wooden case.
