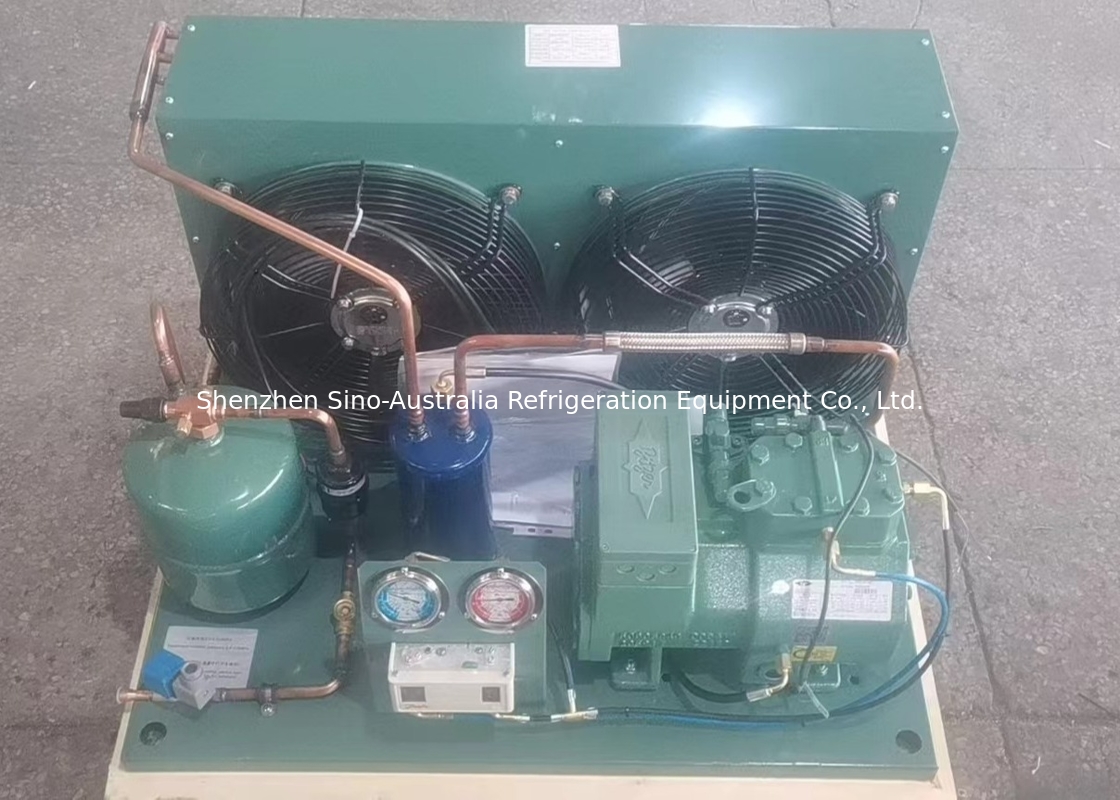

Bitzer Semi Hermetic Air Cooled Condensing Unit 4FES-3Y R404a 3HP Low Temperature

Bitzer Semi Hermetic Air Cooled Condensing Unit 4FES-3Y R404a 3HP Low Temperature

Bitzer Semi Hermetic Air Cooled Condensing Unit 4FES-3Y R404a 3HP Low Temperature
video
Bitzer Semi Hermetic Air Cooled Condensing Unit 4FES-3Y R404a 3HP Low Temperature
Product Details:
Place of Origin: China
Brand Name: Bitzer Semi-hermetic
Certification: CE
Model Number: 4FES-3Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Compressor: Bitzer Type: Air-cooled
Temperature: -15℃ To -30℃ Function: Refrigeration And Freezer
Power: 380V/ 50Hz/ 60hz Application: Freezer Room
Condition: Brand New Name: Bitzer Semi Hermetic Air Cooled Condensing Unit
High Light:

4FES-3Y Air Cooled Condensing Unit

,

3HP Air Cooled Condensing Unit

,

Low Temperature Semi Hermetic Condensing Unit

Bitzer Semi Hermetic Air Cooled Condensing Unit​​


The air-cooled condensings unit should not be installed in the space with intense heat and high degree of wetness, they are  adopt shell-and-tube water-cooling condensers, the heat transfer tubes are high-efficiency and dense-ribbed copper tubes, the tube boxes at both ends can be disassembled and replaced when necessary, so as to facilitate the connection of the cooling water tubes, the unit can be matched with the chocolate industry, ice cream industry, etc. .



Stable performance, high efficiency and energy saving. COMPRESSOR FEATURES: With a durable valve design, high-quality wear-resistant bearing components and easy maintenance, use and speed control, smooth operation, and equipped with efficient, suction cooling motor.



The octagonal machine series has a very compact design and more stable operation characteristics. The 4J-13.2 compressor, for example, uses an internal oil recovery system that has proven to be efficient and reliable over the years.



Bitzer Semi Hermetic Air Cooled Condensing Unit​ Features:


1. Special Valve design, high efficiency and stability, long service life.



2. Refrigeration capacity, energy efficiency ratio (COP) higher than other brands of compressors 20%.



3. Good low temperature performance, for R22 refrigerant, single-stage compressor evaporation temperature up to-40 °c



4. Used in a variety of refrigerants (R12, R22, R502, R134a, R404a, R507) . Compliance with environmental requirements.



5. Using split coil to start, reduce the starting current, reduce the impact on the power grid, the motor has special design technical parameters and newly developed stator and rotor components, increased efficiency and power factor.



6. A wide range of applications: Buzel compressor is divided into high-temperature type and low-temperature type, high-temperature type evaporation temperature up to 12.5 °C, low-temperature type single-stage compressor evaporation temperature up to (R22)-40 °C, double-stage compressor evaporation temperature up to (R22)-50 °C. If R404A or R507 is used, the evaporation temperature will be lower, reaching-70 °C.



7. Energy Regulation Wide: 4 cylinder compressor energy regulation range 50% , 100% , 6 cylinder compressor energy regulation range 33% , 66% , 100% . When the refrigeration system load changes when effective regulation to reduce operating costs.



8.Built-in motor overload protector (INT69VS) , effective protection of motor due to increased refrigeration system load or insufficient refrigerant return refrigeration system, resulting in motor overload, overheating.



9. In order to prevent the starting current is too large, you can also choose to uninstall the starting device.


Bitzer Semi Hermetic Air Cooled Condensing Unit​ Specifications:


-20℃ evaporating temperature and 5℃  suction temperature and 0℃ K subcooling for the liquid refrigerant.

Temperature range  Model (R404) Horse Power Applicable coldroom
High temp 2HES-2Y 2HP Chiller room
High temp 2GES-2Y 2HP Chiller room
High temp 2FES-3Y 3HP Chiller room
High temp 2EES-3Y 3HP Chiller room
High temp 2DES-3Y 3HP Chiller room
High temp 2CES-4Y 4HP Chiller room
High temp 4FES-5Y 5HP Chiller room
High temp 4EES-6Y 6HP Chiller room
High temp 4DES-7Y 7HP Chiller room
High temp 4CES-9Y 9HP Chiller room
High temp 4VES-10Y 10HP Chiller room
High temp 4TES-12Y 12HP Chiller room
High temp 4PES-15Y 15HP Chiller room
High temp 4NES-20Y 20HP Chiller room
High temp 4HE-25Y 25HP Chiller room
High temp 4GE-30Y 30HP Chiller room
High temp 6HE-35Y 35HP Chiller room
Low temp 2FES-2Y 2HP Freezer room
Low temp 2EES-2Y 2HP Freezer room
Low temp 2DES-2Y 2HP Freezer room
Low temp 2CES-3Y 3HP Freezer room
Low temp 4FES-3Y 3HP Freezer room
Low temp 4EES-4Y 4HP Freezer room
Low temp 4DES-5Y 5HP Freezer room
Low temp 4CES-6Y 6HP Freezer room
Low temp 4TES-9Y 9HP Freezer room
Low temp 4PES-12Y 12HP Freezer room
Low temp 4NES-14Y 14HP Freezer room
Low temp 4HE-18Y 18HP Freezer room
Low temp 4GE-23Y 23HP Freezer room
Low temp 6HE-28Y 28HP Freezer room
Low temp 6GE-34Y 34HP Freezer room
Low temp 6FE-44Y 44HP Freezer room


Bitzer Semi Hermetic Air Cooled Condensing Unit Packing: each unit with a separate plywood wooden case.
Bitzer Semi Hermetic Air Cooled Condensing Unit 4FES-3Y R404a 3HP Low Temperature 0
