HFC R404a Freezer Room Refrigeration Unit ZSI09KQE 3HP Low Temp -23℃

HFC R404a Freezer Room Refrigeration Unit ZSI09KQE 3HP Low Temp -23℃

HFC R404a Freezer Room Refrigeration Unit ZSI09KQE 3HP Low Temp -23℃
video
HFC R404a Freezer Room Refrigeration Unit ZSI09KQE 3HP Low Temp -23℃
Product Details:
Place of Origin: China
Brand Name: Emerson Copeland
Certification: CE / CCC
Model Number: ZSI09KQE 3HP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: wooden case
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Compressor: Copeland Scroll ZB Cooling Type: Air-cooled
Temperature: Low Temperature Function: Refrigeration And Freeze
Power: 380V/3PH/50HZ, 460V/60Hz Condition: Brand New
Name: Freezer Room Refrigeration Unit Refrigerant: R404a
High Light:

HFC Freezer Room Refrigeration Unit

,

R404a Freezer Room Refrigeration Unit

,

3HP Copeland Scroll Refrigeration Unit

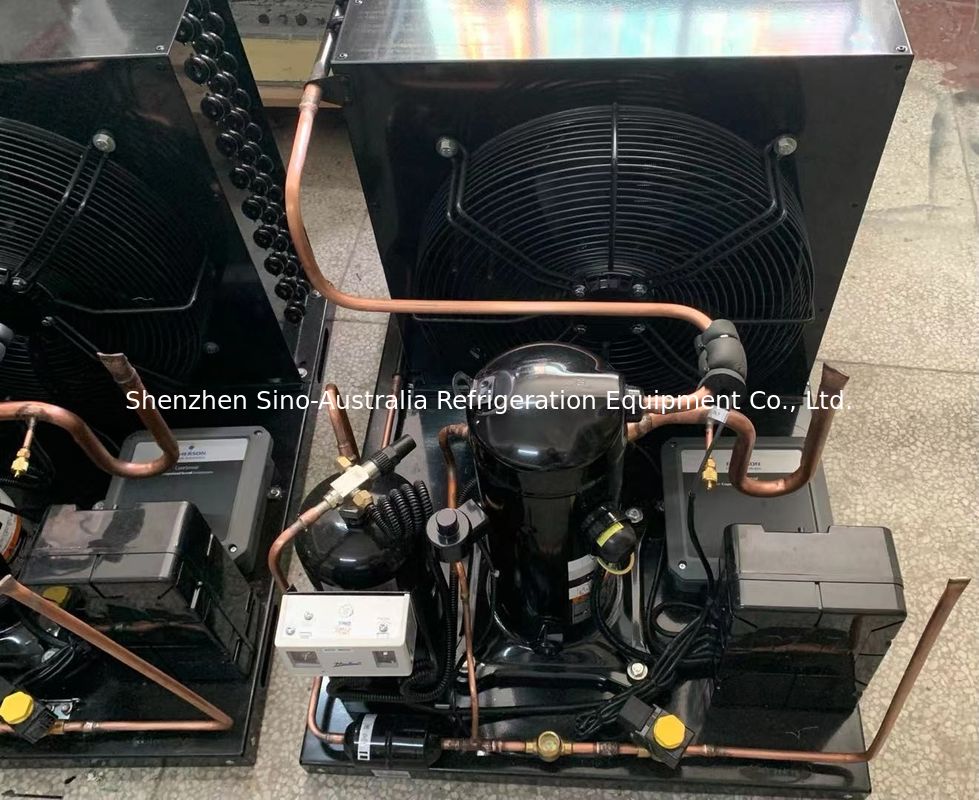

ZSI09KQE 3HP Low Temp -23℃ Freezer Room Refrigeration Unit Emerson Copeland Scroll Refrigeration Unit
Compressor: Copeland scroll ZSI09KQE

Cooling Capacity:3HP

Refrigerant:R404a

Voltage:380V/3PH/50HZ,460V/60Hz

Temp range : -10℃ to -40℃, can be used for 15-20 m³  cold room


Description


The low temperature  small condensing units used for mini-freezers, supermarket freezers, medical freezers etc, use UAS Copeland compressors with high quality accessories to combine a refrigeration system.


Features


* Low temp condensing unit cooling capacity : 2-7 HP
* Low noise, steady
* Superior efficiency
* Low sound levels
* Availability for HFC and HCFC refrigerants
* All voltage offering
* Oil sight glass & Rotalock features


Specifications


Condensing unitDisplacementMax.Oper. CurrentFan QtyAir flowOverall DimensionTube ConnectionGross Weight
m3/hANo.m3/hL (mm)W (mm)H (mm)SL incFL incKg
ZSI09KQE8.042131505707004403/4"3/8"60
ZSI11KQE9.953155807357005403/4"3/8"76
ZSI15KQE14.373155807357005407/8"3/8"79
ZSI18KQE17.066155807357005407/8"1/2"84
ZSI21KQE20.91421116011908006501 1/8"5/8"176


The theoretical displacement when the compressor revolving speed is 2900rpm.
The maximum of the allowed lowest voltage (50Hz)
