| Place of Origin: | China |
| Brand Name: | Emerson Copeland |
| Certification: | CE / CCC |
| Model Number: | 12HP |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiate |
| Packaging Details: | wooden case |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
| Compressor: | Copeland ZB | Cooling Type: | Air-cooled |
|---|---|---|---|
| Temperature: | Medium Temperature | Function: | Refrigeration And Cooling |
| Power: | 380V/3PH/50HZ, 460V/60Hz | Condition: | Brand New |
| Name: | Cold Room Refrigeration And Cooling | Refrigerant: | R404a |
| High Light: | CCC Air Cooled Refrigeration Unit,12HP Air Cooled Refrigeration Unit,180m3 Cool Room Refrigeration Unit |
||

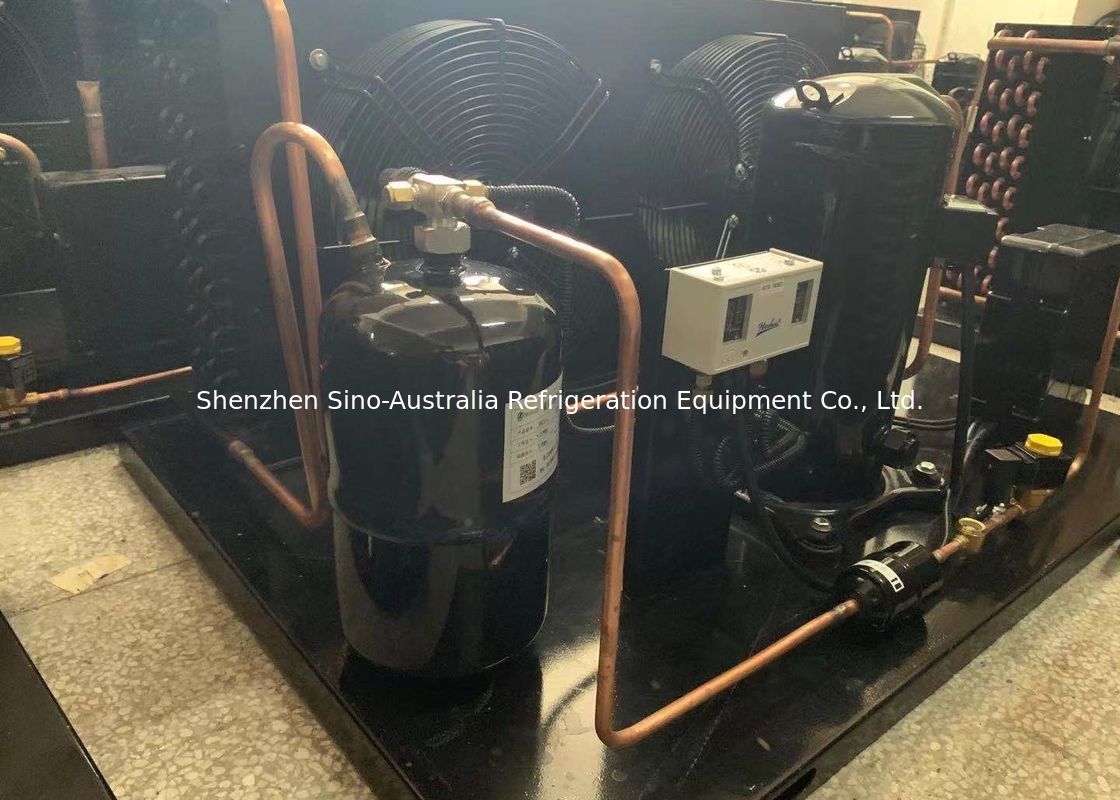

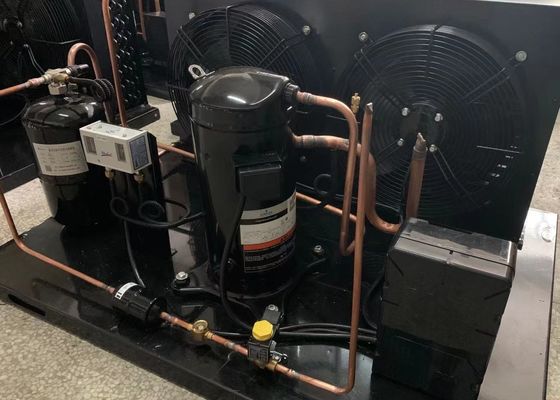

ZB88KQE 12HP 5℃ To -20℃ Cool Room Refrigeration Unit Emerson Copeland Scroll Condensing Unit
Compressor: Copeland scroll ZB88KQE
Capacity:12HP
Refrigerant:R404a
Voltage:380V/3PH/50HZ,460V/60Hz
Temp range : 5℃ to -20℃, can be used for 110-180 m³ cold room
Description
Features
Specifications
| Condensing unit | Displacement | Max.Oper. Current | Fan Qty | Air flow | Overall Dimension | Tube Connection | Gross Weight | |||
| m3/h | A | No. | m3/h | L (mm) | W (mm) | H (mm) | SL inc | FL inc | Kg | |
| ZB15KQE | 5.9 | 6.48 | 1 | 4235 | 700 | 675 | 505 | 3/4" | 3/8" | 65 |
| ZB19KQE | 6.8 | 6.58 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 70 |
| ZB21KQE | 8.6 | 8358 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 72 |
| ZB26KQE | 9.9 | 10.58 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 76 |
| ZB29KQE | 11.4 | 11.85 | 1 | 7620 | 735 | 700 | 800 | 7/8" | 3/8" | 90 |
| ZB38KQE | 14.5 | 13.35 | 1 | 7620 | 735 | 700 | 800 | 7/8" | 3/8" | 98 |
| ZB45KQE | 17.2 | 16.95 | 1 | 7620 | 735 | 700 | 800 | 7/8" | 1/2" | 100 |
| ZB48KQE | 18.8 | 18.16 | 2 | 11160 | 1190 | 800 | 800 | 7/8" | 1/2" | 145 |
| ZB58KQE | 22.1 | 24.16 | 2 | 11160 | 1190 | 800 | 700 | 1 1/8" | 5/8" | 182 |
| ZB66KQE | 25.7 | 25.36 | 2 | 11160 | 1190 | 800 | 700 | 1 3/8" | 5/8" | 201 |
| ZB76KQE | 28.8 | 28.60 | 2 | 15240 | 1400 | 800 | 860 | 1 3/8" | 5/8" | 217 |
| ZB95KQE | 36.4 | 32.70 | 2 | 22320 | 1620 | 800 | 1250 | 1 3/8" | 5/8" | 237 |
| ZB114KQE | 43.4 | 40.32 | 2 | 22320 | 1190 | 800 | 1250 | 1 3/8" | 5/8" | 280 |
| ZSI09KQE | 8.04 | 2 | 1 | 3150 | 570 | 700 | 440 | 3/4" | 3/8" | 60 |
| ZSI11KQE | 9.95 | 3 | 1 | 5580 | 735 | 700 | 540 | 3/4" | 3/8" | 76 |
| ZSI15KQE | 14.37 | 3 | 1 | 5580 | 735 | 700 | 540 | 7/8" | 3/8" | 79 |
| ZSI18KQE | 17.06 | 6 | 1 | 5580 | 735 | 700 | 540 | 7/8" | 1/2" | 84 |
| ZSI21KQE | 20.9 | 14 | 2 | 11160 | 1190 | 800 | 650 | 1 1/8" | 5/8" | 176 |
The theoretical displacement when the compressor revolving speed is 2900rpm.
The maximum of the allowed lowest voltage (50Hz)
