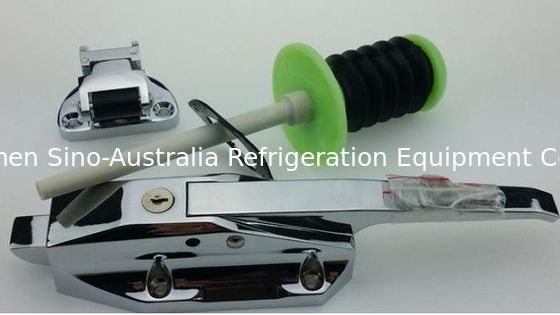

Stainless Steel Die Cast Zinc Safety Latches Inside Release Handle For Freezer Room

Safety Latches & Inside Release Handles For Cold Room, Cold Storage, Coolroom, Chiller And Freezer Room

Specifications and Description

We can also supply other coldroom door parts as follows:

Reversible Reach Hinge

Reversible Plane Hinge (with spring)

Adjustable Door Hinge

Used for coolroom, freezer room, cold storage doors

Stainless Steel, Zinc materials ect.

CM-1220-H
● Material:High pressure die-cast zinc
●support the farthest weight:85kg

CM-1220-HS
● Material:Precision stainless steel
● support the farthest weight:95kg

● Special designed plane door hinge,safe and durable
● Beautiful figure, the door frame and coldroom wall are in the same plane．
● With CM or YL series series of door closer and door handle, can close door quietly,and prevent the cold air leaking (see below door photos)

Swing / Hinged Door Handles

CM-1210-H

Material: high pressure die-cast zinc

CM-1210-HS

Material: precision stainless steel

• Inside release handle is suitable for 80-100mm thickness door frame. Special sizes are on your option.
• With speical designed telescopic lock
• Can be installed padlock in the front of the latch.

Heavy-Duty Hydraulic Door Close

CM-1230-HSL
(Material:Stainless steel body,stainless case．)

●This kind of door closer is fit for plane door.It can close the door tightly in 3-4 seconds . It can prevent the cold air leaking,and close door quietly.

●The structure is hydraulic,the cylinder is filled with cold-resistant hydraulic oil.You can open door freely eventhough outdoor temperature is below -20℃.

●CM-1230-HS opening strength : 6kgs, closing strength :3kgs.

●CM-1230-HSL opening strength : 8kgs, closing strength :5.5kgs.

●The case and bracket's material are all 304# stainless steel, CM-1230-HS's case is made of plastic.

●Remark: with 7 pcs self-tapping screws attached.

SAFTETY LATCH

CM-1179-L CAM-LIFT SAFETY LATCH

Material: high pressure die-cast zinc, with a set of stainless steel screw, adjustable height from 63.00mm--92.00mm

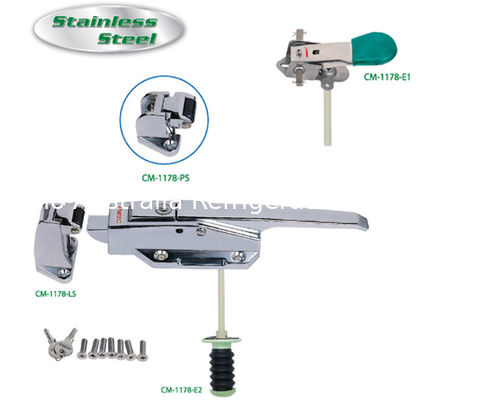

CM-1178-L PLANE SAFETY LATCH

Material: high pressure die-cast zinc, with a set of stainless steel screw, adjustable height from 31.00mm--38.00mm

Use with CM-1178-E3 inside release handle, CM-1178-E1 or CM-1178-E2 are on your option

CM-1179-L special designed latch series with extensile tongue in the front of latch body can shut automatically after cold room door is open to an angle about 45° if equipped with two hinges ( one hinge with spring, the other one without spring, like CM-1238 series)

The hole in the body center is use for padlock.

Ordering Guide

Should you have any question, feel free to contact.
