Place of Origin: | China |
Brand Name: | Coldmach |
Certification: | CE / CCC |
Model Number: | 2HP-7HP |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiate |
Packaging Details: | wooden case |
Delivery Time: | 4-6 weeks |
Payment Terms: | T/T |
Supply Ability: | 500 sets per month |
Compressor: | Emerson Copeland ZSI Series | Cooling Type: | Air-cooled / Water-cooled |
---|---|---|---|
Temperature: | Low /Medium Temperature | Function: | Refrigeration And Air-conditioning |
Power: | 220/380V 50HZ | Condition: | Brand New |
Name: | Emerson Copeland Box Condensing Unit | Refrigerant: | R22/R404a |
High Light: | Boxing Type 7HP Cold Room Condenser,7HP R404a Air Cooled Condensing Unit,Emerson R404a 7HP Cold Room Condenser |

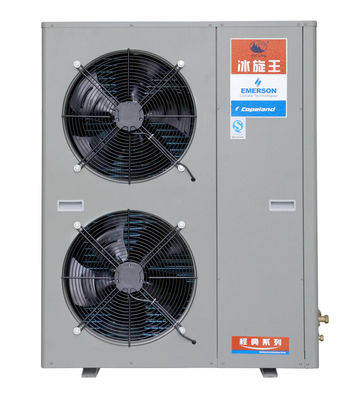

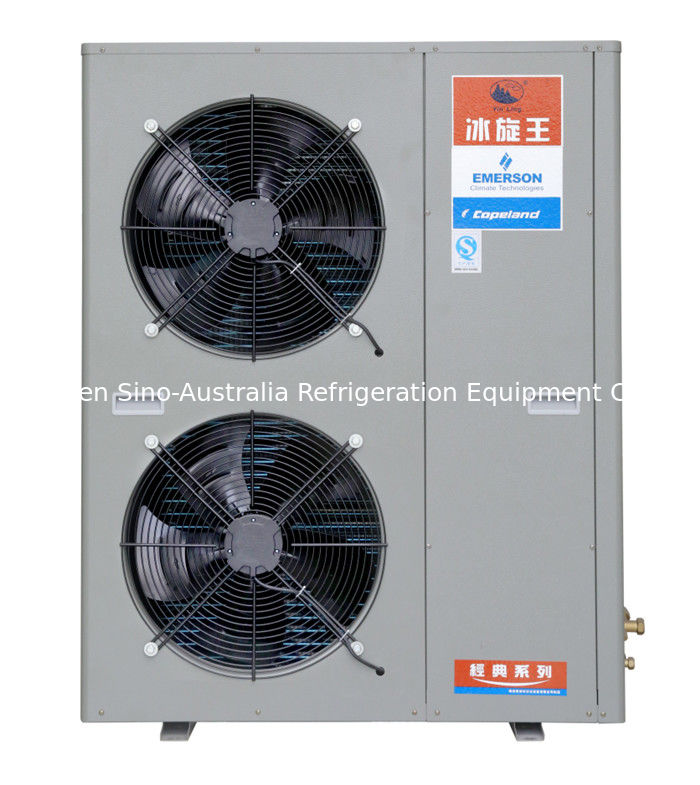

5HP Boxing Type Refrigeration Unit,Air-Cooled Condensing Unit For Low Temperature Cold Room, Freezer Room, Cold Storage
These box condensing units can be used for small cold room, suppermarket freezer, medical freezer and other coolroom.
Features
1. Using Copeland brand compressors and brand axial fans, to ensure the unit stable and low noise.
2. High efficiency and energy-saving: The radiator is made of inner screw copper tube and corrugated aluminum foil, and the heat transfer efficiency is improved by 20%.
3. The intelligent electronic control provides the best control and protection for the refrigeration system, including the compressor exhaust temperature protection, phase sequence protection, high-low pressure protection and other functions to ensure the stable operation of the system.
4. Adaptable: Equipped with electronic expansion valve, even in bad working conditions, can first ensure the safety of the system, stable operation, and supply on demand, is the system security and stability.
5. Complete range: from 2HP to 7HP, R22 and R404a,R407c
6. Integrated Design, easy to install
Specification
Application | Model | Horse Power | Power | Refrigerant | Recommended temp |
Compressor | ||
220V | 380V | R22 | R404a | |||||
Low temp | LKA0200PDZSI06 | 2 | √ | √ | -23 | Emerson Copeland ZSI series | ||
LKA0200TDZSI06 | 2 | √ | √ | -23 | ||||
LKA0250PDZSI08 | 2.5 | √ | √ | -23 | ||||
LKA0300TDZSI09 | 3 | √ | √ | -23 | ||||
LKA0350PDZSI11 | 3.5 | √ | √ | -23 | ||||
LKA0400PDZSI14 | 4 | √ | √ | -23 | ||||
LKA0400TDZSI14 | 4 | √ | √ | -23 | ||||
LKA0500TDZSI15 | 5 | √ | √ | -23 | ||||
LKA0600TDZSI18 | 6 | √ | √ | -23 | ||||
LKA0700TDZSI21 | 7 | √ | √ | -23 |
Should you have any question, feel free to contact.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
