Place of Origin: | China |
Brand Name: | Copeland semi-hermetic |
Certification: | CE / CCC |
Model Number: | 8-15HP |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiate |
Packaging Details: | wooden case |
Delivery Time: | 4-6 weeks |
Payment Terms: | T/T |
Supply Ability: | 500 sets per month |
Compressor: | Copeland Scroll ZB | Cooling Type: | Air-cooled |
---|---|---|---|
Temperature: | Low Temperature | Function: | Refrigeration And Air-conditioning |
Power: | 380V/3PH/50HZ | Condition: | Brand New |
Name: | Copeland Box Condensing Unit | Refrigerant: | R22/R404a |
High Light: | 3PH 50HZ Condensing Unit For Cold Room,15HP Copeland Air Cooled Condensing Unit,8HP Copeland Air Cooled Condensing Unit |

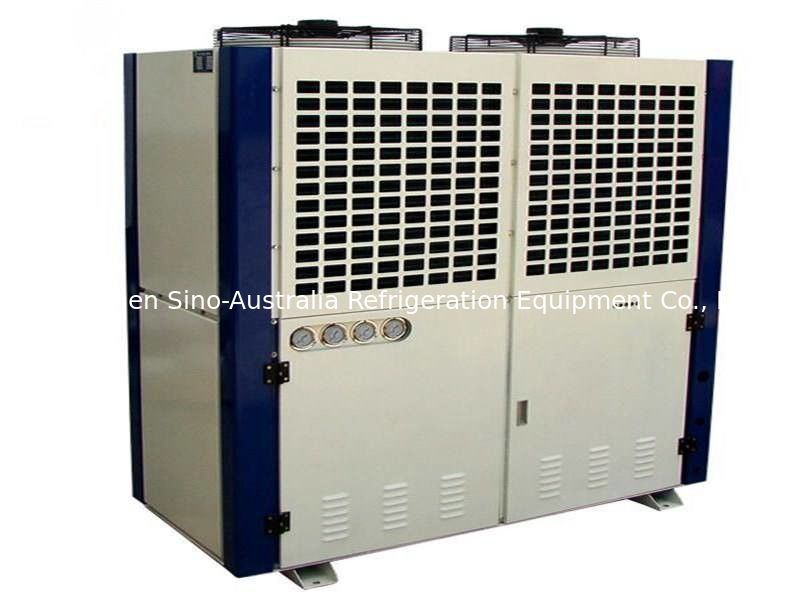

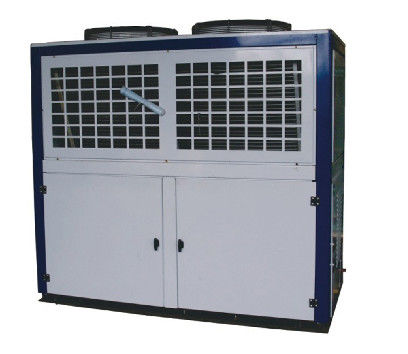

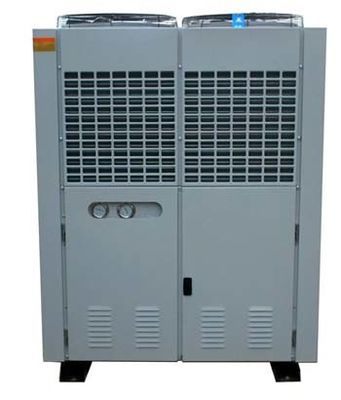

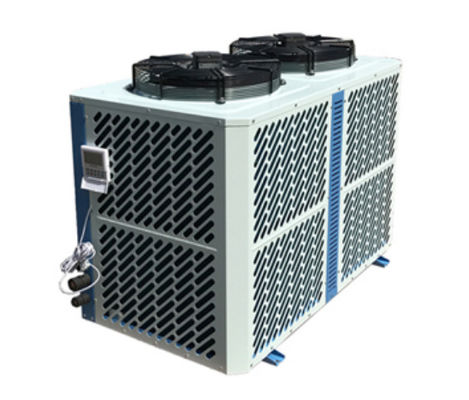

Copeland Box Type Air-Cooled Condensing Unit,For Freezer Room -15~5℃, Cold Storage
Compressor:Copeland scroll ZB series
Capacity:8-15HP
Refrigerant:R22/R404a
Voltage:380V/3PH/50HZ
Low noise, Energy saving, Easy installation,Copeland scroll compressor
Description
This series products with copeland scroll hermetic compressor and control box,applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5℃~ 15℃, -15℃~5℃ and -15~-20℃. They can be widely used in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold storage is needed.
Features
1. Electric components :main control board, cold room temp control board and operation board.
2. With multi protections :phase protection, phase lack, over current, too constant start of compressor, discharge temp and system high/low temp.
3. With fan speed regulator, to adjust condensing fan according to condensing temp.
4. With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.
5. With system alarm function. When fault effects, the system will make alarm beep sound to remind user.
6. The operation board can show temp. setting, defrosting control, operation system data checking and cold room temp. alarm functions. It can be installed apart from condensing units for remote control.
Model |
8HP |
9HP |
10HP |
13HP |
15HP |
||
Room temperature |
-15℃ ~5 ℃ |
||||||
Power supply |
380V/3Ph/50 HZ |
||||||
Compressor model |
ZB58KQE |
ZB66KQE |
ZB76KQE |
ZB95KQE |
ZB114KQE |
||
Condenser |
Fan Qty |
1 |
1 |
1 |
2 |
2 |
|
Fan Voltage(V) |
220 |
220 |
220 |
220 |
220 |
||
Fan Input(W) |
550 |
550 |
550 |
460×2 |
460×2 |
||
Capacity. & input |
Te -5℃ |
Cap(W) |
15300 |
17100 |
20400 |
25000 |
29700 |
|
Input (W) |
6360 |
7090 |
8290 |
10700 |
12650 |
|
Te -10℃ |
Cap(W) |
12400 |
14000 |
16600 |
20300 |
24000 |
|
|
Input (W) |
6320 |
7050 |
8220 |
10600 |
12650 |
|
Te-15℃ |
Cap(W) |
9480 |
11300 |
13350 |
16100 |
18900 |
|
|
Input (W) |
6320 |
7020 |
8150 |
10600 |
12650 |
|
Te-20℃ |
Cap(W) |
7520 |
9000 |
10550 |
12200 |
14350 |
|
|
Input (W) |
6360 |
6980 |
8100 |
10600 |
12650 |
|
pipe |
Gas dia. (mm) |
φ28 |
φ28 |
φ28 |
φ28 |
φ28 |
|
Liquid dia. (mm) |
φ16 |
φ16 |
φ16 |
φ16 |
φ16 |
||
Overall sizes |
L (mm) |
967 |
967 |
967 |
1354 |
1354 |
|
W (mm) |
825 |
825 |
825 |
825 |
825 |
||
H (mm) |
1035 |
1035 |
1035 |
1025 |
1025 |
Should you have any question, feel free to contact.
Contact Person: Jason
Tel: 86-13480948557
Fax: 86-755-82209876
