| Place of Origin: | China |
| Brand Name: | Hispania |
| Certification: | CE / CCC |
| Model Number: | HEA series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per weeks |
| Relative Humidity: | 85% | Refrigerant: | R404a |
|---|---|---|---|
| Material: | Aluminum | Temp: | High,medium And Low Temp Range |
| Condition: | New | Power: | 220V/50Hz,380V/50Hz/60Hz |
| Application: | Cold Storage, Coolroom | Name: | Coldroom Evaporator |
| High Light: | SS304 Industrial Refrigeration Evaporators,SS304 cool room evaporators,Anti Corrosion cool room evaporators |
||

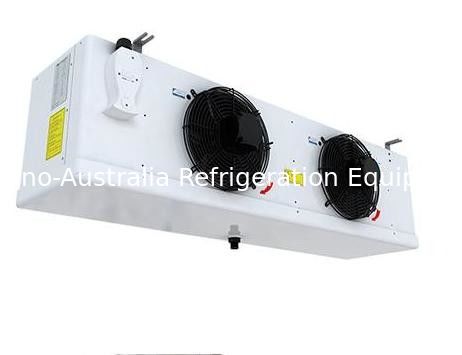

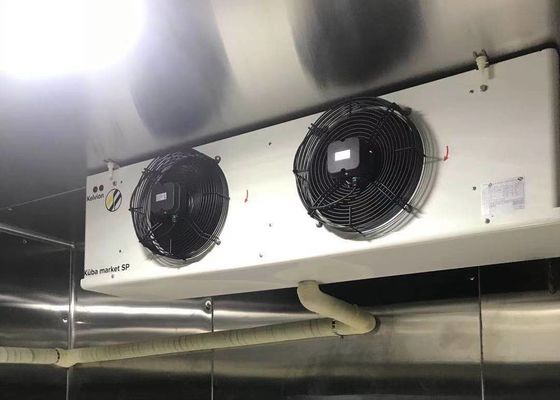

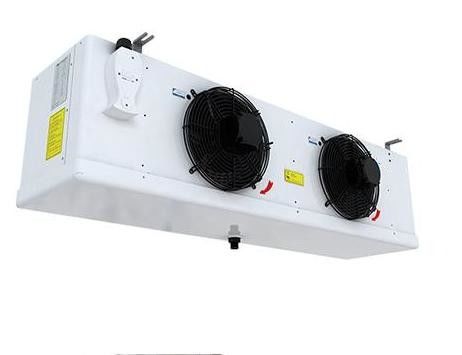

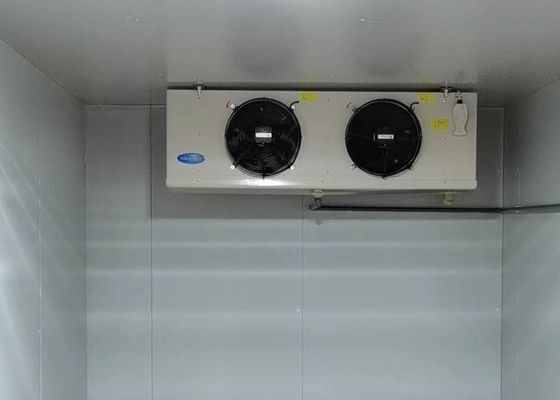

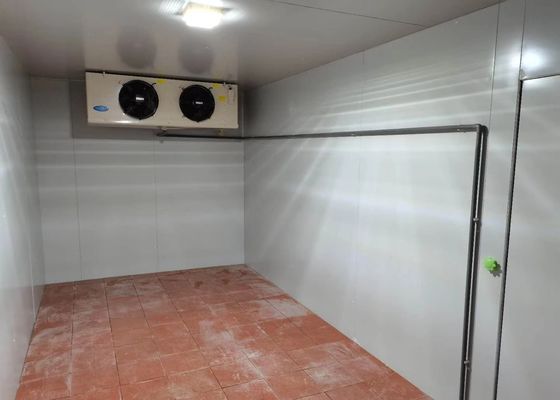

White Power Coated Aluminium Ceiling Mounted Cold Room Evaporators Used For Coldroom Storage,Freezer Room
Features:
1. High efficient coils - the high efficient coils are made of high quality copper tubes and special profile aluminum fins. Heat exchangers are supplied clean and tested under a pressure of 30 bars.
2. Inner grooved copper tubes - increasing heat efficiency exchange by 10-12%.
3. SS304 and SS316 tubes of Ø15mm are available.
4.Casing - White power coated aluminium or SS304, highly anti-corrosion strength, impact resistance, and does not produce polluting debris.
5. Fan motors - High quality aixal fan motors with high safety standard fitted well to the unit casing with an anti-vibration system. Direction of suction or discharge is available.
6. Defrost heating - Stainless steel electric heater elements covered by the aluminium tubes, located in the finned pack and in the drain pan, to avoid steam problems and make easy replacement.
7. Electrical parts and wiring - are connected to an earth terminal, carried out in junction box with access holes equipped with water-proof cable grands. All materials are selected carefully for long-term reliability.
8. Expansion valve and solenoid valve are available.
9. Capacities with other fans requested can be supplied separately.
Specifications:
| High Temp Series - Fin spacing 4mm, with heaters Rt ≥0℃ | ||||||
| Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
| te= -8℃ | te= -25℃ | Inlet | Outlet | |||
| DT1=8K | DT1=7K | |||||
| HEA-2501-09-4D | 1.8 L | 1.3 | 0.94 | 9 | 12 | 16 |
| HEA-2502-17-4D | 3.2 L | 2.68 | 2.04 | 17 | 12 | 19 |
| HEA-2503-26-4D | 4.7 L | 4.05 | 3.13 | 26 | 12 | 22 |
| HEA-2504-35-4D | 6.1 L | 5.47 | 4.38 | 35 | 12 | 22 |
| HEA-2506-52-4D | 8.7 L | 8.16 | 6.53 | 52 | 15 | 28 |
| HEA-3001-12-4D | 2.4 L | 2.14 | 1.78 | 12 | 12 | 19 |
| HEA-3002-23-4D | 4.3 L | 4.31 | 3.54 | 23 | 12 | 22 |
| HEA-3003-35-4D | 6.2 L | 6.47 | 5.22 | 35 | 12 | 22 |
| HEA-3004-46-4D | 8.2 L | 8.50 | 6.75 | 46 | 15 | 28 |
| HEA-3006-69-4D | 11.6 L | 12.39 | 9.54 | 69 | 15 | 28 |
| HEA-4001-20-4D | 3.5L | 4.7 | 3.84 | 20 | 12 | 19 |
| HEA-4002-40-4D | 7.2L | 9.26 | 7.25 | 40 | 12 | 22 |
| HEA-4003-54 4D | 9.6L | 12.98 | 9.98 | 54 | 15 | 28 |
| HEA-4004-81-4D | 14.4L | 12.27 | 12.85 | 81 | 15 | 35 |
| HEA-4501-31-4D | 5.5 L | 6.61 | 5.36 | 31 | 12 | 22 |
| HEA-4502-61-4D | 10.5 L | 14.84 | 11.47 | 61 | 15 | 28 |
| HEA-4503-92-4D | 15.5 L | 21.18 | 16.04 | 92 | 15 | 35 |
| HEA 5001 39 4D | 7.1L | 9.6 | 7.64 | 39 | 15 | 28 |
| HEA 5001 58 4D | 10.6L | 11.88 | 9.62 | 58 | 15 | 28 |
| HEA 5002 81 4D | 14L | 18.75 | 14.46 | 81 | 22 | 35 |
| HEA 5002 121 4D | 21L | 23.56 | 18.13 | 121 | 22 | 35 |
| HEA 5003 122 4D | 21.1L | 28.77 | 22.77 | 122 | 28 | 42 |
| HEA 5003 183 4D | 31.5L | 35.23 | 27.27 | 183 | 28 | 42 |
| Medium Temp Series - Fin spacing 6mm, with heaters Rt ≥-18℃ | ||||||
| Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
| te= -8℃ | te= -25℃ | Inlet | Outlet | |||
| DT1=8K | DT1=7K | |||||
| HEA-2501-06-6D | 1.8 L | 1.14 | 0.81 | 6 | 12 | 16 |
| HEA-2502-11-6D | 3.2 L | 2.35 | 1.78 | 11 | 12 | 19 |
| HEA-2503-17-6D | 4.7 L | 3.6 | 2.89 | 17 | 12 | 22 |
| HEA-2504-23-6D | 6.1 L | 4.68 | 3.67 | 23 | 12 | 22 |
| HEA-2506-35-6D | 8.7 L | 7.17 | 5.79 | 35 | 15 | 28 |
| HEA-3001-08-6D | 2.4 L | 1.89 | 1.58 | 8 | 12 | 19 |
| HEA-3002-15-6D | 4.3 L | 3.76 | 3.1 | 15 | 12 | 22 |
| HEA-3003-23-6D | 6.2 L | 5.59 | 4.55 | 23 | 12 | 22 |
| HEA-3004-31-6D | 8.2 L | 7.4 | 5.93 | 31 | 15 | 28 |
| HEA-3006-46-6D | 11.6 L | 10.88 | 8.31 | 46 | 15 | 28 |
| HEA-4001-13-6D | 3.5L | 4.01 | 3.29 | 13 | 12 | 19 |
| HEA-4002-27-6D | 7.2L | 7.92 | 6.35 | 27 | 12 | 22 |
| HEA-4003-36-6D | 9.6L | 11.26 | 8.84 | 36 | 15 | 28 |
| HEA-4004-54-6D | 14.4L | 15.15 | 11.6 | 54 | 15 | 35 |
| HEA-4501-20-6D | 5.5 L | 5.41 | 4.42 | 20 | 12 | 22 |
| HEA-4502-41-6D | 10.5 L | 12.26 | 9.67 | 41 | 15 | 28 |
| HEA-4503-61-6D | 15.5 L | 17.73 | 13.48 | 61 | 15 | 35 |
| HEA 5001 26 6D | 7.1L | 8.16 | 6.59 | 26 | 15 | 28 |
| HEA 5001 39 6D | 10.6L | 10.15 | 8.22 | 39 | 15 | 28 |
| HEA 5002 54 6D | 14L | 16.02 | 12.87 | 54 | 22 | 35 |
| HEA 5002 81 6D | 21L | 20.77 | 16.26 | 81 | 22 | 35 |
| HEA 5003 82 6D | 21.1L | 24.66 | 19.77 | 82 | 28 | 42 |
| HEA 5003 122 6D | 31.5L | 30.82 | 24.38 | 122 | 28 | 42 |
| Low Temp Series - Fin spacing 9mm, with heaters Rt ≥-25℃ | ||||||
| Model | Tube volume (dm3) | Capacity (KW) | Surface (m2) | Connection (Ømm) | ||
| te= -8℃ | te= -25℃ | Inlet | Outlet | |||
| DT1=8K | DT1=7K | |||||
| HEA-2501-04-9D | 1.8 L | 0.98 | 0.69 | 4 | 12 | 16 |
| HEA-2502-08-9D | 3.2 L | 2.07 | 1.66 | 8 | 12 | 19 |
| HEA-2503-12-9D | 4.7 L | 3.12 | 2.51 | 12 | 12 | 22 |
| HEA-2504-16-9D | 6.1 L | 4.08 | 3.21 | 16 | 12 | 22 |
| HEA-2506-24-9D | 8.7 L | 6.19 | 5.04 | 24 | 15 | 28 |
| HEA-3001-06-9D | 2.4 L | 1.59 | 1.38 | 6 | 12 | 19 |
| HEA-3002-10-9D | 4.3 L | 3.17 | 2.68 | 10 | 12 | 22 |
| HEA-3003-16-9D | 6.2 L | 4.79 | 3.92 | 16 | 12 | 22 |
| HEA-3004-21-9D | 8.2 L | 6.32 | 5.13 | 21 | 15 | 28 |
| HEA-3006-31-9D | 11.6 L | 7.4 | 5.93 | 31 | 15 | 28 |
| HEA-4001-09-9D | 3.5L | 3.43 | 2.83 | 9 | 12 | 19 |
| HEA-4002-18-9D | 7.2L | 6.76 | 5.47 | 18 | 12 | 22 |
| HEA-4003-24-9D | 9.6L | 9.62 | 7.54 | 24 | 15 | 28 |
| HEA-4004-36-9D | 14.4L | 13.11 | 10.17 | 36 | 15 | 35 |
| HEA-4501-14-9D | 5.5 L | 4.79 | 3.99 | 14 | 12 | 22 |
| HEA-4502-28-9D | 10.5 L | 10.92 | 8.7 | 28 | 15 | 28 |
| HEA-4503-41-9D | 15.5 L | 15.85 | 12.19 | 41 | 15 | 35 |
| HEA 5001 17 9D | 7.1L | 6.92 | 5.64 | 17 | 15 | 28 |
| HEA 5001 26 9D | 10.6L | 8.93 | 7.24 | 26 | 15 | 28 |
| HEA 5002 36 9D | 14L | 13.85 | 10.99 | 36 | 22 | 35 |
| HEA 5002 54 9D | 21L | 17.73 | 14.24 | 54 | 22 | 35 |
| HEA 5003 54 9D | 21.1L | 20.88 | 16.52 | 54 | 28 | 42 |
| HEA 5003 82 9D | 31.5L | 26.69 | 21.37 | 82 | 28 | 42 |
Marks:
* Optional model without heater available.
* Evaporator with Glycol gas available.
* Golden fins with highly anti-corrosion strength available.
* Double trays available.
* Silica gel heater for fan motor with Long-Nozzle available.
