Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage

Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage

  • Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage
  • Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage
  • Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage
  • Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage
Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage
Product Details:
Place of Origin: China
Brand Name: Oasis brand
Certification: GB/T 19001-2006/ISO9001:2015
Model Number: High Temp/ Low Temp
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: carton
Delivery Time: 5-6 weeks
Payment Terms: T/T
Supply Ability: 100 set per week
Contact Now
Detailed Product Description
Material: Colorbond,stainless Steel, Material Thickness: 0.5mm,0.6mm,0.8mm,1.0mm,1.2mm,1.5mm Etc
Panel Thickness: 50mm,75mm,100mm,150mm,200mm Floor Type: Recessed Type Or Walk-in Type
Dimension: Customized Function: Refrigeration And Insulation
Temperature: High, Medium And Low Temp. Power: 110/220/380V
Density: 42KG/M3 Cooling Type: Air-cooled Or Water-cooled
Condition: Oasis Brand New Warranty: 1 Year After Shipping
High Light:

White Colorbond Walk In Chiller Rooms

,

380V Cold Room For Fish Storage

,

200mm Colorbond Walk In Chiller Rooms

Walk In Cold Storage Room, Combined Commercial Cold Rooms, White Colorbond / 304 Stainless Steel Customized Coolroom



- Oasis  kit set cold room refrigeration solutions are distributed exclusively all over the world.



- These premium modular, polyurethane insulation cool rooms provide a simple, quick and flexible cold and freezer refrigeration solution, and can be supplied to suit any size requirement.



- These coldroom and systems are suitable for all kinds of industry, like hotel, food processing,cold chain etc.



Features:



1. Combined panels with camlocks.

2.  Panel density is 42KG, can be used for temperature -45℃ to over 5 ℃.

3. All panels with tongue-and-groove,very easy to intall according to installtion drawing.

4. We can design rounded corner inside cold room if needed. Can design cold room to hide floor and ceiling

5  All doors have fabricated heaters inside, doors fabricated rubbles all around to ensure sealing property.

6. Door option fittings: view window, kick plate, alarm, air curtains, PVC curtains, LED light, controllers etc.

7. The cold room panel with the core of PU, is prefabricated in the factory with two pre-coated steel sheets.



Description



1. Materials - All kinds of  materials of coldroom for your referance. Generally, stainless steel coldroom often used for 5 star hotel. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.



Detail Standard Face plate According to GB/T23932-2009 double skin metal faced insulating panels for builing
According to JB/T6527-2006 The sandwich panels use for prefab cold room
Metal steel face plate (exterior +interior) Metal steel plate thickness PU Thickness (mm)
50 75 100 120 150 200
Colorbond steel + Colorbond steel 0.4-0.8
Salinized steel + Salinized steel 0.4-1.0
Stainless steel +Stainless steel 0.5-2.0
Aluminum steel + Aluminum steel 0.4-2.0
Colorbond steel + Stainless steel Customized
Colorbond steel + Salinized steel Customized
Colorbond steel + Galvanized steel Customized
Colorbond steel + Aluminum steel Customized
Bare PU panel
Customized Customized

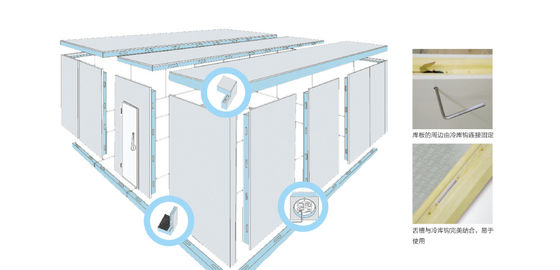

2. Structure - Combined Cold room panels piece by piece according to intallation drawing. We use high quality, top grade and perfect appearance to show the unique features of Coldroom, with the high density metal panel and camlock, can use under 150 kg tension.





Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage 0



3.  Panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃



Panel Thickness MM 50 75 100 125 150 200
Heat Conductivity W(M.K) 0.27 0.24 0.18 0.17 0.16 0.14
Working Temperature ≥5℃ ≥-5℃ ≥-25℃ ≥-30℃ ≥-35℃ ≥-45℃
Limiting Temperature ≥-5℃ ≥-10℃ ≥-30℃ ≥-35℃ ≥-40℃ ≥-50℃





4. Corner type - we can supply curve corner and right corner cold rooms.



- Curver corner :

It is environmental protection and clean. Higher standard and better concept are adopted in CNKOLD the design, production and installation. We use high quality, top grade and perfect appearance to show the unique features of intergrated coldroom.

- Right angle :
We use high quality, top grade and perfect appearance to show the unique features of Coldroom, with the high density metal panel and camlock, can use under 150 kg tension.



5. Floor type - Walk in type floor is installed on the ground directly. The recessed type, generally the floor panel will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare panels, to enhance the hardness of the floor and allow forklift drive inside.

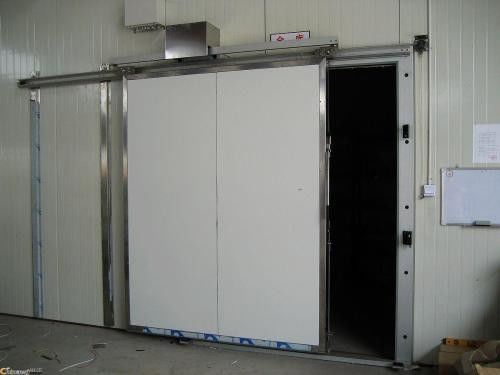

6. Door type - Gennerally, we will offer swing (hinged) or sliding door for coldrrom as your request. If you have special request, we can customize accordingly.



Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage 1





7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.



Storage product Tempreture range
Processing room 10℃
Fruit, vegetable, dry food beverage 0C~-5
Medicine, cake, pastry, chemical material 0C~-5
Ice storage, ice cream -5~-10
Meat, seafood frozen, cold kitchen -18~-25
Deep freezer -25C~-35





8. Refrigeration system matched - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.

Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage 2



9. Installation

1). Installing by the user: we will test and install coldroom before shipping, we will supply all necessary spare parts, operation manual and drawings to guide the installation.

2). We can send our engineer to assist the installation and provide online technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.

10. Warranty


1) We supply 12 months warranty after delivery.

2) Any complaints and problems, will be replied within 24 hours by our professional after-sales department.

4) Within warranty period, we will provide spare parts replacement  for free.

5)  We will charge at market price for spare parts when beyond guarantee period



11. Cooperative partners



The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.

Walk In Cool Room White Colorbond Stainless Galvanized sheet Cold Room For Fish Storage 3



13. Oasis certificate:



- QS Industrial production license

- CE Certificate (Coldroom panel & door)

- B1 (GB/T 8624) Fire inspection report

- B2 (GB/T 8624) Fire inspection report

- SGS test report (single material)

- SGS test report (composite material)



13. Coldroom inquiry model- Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.



Cold room size (L x W x H) Food &Temperature Door type Cold room material Refrigeration system type
2x3x2.6m Fruit, +4C degree Hinged door 0.8mm stainless steel Air-cooled
3x4x2.7m Frozen meat, -20C degree Sliding door 0.7mm colorbond Water-cooled
5x6x2.7m Seafood, -20C degree Sliding door 0.6mm aluminum Air-cooled
6x7x2.8m beverage, +2C degree Hinged door 0.8mm galvanized sheet Air-cooled





Our strengths:



1. Focus on refrigeration equipment  more than 18 years. We make our products by heart.

2. Strong R&D department make sure reasonable design and excellent quality.

3. We have engineers and technician from Desmon, they have rich experience on the Panel

5. 24 hours online service.

6. High efficiency team work full of love & reponsibility.



 Should you have any question, feel free to contact.You are all welcome at any time.
