Customized Height Vegetable Cold Storage Recessed Frozen Meat Commercial Cold Rooms 3*5*2.6M

Fresh Vegetable Cool Rooms, Frozen Meat Fish Fresh Coldroom Solutions , Refrigeration System Solution For Coldroom

Professional coldroom panel and system solutions,our coldroom panels are made of different materials with advanced equipments and leading technology of the industry. Our comprehensive products have absolute advantages, including performance,environmental protection, aesthetics, competitive price etc.

Features:

1. The panel density is 42KG.

2. All panels fabricated camlocks, with tongue-and-groove,very easy to intall according to installtion drawing.

3. Rounded corner inside cold room if needed. Can design cold room to hide floor and ceiling

4. To avoid door frozen when working, all doors have fabricated heaters inside.

5. Doors fabricated rubbles all around to ensure sealing property.

6. The doors are self-closing type.

7. Light weight, high strength, to meet the demand of outside loading.

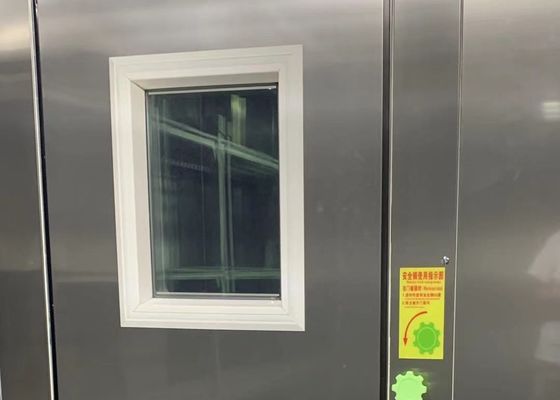

8. View window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc are optional

9. Can be used for temperature -45℃ to over 5 ℃

Description

1. Cold Room Materials - To meet customer's need, we have all kinds of  materials coldroom for your referance. Generally, stainless steel  and white color bond cold rooms are most popular. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.

2. Cold Room Structure - Combination cold rooms are combined piece by piece according to intallation drawing.It's very easy to install by yourself. Standard width is 1160mm, height can be from 2000mm to 8000mm, moreover, all sizes panels can be customized as your specical request. With the high density metal panel and camlock, can use under 150 kg tension.

3. Cool room panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃. Different thickness panel, the temperature using range is different.

4. Corner type - Of course, right angle corner is common that we can supply . If needed, we have curved corner design. This type is environmental protection, beautiful and easy to clean.

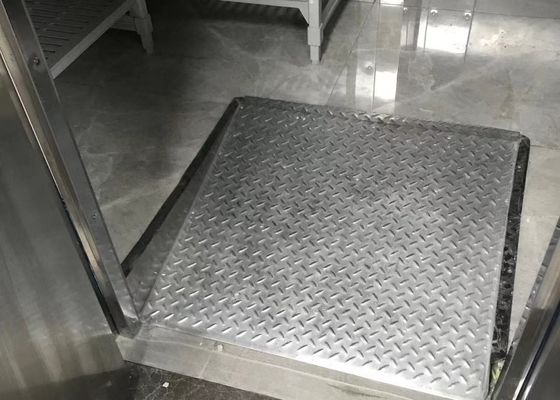

5. Floor type - The coldroom floor have two type according to request. The Walk-in type floor is installed on the ground directly, the panel interior steel request thicker than wall and ceiling, like 1.2mm thickness stainless steel checker. The recessed type, generally will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare PU panels, to enhance the hardness of the floor and allow forklift drive inside.

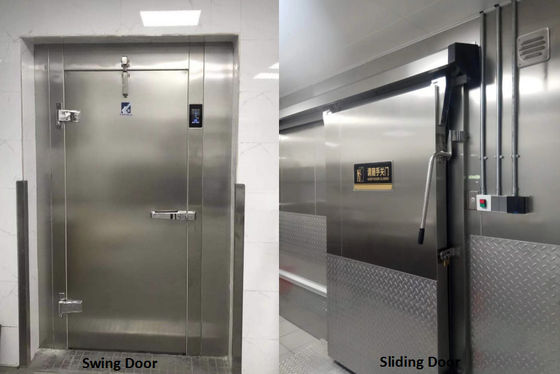

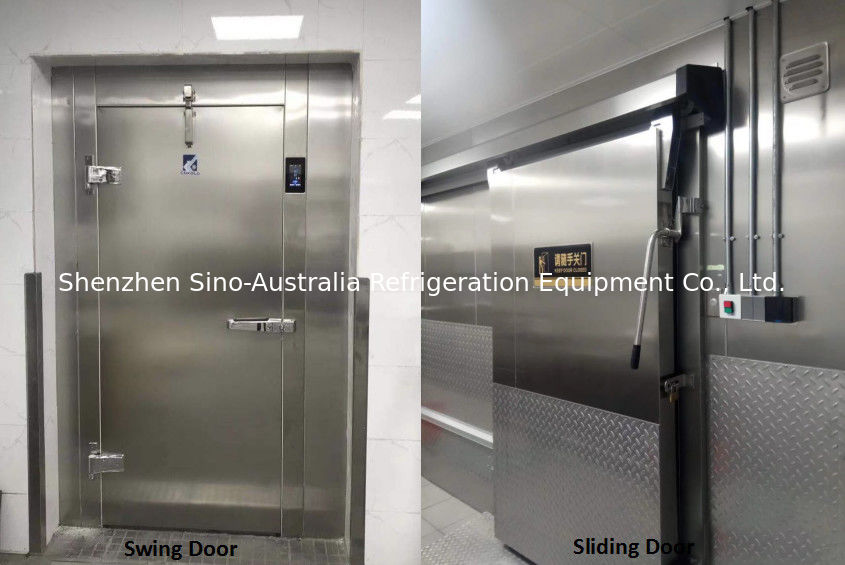

6. Doors - Gennerally, we will offer swing (hinged) or sliding door for coldrrom as your request. If you have special request, we can customize accordingly.

7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.

8. Refrigeration system - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.

9. Cooperative partners -The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.

10. Certificate - Our high quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.

Our strengths:

1. Focus on refrigeration system solution more than 18 years.

2. Strong R&D department ensure reasonable design and excellent quality.

3. We have experienced engineers and technician team to help you install, and after-sale service.

4. 24 hours online service.

5. High efficiency team work full of love & reponsibility.

Should you have any question, feel free to contact. You are all welcome at any time.
