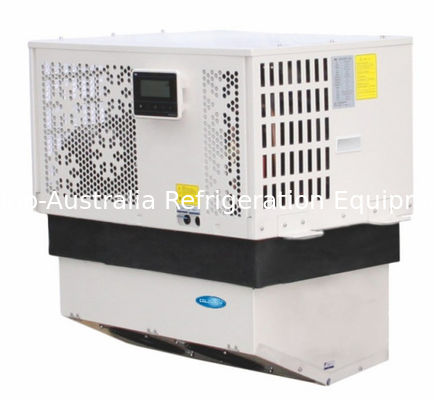

Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit

Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit

  • Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit
  • Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit
  • Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit
  • Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit
Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit
Product Details:
Place of Origin: China
Brand Name: Coldmach
Certification: CE / CCC
Model Number: CM-SAL010QYP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: wooden case
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 100pcs per weeks
Contact Now
Detailed Product Description
Cover: Anti-corrosion Temperature: -23℃ To 10℃
Color: White Power Supply: 220V/1Ph/50Hz, 380/3Ph/50Hz,60Hz Optional
Condition: Brand New Application: Small Coolroom
High Light:

R404a Drop In Refrigeration Unit

,

Roof In Monoblock Refrigeration Unit

,

R404a portable refrigeration unit

Roof-In Monoblock Refrigeration Small Portable Coldroom Units For Portable High And Medium Temp Samll Cold Storage



General information



All in one design, side in type installation,only need to reserve a corresponding size window at the side plate of the cold room, then gently push the machine in, switch on to start up. Widely used in medical, catering, fresh distribution and other small cold room which space is restricted.



Advantages and Features



1. Temperature range: ambient temperature:-15℃~+48℃, room temperature: -18℃~+10℃;



2. Application: Suitable for medical, catering, cold chain, food, dairy and other fields of fresh keeping and cold storage;



3. Compact structure, easy to install,only need to reserve corresponding size on the side plate of the cold room, the installation could be done within 20 minutes;



4. Electronic expansion valve with fuzzy control : high refrigeration efficiency, fast cooling speed.



5. Hot gas defrosting on demand: High efficiency and energy saving, 3 to 5 minutes to complete the defrosting, compare with electrical heater, energy saving more than 80%;



6. Intelligent control system, start up to running, no need of testing.





Specifications

Model CM-SAL010QYP CM-SAL020QYP CM-SAL030QYP
Cooling Capacity Room Temp (℃) -23 W 775 1628 2364
-18 W 930 1953 2790
-10 W 1221 2564 3663
0 W 1790 3759 5370
5 W 2110 4431 6330
10 W 2420 5082 7260
Norminal Power W 1255 2005 2948
Room Temp. Range -23℃ to 10℃
Power Supply   220V~/50Hz 380V/3N ~50Hz 220V~/50Hz
Refrigerant   R404a
Compressor Type   Rotary Compressor (With Liquid Injection)
Oty PCS 1 1 1
Power W 1063 1730 2398
Condenser Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 1 1
Power W 85 170 85x2
Evaporator Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 1 1
Power W 68 85 85x2
Dimensions (LXDXH) mm 500x769x659 607x884x819 858x884x829
Net Weight kg 67 125 140





Roof-in Monoblock Unit for small Cold Storage,Freezer Room,Chiller Room,1HP / 2HP /3HP

Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit 0

Roof In Portable Refrigeration Unit R404a Drop In Refrigeration Unit 1



General information

All in one design, top in type installation,only need to reserve a corresponding size window at the side plate of the cold room, then gently push the machine in, switch on to start up. Widely used in medical,catering,fresh distribution and other small cold room which space is restricted.



Advantages and Features



1.Temperature range: ambient temperature:-15℃~+48℃,room temperature: -18℃~+10℃;



2. Application: Suitable for medical, catering, cold chain, food, dairy and other fields of fresh keeping and cold storage;



3. Compact structure, easy to install,only need to reserve corresponding size on the side plate of the cold room, the installation could be done within 20 minutes;



4. Electronic expansion valve with fuzzy control : Refrigeration efficiency is high, the cooling speed is fast;



5. Hot gas defrosting on demand: High efficiency and energy saving, 3 to 5 minutes to complete the defrosting, compare with electrical heater, energy saving more than 80%;



6. Intelligent control system, start up to running, no need of testing.



Specifications



Model CM-TAM010QYP CM-TAM020QYP CM-TAM030QYP
Cooling Capacity Room Temp (℃) -25 W _ 2772 3162
-23 W _ 3187 3471
-20 W 12 3448 3932
-15 W 2026 4191 4781
-10 W 2497 5104 5822
-5 W 3027 6115 6976
Norminal Power W 1153 2106 2734
Room Temp. Range -23℃ to 10℃
Power Supply   220V~/50Hz 380V/3N ~50Hz 220V~/50Hz
Refrigerant   R404a
Compressor Type   Rotary Compressor (With Liquid Injection)
Oty PCS 1 1 1
Power W 1000 1800 2300
Condenser Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 1 1
Power W 85 170 230
Evaporator Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 2 3
Power W 68 68x2 68x3
Dimensions (LXDXH) mm 790x510x748 890x561x810 1080x608x783
Net Weight kg 69 96 121
