ISO9001 Walk In Coldroom

ISO9001 Walk In Coldroom

ISO9001 Walk In Coldroom
video
ISO9001 Walk In Coldroom
Product Details:
Place of Origin: China
Brand Name: Oasis brand
Certification: GB/T 19001-2006/ISO9001:2015
Model Number: High Temp/ Low Temp
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: carton
Delivery Time: 5-6 weeks
Payment Terms: T/T
Supply Ability: 100 set per week
Contact Now
Detailed Product Description
Material: Stainless Steel,colorbond,aluminum,checker Plate Steel Thickness: 0.4mm, 0.6mm,0.8mm,1.0mm,1.5mm Etc
Panel Thickness: 100mm,150mm,200mm Corner Type: Right Angle Or Curved Corner
Floor Type: Recessed Type Or Right Angle Dimension: Customized
Function: Insulation And Refrigeration After-sales Service: Online Support,site Checking If Needed
Power: 220/380V Density: 42KG/M3
Condition: Oasis Brand New Temperature: High, Medium And Low Temperature
High Light:

2M Height Modular Freezer Room

,

ISO9001 Walk In Coldroom

,

ISO9001 Modular Freezer Room

Modular Freezer Room, Combined Walk In Cold Room, Stainless Steel Or White Colorbond Cold Storage For Fish,Meat



Oasis brand kit set coldroom refrigeration solutions are distributed exclusively all over the world. These premium modular, polyurethane insulation cool rooms provide a simple, quick and flexible cold chiller and freezer room refrigeration system solution, and can be customized to suit any modular size requirement. These cold stores are suitable for all kinds of industries, including seafood chiller/freezer, veg. and fruit chiller, kitchen chiller and freezer, beverage chiller etc.



Features:



1. Can customize all kinds of cold rooms.

2. Panel density is 42KG, can be used for temperature -45℃ to over 5 ℃.

3. All panels fabricated camlocks, with tongue-and-groove,very easy to intall according to installtion drawing.

4. Rounded corner inside cold room if needed. Can design cold room to hide floor and ceiling

5. To avoid door frozen when working, all doors have fabricated heaters inside.

6. Doors fabricated rubbles all around to ensure sealing property.

7. Doors fabricated rubbles to ensure sealing property.

8. Light weight, high strength, to meet the demand of outside loading.

9  Door option fcomponents: view window, kick plate, alarm, air curtais, PVC curtains, LED light, controllers etc.

10. Panels with core of PU, is prefabricated in the factory with two pre-coated steel sheets.





Description

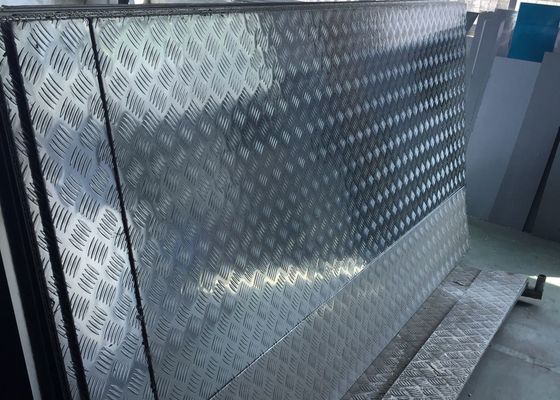

1. Cold Room Materials - We have all kinds of materials coldroom for your referance. Generally, stainless steel and white color bond cold rooms are most popular. Salt steel is special type for coastal area, having anti-corruption design, and cheaper than stainless steel when the budget is limited. Colorbond materials is common type, widely used and competitive.



Detail Standard Face plate According to GB/T23932-2009 double skin metal faced insulating panels for builing
According to JB/T6527-2006 The sandwich panels use for prefab cold room
Metal steel face plate (exterior +interior) Metal steel plate thickness PU Thickness (mm)
50 75 100 120 150 200
Colorbond steel + Colorbond steel 0.4-0.8
Salinized steel + Salinized steel 0.4-1.0
Stainless steel +Stainless steel 0.5-2.0
Aluminum steel + Aluminum steel 0.4-2.0
Colorbond steel + Stainless steel Customized
Colorbond steel + Salinized steel Customized
Colorbond steel + Galvanized steel Customized
Colorbond steel + Aluminum steel Customized
Bare PU panel
Customized Customized





2. Cold Room Structure - Cold rooms are combined piece by piece according to intallation drawing. All panels fabricated camlocks, with tongue-and-groove joint, it's very easy to install according to drawing supplied.



Standard width is 1160mm, height can be from 2000mm to 8000mm, moreover, all sizes panels can be customized as your specical request. With the high density metal panel and camlock, can use under 150 kg tension.





ISO9001 Walk In Coldroom 0



3. Cool room panel thickness - Panel thickness and working temperature,based on ambient temperature 35℃.

Different thickness panel, the temperature using range is different.



Panel Thickness MM 50 75 100 125 150 200
Heat Conductivity W(M.K) 0.27 0.24 0.18 0.17 0.16 0.14
Working Temperature ≥5℃ ≥-5℃ ≥-25℃ ≥-30℃ ≥-35℃ ≥-45℃
Limiting Temperature ≥-5℃ ≥-10℃ ≥-30℃ ≥-35℃ ≥-40℃ ≥-50℃





4. Corner type - Right angle corner is common and widely used. If needed, we have curved corner design. This type is environmental protection, beautiful and easy to clean, especially for 5-star hotel like Marriott,Hyatt,Hilton etc.



5. Floor type - Coldroom floor have two types according to site request. The Walk-in type floor is installed on the ground directly, the panel interior steel request thicker than wall and ceiling, like 1.2mm thickness stainless steel checker. The recessed type, generally will recess 200mm (or 150mm...) under the ground, then backfill concrete and tile on the bare PU panels, to enhance the hardness of the floor and allow forklift drive inside.



6. Doors - Gennerally, we will offer swing (hinged) or sliding door for each cold room. Our standard size are 860x1900mm of swing door and 1000x1900mm of sliding door.  If you have special request, we can customize accordingly.



7. Application - We can supply high temperature (chiller) coldroom, low temperature (Freezer) coldroom and blast freezer as your request. Such as Beverage Chiller, Meat Chiller, Seafood Chiller, Vegetable Chiller,Fruit Chiller,Wast Chiller, Meat Freezer, Seafood Freezer,General Freezer,Kitchen Freezer,Kit Freezer.



Storage product Tempreture range
Processing room 10℃
Fruit, vegetable, beverage 0C~-5
Medicine, cake, pastry, chemical material 0C~-5
Ice storage  -5~-10
Fish,Meat, seafood frozen, -18~-25
Deep freezer. -25C~-35





8. Refrigeration system supply - We can also supply refrigeration system to match different temperature coldroom. We have , Tecumseh,Copeland, Maneurop,Performer,Highly brand air-cooled / water-cooled system for your referance. Also, have our own brand Coldmach full set intelligent condensing unit, Monoblock unit etc.

ISO9001 Walk In Coldroom 1



9. Cooperative partners -The coldroom, freezer and chiller room and blast freezer room can be used for hotel,gastronomy, food production, staff restaurant, hospitals, cold chain logistics, ship ect. We cooperated with many company, like Marriott,Hyatt,Hilton,Renaissance Marriott,Courtyard,Crowne Plaza, Internaltion Hotels Group, Sofitel,Sheraton,,Wanda Group etc.

ISO9001 Walk In Coldroom 2







10. Certificate - High quality coldroom panels have passed quality inspection.We got ISO9001 Quality Certification, QS Industrial production license CE Certificate (Coldroom panel & door), Inspection Report,B1 (GB/T 8624) Fire inspection report,SGS test report. Here are certificates for your referance.



11. Coldroom inquiry model- Let us know coldroom size, storage what kind of product, temperature reuqest, door type, material request and refrigeration system type. Then we can quickly send you offer accordingly.



Cold room size (L x W x H) Food &Temperature Door type Cold room material Refrigeration system type
3x3x2.6m Fruit, +2C degree Hinged door 0.8mm stainless steel Air-cooled
3x4x2.7m Frozen meat, -18C degree Swing door 0.8mm colorbond Air-cooled
4x4x2.7m Seafood, -24C degree Sliding door 0.6mm aluminum Water-cooled
4x5x2.8m beverage, +2C degree Sliding door 0.8mm galvanized sheet Water-cooled





Our strengths:



1. Focus on refrigeration system solution more than 18 years years.

2. Strong R&D department ensure reasonable design and excellent quality.

3. We have experienced engineers and technician team to help you install, and after-sale service.

4. 24 hours online service.

5. High efficiency team work full of love & reponsibility.



Should you have any question, feel free to contact. You are all welcome at any time.
